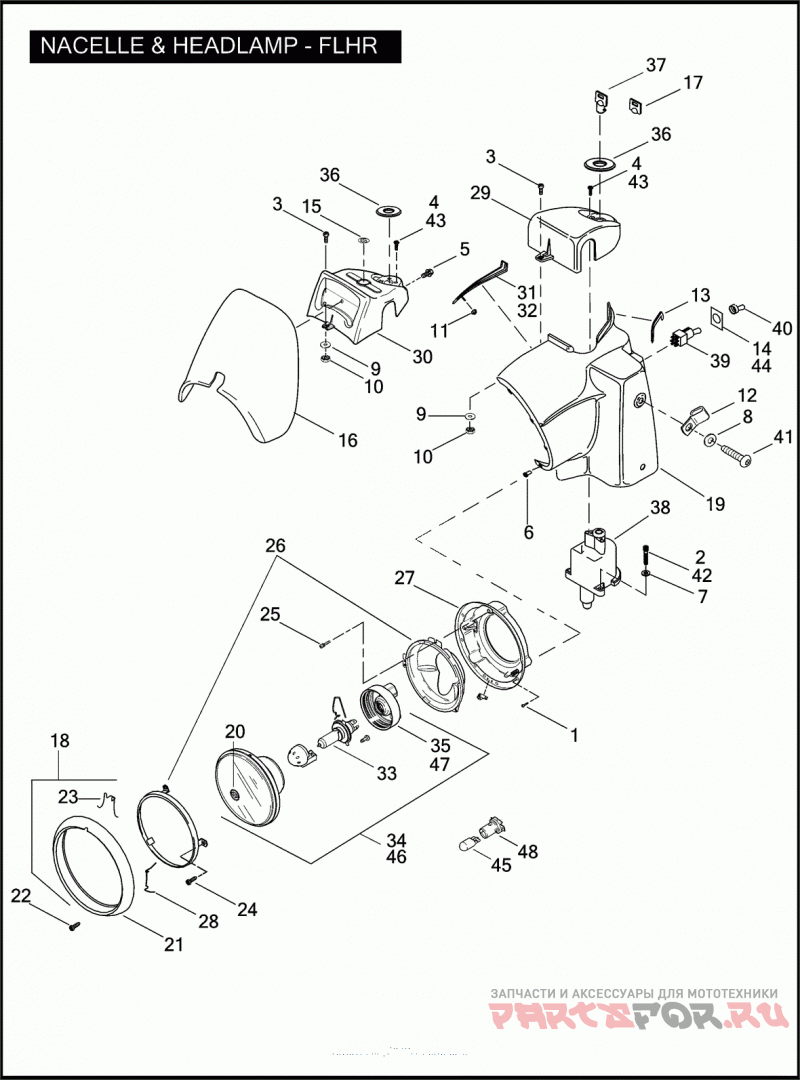

NACELLE & HEADLAMP - FLHR

Harley Davidson FLHRC 1FR4 ROAD KING CLASSIC (2007)

Harley Davidson
#oem кодцена
1
787
Винт
2
2647B
SCREW NO. 10-24 X 3/4 SOCKET HD., SELF-LOCKING
3
2806
SCREW NO. 6-32 X 3/4 POZIDRIV PAN HD. (GRADE 2)
4
2933
SCREW NO. 10-24 X 1/2 FLAT HD.
6
5210
WELL NUT
7
6150W
WASHER 3/16 X 3/8 X 1/16
9
6789
WASHER NO. 6 X 7/8 X .05
10
7889
NUT NO. 6-32 KEPS
11
7888A
NUT NO. 6-32 FLANGE HD.
13
11489
Планка
14
14019-83A
LABEL ON - OFF
17
61081-92
COVER KEY-HEAD, SET
19
67674-03B
NACELLE right
19
67682-03B
NACELLE left
20
67668-05
MEDALLION 7 INCH BULB (AUSTRALIA, ENGLAND, HDI, JAPAN)
21
67712-83B
DOOR chrome
22
67718-60A
SCREW NO. 8-14 X 1/2 PHILLIPS HD. SELF-TAPPING
24
67721-48
SCREW HEADLAMP RETAINER RING
25
67724-71
Регулировочный Винт
26
67001-08
RETAINING RING KIT HEADLAMP, W/ 67721-48
27
67728-02A
BUCKET ASSEMBLY
28
67778-60A
SPRING TOP DOOR, HEADLAMP
29
67866-03
COVER HANDLEBAR
31
67868-03
TRIM NACELLE
33
68329-03
BULB
34
68342-05A
LENS ASSEMBLY 7 IN, WITH 67668-05, 68329-03 AND 68390-05 (DOMESTIC)
35
68390-05
BOOT BULB
36
71310-94
TRIM ASSEMBLY FORK LOCK
38
71540-94B
FORK LOCK (SPECIFY KEY NUMBER)
38
53571-03A
LOCKSET COMPLETE, W/ KEYS, IGNITION SWITCH, LOCK ASSEMBLY & FORK LOCK
39
71522-96
SWITCH SPOTLAMP & ACCESSORIES
40
74408-89A
чехол
42
2934
SCREW NO. 10-24 X 3/4 SOCKET HD.
43
2935A
SCREW (AUSTRAILIA, ENGLAND, HDI, JAPAN)
44
15346-98A
LABEL spotlamp, right (HDI)
44
14019-83A
LABEL ON - OFF, LEFT (AUSTRAILIA, ENGLAND, HDI, JAPAN)
45
53438-92
BULB POSITION LAMP (AUSTRAILIA, ENGLAND, HDI, JAPAN)
46
68344-05A
REFLECTOR ASSEMBLY LEFT DIP (AUSTRALIA, ENGLAND, JAPAN)
46
68345-05A
REFLECTOR ASSEMBLY RIGHT DIP (HDI, ASIA-PACIFIC)
46
68359-05
JUMPER HARNESS POSITION BULB (NOT ILLUSTRATED) (AUSTRAILIA, ENGLAND, HDI, JAPAN)
47
68380-05
BOOT BULB (AUSTRAILIA, ENGLAND, HDI, JAPAN)
48
68653-05
SOCKET POSITION LAMP (AUSTRAILIA, ENGLAND, HDI, JAPAN)
