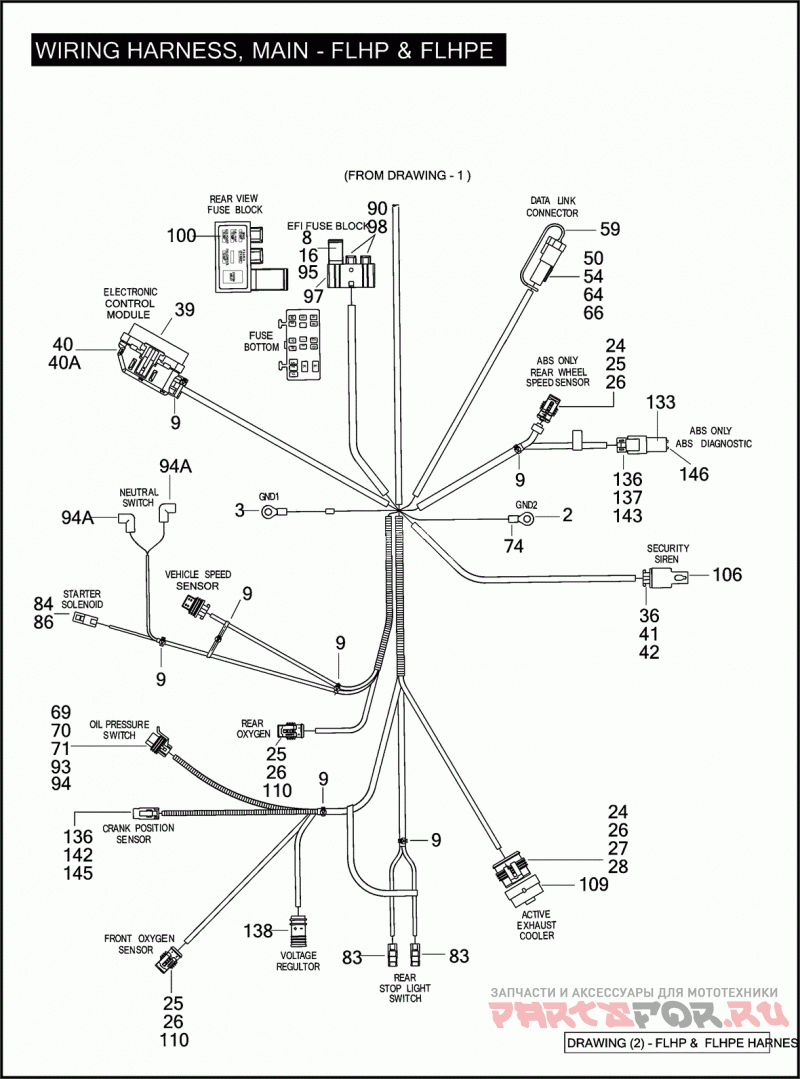

WIRING HARNESS, MAIN - FLHP & FLHPE (CONTINUED)

Harley Davidson FLHPE 1FTM ROAD KING POLICE (2007)

Harley Davidson
#oem кодцена
70260-07
WIRING HARNESS MAIN - NON-ABS
70268-07
WIRING HARNESS MAIN - ABS
41
72094-06
SOCKET TERMINAL #18 AWG, FEMALE
42
72096-06
WIRE SEAL #18 AWG (YELLOW)
43
72098-06
HOUSING 2-WAY, FEMALE
44
72099-06
WIRE SEAL #16-18 AWG (BLUE)
45
72100-04
HOUSING 1-WAY, MALE (GRAY)
46
72104-94BK
PIN HOUSING SEALED, 4-WAY (BLACK)
47
72110-06
TERMINAL #16-18 AWG, FEMALE
48
72111-06
SECONDARY LOCK 2-WAY, FEMALE (GRAY)
49
72112-94BK
SOCKET HOUSING SEALED, 2-WAY (BLACK)
50
72124-94GY
PIN HOUSING SEALED, 4-WAY PIN (GRAY)
51
72130-04
SOCKET HOUSING 12-WAY (BLACK)
52
72135-06
SECONDARY LOCK 4-WAY, FEMALE (GRAY)
53
72139-94GY
SOCKET HOUSING SEALED, 12-WAY (GRAY)
54
72144-94
PIN LOCK SECONDARY, 4-WAY
55
72145-06
SECONDARY LOCK 2-WAY, FEMALE (BLUE)
56
72149-94
PIN LOCK SECONDARY, 12-WAY
57
72152-94
SOCKET LOCK SECONDARY, 2-WAY
58
72159-94
PIN LOCK SECONDARY, 12-WAY
59
72164-94A
WEATHER PLUG 4-WAY-PIN
60
72168-07
SOCKET TERMINAL #18-20 AWG
61
72169-07
PIN TERMINAL #16-20 AWG
62
72179-94
INTERNAL SEAL
63
72189-04
SEAL PIN
64
72190-94
PIN TERMINAL #16-18 AWG
65
72191-94
SOCKET TERMINAL #16-18 AWG
66
72195-94
SEAL PIN 4-WAY
67
72199-94
CONNECTOR ANCHOR
68
72204-04
FUSE/RELAY BLOCK BUSSED
69
72213-94
SOCKET TERMINAL #16-20 AWG
70
72214-94
CABLE SEAL
71
72230-98
SOCKET HOUSING SEALED, 3-WAY
72
72231-98
SECONDARY LOCK 3-WAY SOCKET
73
72232-96
SEAL PLUG
74
72249-94
HEAT SHRINK TUBING .415 X 1 (BLACK)
75
72260-04
HOUSING 1-WAY, FEMALE (GRAY)
76
72263-95
SOCKET HOUSING PTS, 4-WAY (BLACK)
77
72265-04
SECONDARY LOCK BUSSED FUSEBLOCK
78
72272-07
SOCKET TERMINAL #14-16 AWG
79
72279-04
TERMINAL FEMALE, #14-16 AWG, TANGLESS
80
72281-93
CONNECTOR HOUSING 18-WAY
81
72286-04
BUSS TERMINAL FEMALE, TANGLESS #12-14 AWG
82
72289-04
TERMINAL FEMALE, #10-12 AWG
83
72290-94
TERMINAL 1/4 IN. FEMALE
84
72291-94
TERMINAL #14-16 AWG
85
72292-94
TERMINAL #12 AWG
86
72295-94
CONNECTOR STARTER
87
72309-04
TERMINAL FEMALE #16-18 AWG
88
72325-97
RELAY HOLDER
89
72327-03A
CONNECTOR 3-way
90
72330-95
FUSE 15 AMP (BLUE)
91
72345-02
FUSE 20 AMP, MINI BLADE (YELLOW)
92
72359-05
TERMINAL FEMALE #10-12 AWG
93
72400-99
CONNECTOR 4-WAY
94
72403-99
SECONDARY LOCK 4-WAY
94A
72405-98BK
PUSH ON 90 CONNECTOR
95
72427-00
TERMINAL .187 IN. FEMALE, #14-18 AWG
96
72429-00
TERMINAL .25 IN. #12-16 AWG
97
72431-00
FUSE BLOCK MOUNTING, TYPE 1
98
72434-00
JR TERMINAL POWER TIMER, #14-16 AWG
99
72462-00
FUSE MINI-TYPE10 AMP
100
72468-07
DECAL FUSEBLOCK COVER
101
72473-07
SEAL PIN
102
72487-07BK
SOCKET HOUSING 12-WAY (BLACK)
103
72489-07GY
SOCKET HOUSING 12-WAY (GRAY)
104
72511-07BK
PIN HOUSING 3-WAY (BLACK)
105
72512-07BK
SOCKET HOUSING 3-WAY (BLACK)
106
72516-01
DUST CAP SIREN CONNECTOR
107
72533-06
DUST CAP CONNECTOR, 2-PIN
108
72537-07
COVER ASSEMBLY FUSE BLOCK W/ GRAPHICS
109
72553-07
DUST CAP CONNECTOR, 5-PIN
110
72611-07
SOCKET TERMINAL #16-20 AWG (GOLD)
111
72713-05
HOUSING ASSEMBLY 25-WAY FEMALE (BLACK)
112
72714-05
TERMINAL FEMALE, #20-22 AWG
113
72715-05
WIRE SEAL #20-22 AWG (GRAY)
114
72716-05
CAVITY PLUG (WHITE)
115
72717-05
TERMINAL FEMALE, #12-14 AWG
116
72718-05
WIRE SEAL #12-14 AWG
117
72719-05
COVER 25-WAY FEMALE HOUSING
118
72914-01BK
SOCKET HOUSING 4-WAY (BLACK)
119
72991-01
SOCKET TERMINAL #18-22 AWG
120
73102-96BK
PIN HOUSING 2 PLACE (BLACK)
121
73102-96WE
PIN HOUSING 2 PLACE (WHITE)
122
73106-96BK
PIN HOUSING 6 PLACE (BLACK)
123
73108-96BK
PIN HOUSING 8 PLACE (BLACK)
124
73153-96BK
SOCKET HOUSING 3-WAY
125
73190-96
PIN TERMINAL #16-20 AWG
126
73191-96
SOCKET TERMINAL
127
73198-96
CONNECTOR ANCHOR
128
73301-04
PIN HOUSING FEMALE 2-WAY
128A
73302-04
Крышка
129
73303-04
SECONDARY LOCK 2-WAY FEMALE
130
73304-04
TERMINAL FEMALE #10 AWG
131
73305-04
WIRE SEAL #10 AWG (BLUE)
132
74102-98BK
PIN HOUSING 2-WAY (BLACK)
133
74104-98BK
PIN HOUSING 4-WAY PIN (2) (BLACK)
134
74106-98BK
PIN HOUSING 6-WAY PIN (BLACK)
135
74108-98BK
PIN HOUSING 8-WAY PIN (BLACK)
136
74112-98BK
SOCKET HOUSING 2-WAY (BLACK)
137
74114-98BK
SOCKET HOUSING
138
74115-06
DC LEAD ASSEMBLY 4-WAY (BLACK)
139
74142-98
PIN LOCK 2-WAY
140
74146-98
SECONDARY LOCK PIN 6-WAY
141
74148-98
SECONDARY LOCK PIN 8-WAY SOCKET
142
74152-98
SECONDARY LOCK 2-WAY SOCKET
143
74154-98
LOCK 4-WAY SOCKET
144
74190-98
PIN TERMINAL #16-20 AWG
145
74191-98
TERMINAL SOCKET
146
74195-98
SEAL PIN
147
74196-04
TERMINAL SOCKET #2O AWG
148
74197-04
SECONDARY LOCK 12-WAY SOCKET
149
74413-93
BOOT SIREN AMPLIFIER CONNECTOR
150
76233-85
JACK MICROPHONE
