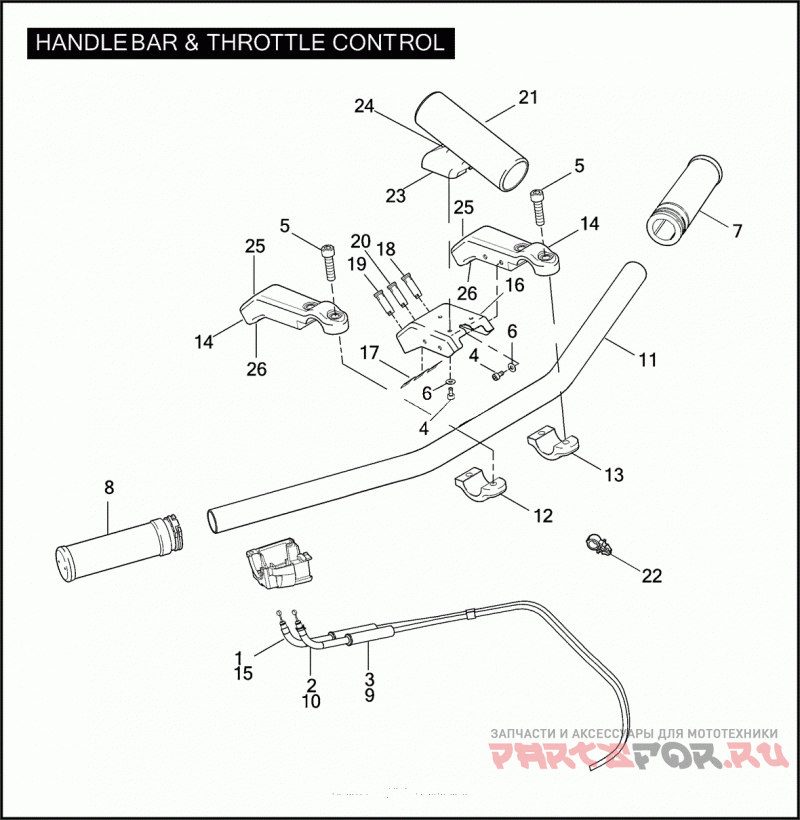

HANDLEBAR & THROTTLE CONTROL

Harley Davidson VRXSE 7RC7 CVO VR DESTROYER (2006)

Harley Davidson
#oem кодцена
1
11271
RETAINING RING IDLE CONTROL
2
11272
RETAINING RING THROTTLE CONTROL
3
38653-01
BOOT THROTTLE CABLE
4
4283M
SCREW M4 X 0.7 X 8 SOCKET HD.
5
4486M
SCREW M8 X 1.25 X 30 SOCKET HD.
6
6101
WASHER 17/64 X 27/64 X 1/16
7
56206-96
GRIP LEFT
8
56220-94A
GRIP & SLEEVE THROTTLE, RIGHT
9
56508-76
FERRULE CONTROL WIRE
10
56872-06
THROTTLE CONTROL W/ 11272
11
56919-06
Руль
12
56920-06
RISER HANDLEBAR, RIGHT
13
56921-06
RISER HANDLEBAR, LEFT
14
56922-06
CLAMP HANDLEBAR
15
56932-06
IDLE CONTROL W/ 11272
16
67413-06
BRACKET INSTRUMENT LIGHT
17
68608-83
PUSHNUT
18
68714-06
LIGHT OIL WARNING
19
68716-06
LIGHT TURN
20
68717-06
LIGHT NEUTRAL
21
69429-06
SHIFT LIGHT & BRACKET ASSEMBLY
22
70345-84
Седло
23
67414-06
BRACKET SHIFT LIGHT
24
8679
SCREW NO. 8-32 X 7/16, TORX BUTTON HD.
25
3934M
SCREW (NOT SHOWN)
26
7427M
NUT M10 X 1.5 FLANGE
