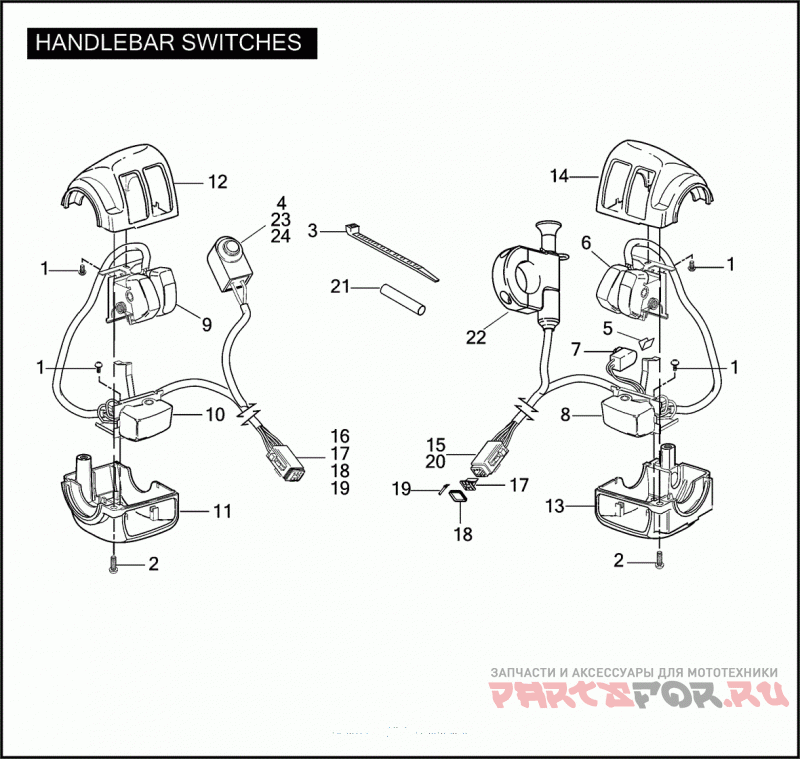

HANDLEBAR SWITCHES

Harley Davidson VRXSE 7RC7 CVO VR DESTROYER (2006)

Harley Davidson
#oem кодцена
1
2955
SCREW NO. 6-32 X 1/4 PHILLIPS PAN HD., W/LOCKWASHER
2
3658
SCREW NO. 10-24 X 1/2 TORX HD. (GRADE 5)
3
10006
CABLE STRAP AS REQUIRED
4
71620-08
SWITCH CLUTCH
5
71587-04
Зажим
6
71684-06A
SWITCH KIT ENGINE RUN/STOP/START, W/ 3 & 21
7
71621-08
STOPLAMP SWITCH KIT W/ 3 & 21
8
71770-06
SWITCH ASSEMBLY TACH MODE, W/ 3 & 21
9
71610-06
SWITCH ASSEMBLY AF & DATA ACQ, W/ 3 & 21
10
71609-06
SWITCH ASSEMBLY SHIFT, W/ 3 & 21
11
71568-96A
HOUSING LOWER, LEFT (BLACK)
12
71567-96
HOUSING UPPER, LEFT (BLACK)
13
71563-96
HOUSING LOWER, RIGHT (BLACK)
14
71564-96
HOUSING UPPER, RIGHT (BLACK)
15
72116-94BK
PLUG 6-WAY SOCKET, RIGHT (BLACK)
16
72116-94BK
PLUG 6-WAY SOCKET, LEFT (BLACK) (REPLACES GRAY CONNECTOR)
17
72156-94
SOCKET LOCK SECONDARY, 6-WAY
18
72176-94
FRONT SEAL 6-WAY PLUG
19
72191-94
TERMINAL SOCKET
20
72195-94
PIN SEAL
21
72266-94
HEAT SHRINK TUBE DUAL WALL, .3 X 2 INCH (AS REQUIRED)
23
46865-06
CLUTCH SWITCH SPRING CLIP (NOT ILLUSTRATED)
24
2594A
SCREW NO. 8-32 X 1/4 POZIDRIV PAN HD., W/LOCKWASHER (GRADE 2)
