FRONT BRAKE CONTROL для мотоциклов Harley Davidson VRXSE 7RC7 CVO VR DESTROYER (2006) (2006)

Москва и регионы России

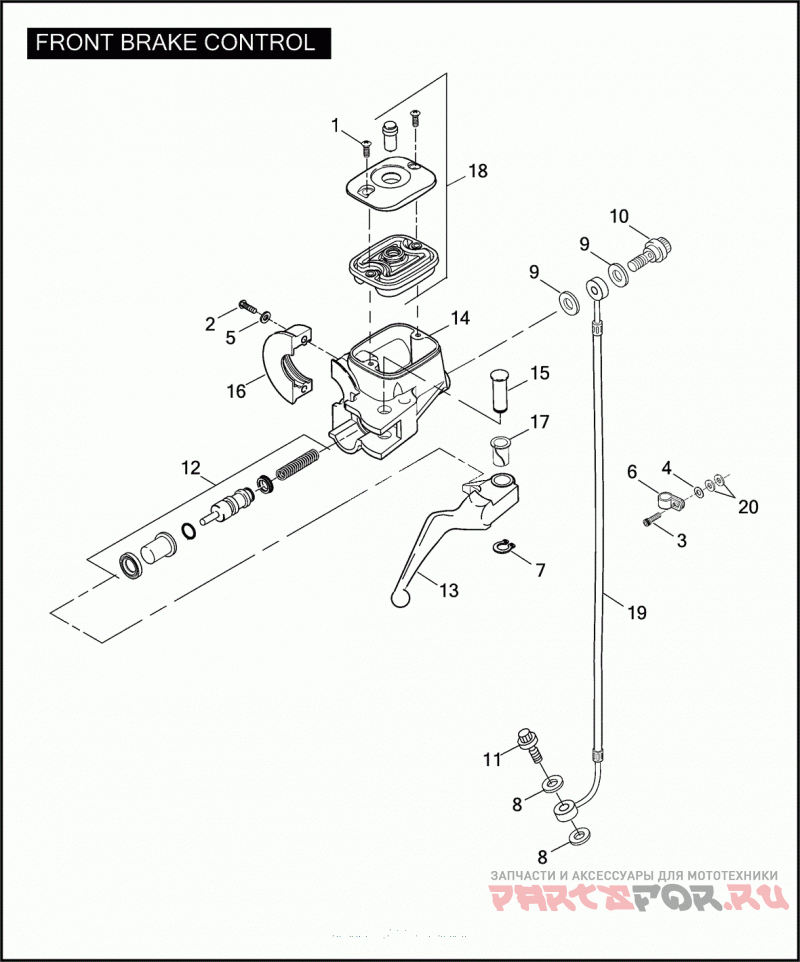

FRONT BRAKE CONTROL

Harley Davidson VRXSE 7RC7 CVO VR DESTROYER (2006)

FRONT BRAKE CONTROL

#

oem код

название

цена

1

SCREW NO. 8-32 X 5/16 POZIDRIV OVAL HD.

SCREW NO. 8-32 X 5/16 POZIDRIV OVAL HD.

2

SCREW 1/4-20 X 1-1/8 TORX BUTTON HD. (GRADE 5) (BLACK)

SCREW 1/4-20 X 1-1/8 TORX BUTTON HD. (GRADE 5) (BLACK)

3

SCREW 1/4-20 X 1 SOCKET HD., W/LOCKPATCH

SCREW 1/4-20 X 1 SOCKET HD., W/LOCKPATCH

4

WASHER 17/64 X 1 X 1/16

WASHER 17/64 X 1 X 1/16

5

WASHER 17/64 X 27/64 X 1/16

WASHER 17/64 X 27/64 X 1/16

6

Зажим

Зажим

7

Стопорное кольцо

Стопорное кольцо

8

Прокладка

Прокладка

9

Прокладка

Прокладка

10

Болт

Болт

11

Болт

Болт

12

REPAIR KIT MASTER CYLINDER (9/16 IN BORE)

REPAIR KIT MASTER CYLINDER (9/16 IN BORE)

13

HAND LEVER FRONT BRAKE CONTROL, W/ 45423-96

HAND LEVER FRONT BRAKE CONTROL, W/ 45423-96

14

MASTER CYLINDER 9/16 IN BORE

MASTER CYLINDER 9/16 IN BORE

15

PIVOT PIN

PIVOT PIN

16

CLAMP HANDLEBAR CONTROL

CLAMP HANDLEBAR CONTROL

17

BUSHING LEVER PIVOT

BUSHING LEVER PIVOT

18

MASTER CYLINDER COVER KIT WITH 2590, BAFFLE PLATE AND GASKET

MASTER CYLINDER COVER KIT WITH 2590, BAFFLE PLATE AND GASKET

19

BRAKE LINE FRONT

BRAKE LINE FRONT

20

Шайба

Шайба
