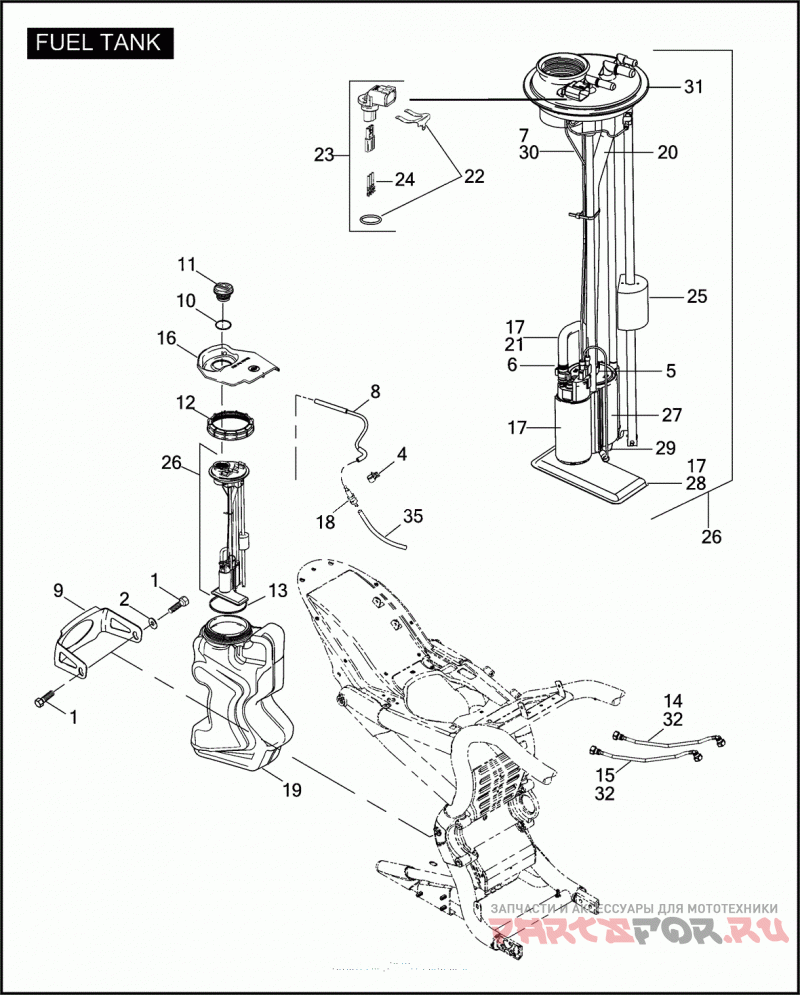

Топливный бак

Harley Davidson VRXSE 7RC7 CVO VR DESTROYER (2006)

Harley Davidson
#oem кодцена
1
3700MA
SCREW M10 X 1.5 X 30 SOCKET BUTTON HD.
2
6856M
Шайба М10
3
10039
CABLE STRAP FUEL PUMP CONNECTOR TO FRAME (NOT ILLUSTRATED)
4
10108
Зажим
5
10238
Зажим
6
10239
Зажим
7
11380
Уплотнительное кольцо
8
27378-01
TUBE ASSEMBLY TANK TO VAPOR VALVE
9
60966-01
BRACKET FUEL TANK
10
61109-85D
GASKET FILLER CAP
11
61274-92
FILLER CAP W/ 61109-85D
12
61329-01
LOCK RING FUEL MODULE
13
61498-01
SEAL FUEL MODULE
14
61504-01A
FUEL LINE PRESSURE (USE 61516-07)
15
61505-01A
FUEL LINE RETURN (USE 61516-07)
16
61828-01
BOOT FUEL FILLER
17
62109-01A
FUEL PUMP W/ 10239 & 62927-01
18
62150-85
VAPOR VALVE
19
62921-01
FUEL TANK ASSEMBLY
20
62926-01
HOSE FILTER TO FUEL OUTLET
21
62927-01
HOSE PUMP TO FILTER
22
72458-00
CLIP & O-RING KIT W/ 11380
23
72439-00B
CONNECTOR ASSEMBLY KIT W/ 72458-00
24
74191-98
Терминал
25
75122-01
SENDING UNIT FUEL GAUGE
26
75123-01B
FUEL MODULE ASSEMBLY W/ 4, 16, 19, 24, 26, 28, 29 & 30 (ORDER COMPONENTS SEPARATELY)
27
75169-01
FILTER PRESSURE SIDE
28
62109-01A
FUEL PUMP W/ 5, 20, & 27
29
75171-01
CARRIER FUEL PUMP/FILTER
30
75172-01A
ELECTRICAL HARNESS W/ 11380
31
75173-01A
FLANGE FUEL MODULE
32
61516-07
FUEL LINE KIT W/ 10065 & 61513-07
33
10065
CABLE STRAP (NOT ILLUSTRATED)
34
61513-07
CLIP (NOT ILLUSTRATED)
35
27138-90
HOSE 3/16 INCH I.D. (RUBBER) (10 FEET LENGTH) (CUT 13.75-14.00)
