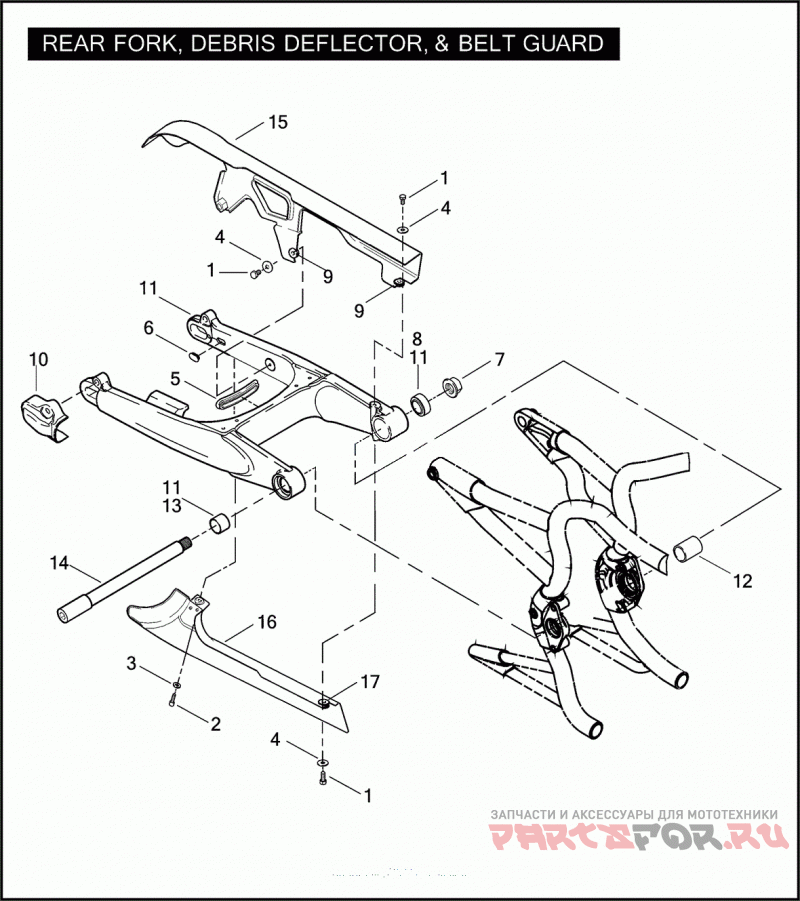

REAR FORK, DEBRIS DEFLECTOR, & BELT GUARD

Harley Davidson VRSCSE2 1PPG CVO V-ROD (2006)

REAR FORK, DEBRIS DEFLECTOR, & BELT GUARD

#

oem код

название

цена

1

SCREW M8 X 1.25 X 16 HEX HD.

SCREW M8 X 1.25 X 16 HEX HD.

2

Винт

Винт

3

WASHER 1/4 X 5/8 X 1/16

WASHER 1/4 X 5/8 X 1/16

4

WASHER M8 REGULAR

WASHER M8 REGULAR

5

PLUG LARGE

PLUG LARGE

6

PLUG SMALL

PLUG SMALL

7

LOCKNUT M20 X 2.5 FLANGE

LOCKNUT M20 X 2.5 FLANGE

8

Подшипник

Подшипник

9

Втулка

Втулка

10

COVER SWINGARM AXLE, RIGHT HAND

COVER SWINGARM AXLE, RIGHT HAND

10

COVER SWINGARM AXLE, LEFT HAND

COVER SWINGARM AXLE, LEFT HAND

11

SWINGARM ASSEMBLY W/ 9208 & 48389-01

SWINGARM ASSEMBLY W/ 9208 & 48389-01

12

SPACER LEFT

SPACER LEFT

13

BUSHING PIVOT - RIGHT

BUSHING PIVOT - RIGHT

14

PIVOT SHAFT ASSEMBLY

PIVOT SHAFT ASSEMBLY

15

BELT GUARD UPPER

BELT GUARD UPPER

16

BELT GUARD LOWER

BELT GUARD LOWER
