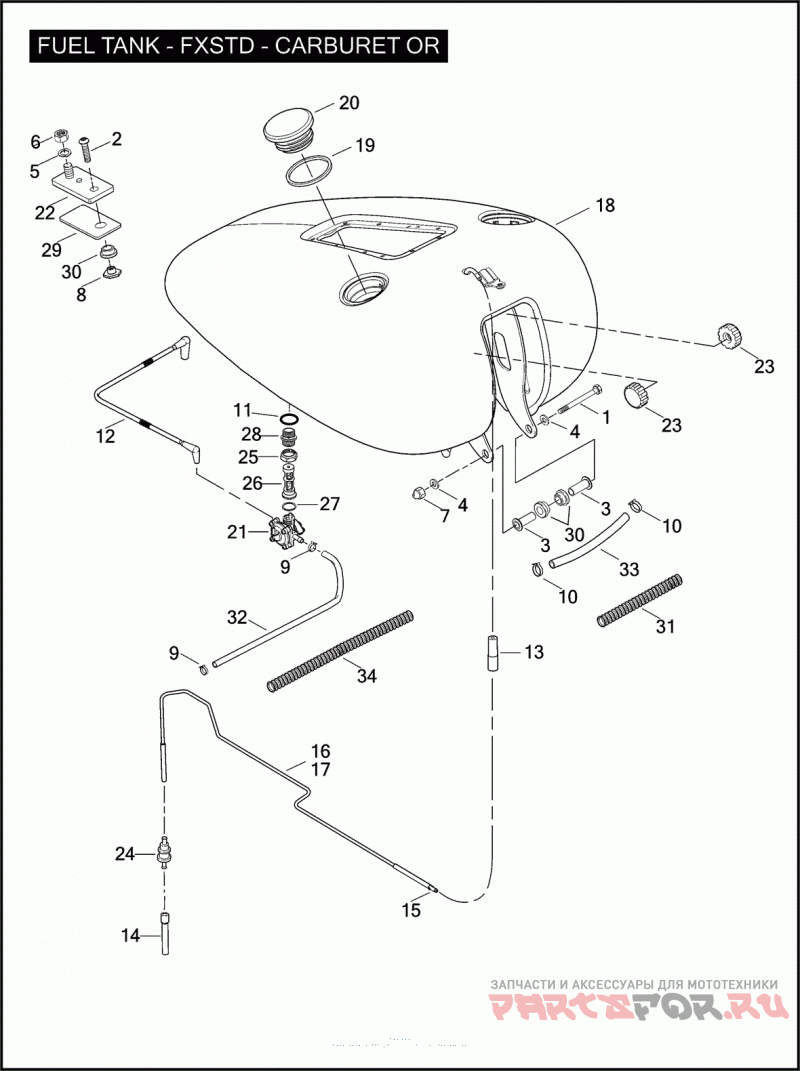

FUEL TANK - FXSTD - CARBURETOR

Harley Davidson FXSTD 1BSY SOFTAIL DEUCE (2006)

Harley Davidson
#oem кодцена
1
4197
BOLT 3/8-16 X 3-3/4 HEX HD. (GRADE 5)
2
4763
SCREW 5/16-18 X 1-1/4 TORX BUTTON HD. (GRADE 5)
3
5818A
BUSHING FRONT TANK MOUNT
4
6400HB
WASHER 5/16 X 13/16 X 3/32
5
6702
WASHER 5/16 X 11/16 X 1/16
6
7748W
NUT 5/16-18 X 1/4 X 1/2 (GRADE 2)
7
7862
ACORN NUT 3/8-16 (CHROME)
8
7965
TEE NUT
9
10014
CLAMP FUEL HOSE
10
10038A
CLAMP FUEL CROSSOVER HOSE
10
10102
CLIP (NOT ILLUSTRATED)
11
11323A
Уплотнительное кольцо
12
26567-99
VACUUM HOSE ASSEMBLY
13
27560-00
HOSE REDUCER
14
27072-00
HOSE VALVE TO ATMOSPHERE
15
27249-96
CONNECTOR STRAIGHT
16
28828-00
TUBE TANK TO VALVE
17
28838-00
VENT LINE ASSEMBLY FUEL TANK TO VAPOR VALVE
18
62082-00D
FUEL TANK W/ ADAPTER BRACKET, LOCKNUT & SCREW (PRIMED)
19
61109-85D
Прокладка
20
61272-92C
FILLER CAP (replaces 61273-92)
21
61338-02
FUEL VALVE VACUUM ACTUATED, INCLUDES GASKET
21
61450-95
FUEL FILLER RESTRICTOR KIT (NOT ILLUSTRATED) (REQUIRED W/ CATALYTIC MUFFLERS)
22
61721-00A
BRACKET ASSEMBLY REAR
23
62146-00
FRONT TANK MOUNT
24
62150-85
VAPOR VALVE
25
62161-02
NUT FUEL VALVE
26
62166-02
FILTER FUEL VALVE
27
62172-02
GASKET FUEL VALVE
28
62842-00
ADAPTER FUEL VALVE
29
62919-00
GROMMET FUEL TANK, UPPER REAR
30
62881-00
GROMMET FUEL TANK, LOWER REAR & FRONT
31
62555-95
INSULATOR 5/8 IN. I.D. (NYLON) (8 FT. LENGTH)
32
63501-68B
HOSE 1/4 I.D. (25 ft. long) (black)
33
63521-95A
HOSE reservoir
34
62555-95
INSULATOR, 5/8in. I.D. (nylon) (8 ft. lg.) - Hose or insulator is sold in bulk length. Cut to required length.
