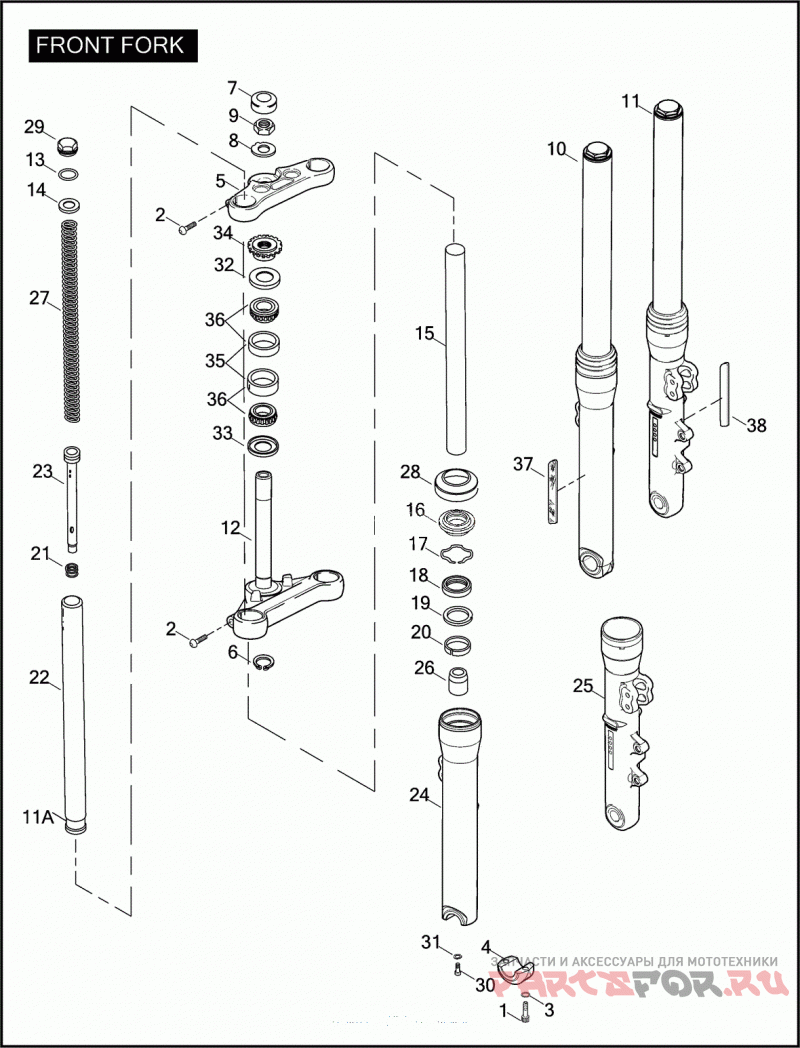

Передняя вилка

Harley Davidson FXDWGI 1GP1 DYNA WIDE GLIDE (2006)

Harley Davidson
#oem кодцена
1
4042
SCREW M8 X 1.25 X 35 HEX BUTTON HD.
2
4351
SCREW 3/8-16 X 1-1/2 TORX HD., SELF-TAPPING (GRADE 8)
3
7062
LOCKWASHER M8.4 X 13 X 1.2
4
45069-01
HOLDER FORK AXLE - RIGHT HAND
5
46317-07
KIT-SERV,UPR/LWR TRIPLE CLAMP,FXDWG
6
45611-86
RING LOWER CLAMP RETAINING
7
45670-80A
CAP FORK STEM
8
45717-63
LOCKWASHER 1 X 2 X 0.035 KEYED SPECIAL
9
45718-60
NUT 1-24 X 1.5 X 0.47
10
47288-06A
FORK ASSEMBLY RIGHT HAND
11
47287-06A
FORK ASSEMBLY LEFT HAND
11A
46080-01
BUSHING SLIDER
12
46317-07
KIT-SERV,UPR/LWR TRIPLE CLAMP,FXDWG
13
46508-01
Уплотнительное кольцо
14
46509-01
WASHER 30 X 43 X 2.3
15
46510-01
COLLAR SPRING
16
46512-01A
Пыльник
17
46513-01
RING STOPPER
18
46514-01A
Сальник
19
46515-01
SPACER SEAL
20
46516-01
BUSHING GUIDE
21
46517-01
SPRING REBOUND
22
46617-06
FORK PIPE
23
46618-06
BOTTOM PIPE
24
46607-06A
SLIDER FORK - (RIGHT)
25
46619-06B
SLIDER FORK (LEFT)
26
46609-06
OIL LOCK PIECE LEFT HAND & RIGHT HAND
27
46620-06
Пружина
28
46611-06
COVER CASE
29
46612-06
BOLT FRONT FORK
30
46614-06
BOLT M14 X 1.25 X 30 SOCKET HD.
31
46615-06
PACKING SEAL
32
48184-01
DUST SHIELD
33
48198-06
DIRT GUARD
34
48307-06
BEARING ADJUSTER
35
48315-60
CUP BEARING
36
48300-60
Подшипник
37
59481-00
REFLECTOR AMBER - RIGHT HAND
38
59482-00
REFLECTOR AMBER - LEFT HAND
