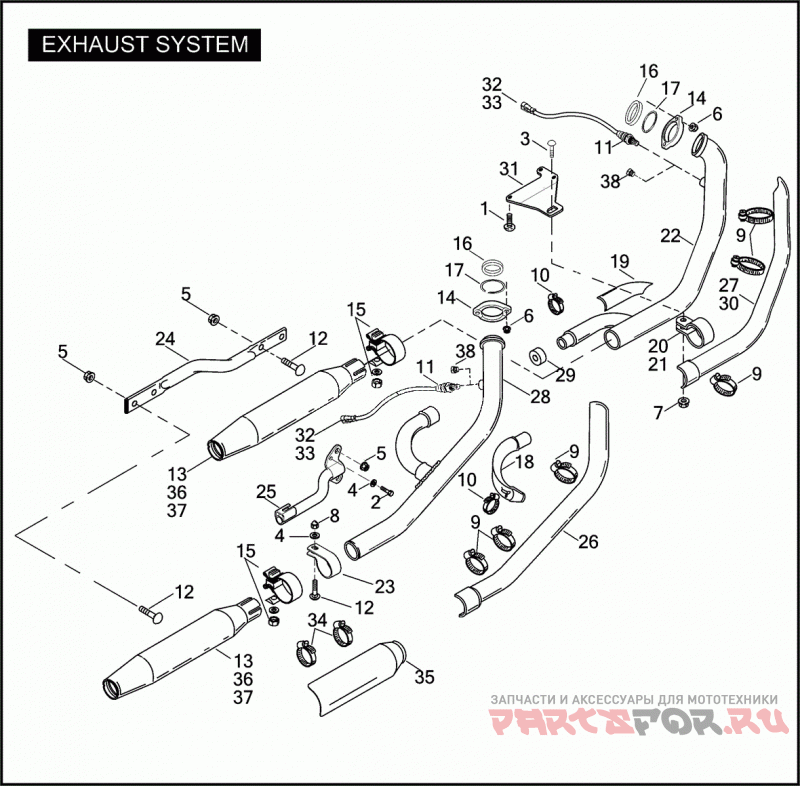

Глушитель

Harley Davidson FXDWGI 1GP1 DYNA WIDE GLIDE (2006)

Harley Davidson
#oem кодцена
1
942
SCREW 1/4-20 X 3/4 TORX BUTTON HD., W/LOCKPATCH (GRADE 8)
2
4017
BOLT 5/16-18 X 1 HEX HD. (GRADE 5)
3
5414
BOLT 3/8-16 X 7/8 CARRIAGE (GRADE 5)
4
6702
WASHER 5/16 X 11/16 X 1/16
5
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
6
7593
NUT 5/16-24 FLANGE
7
7601
LOCKNUT 3/8-16 FLANGE
8
7739
LOCKNUT 5/16-18 X 11/32 X 1/2
9
9955
Зажим
10
10119
Зажим
11
27683-06
SENSOR OXYGEN, W/ 27714-06, 72009-05, & 72011-05
11
27714-06
WASHER SENSOR OXYGEN (NOT ILLUSTRATED)
12
5445W
BOLT 5/16 X 1-1/4 CARRIAGE (GRADE 5)
13
64941-01
Глушитель
14
65184-02
FLANGE PIPE
15
65296-95A
MUFFLER CLAMP
16
65324-83B
GASKET, exhaust port
17
65325-83A
RETAINING RING EXHAUST GASKET
18
65376-95A
SHIELD CROSSOVER, REAR (JAPAN)
19
65379-95
SHIELD CROSSOVER - FRONT (BLACK)
20
65440-06
CLAMP BRACKET UPPER PIPE
21
65441-06
CLAMP BRACKET LOWER PIPE
22
65631-06
EXHAUST PIPE FRONT
23
65654-97
CLAMP PIPE
24
65674-95
SUPPORT MUFFLER
25
65695-06
BRACKET REAR EXHAUST
26
65701-06A
SHIELD EXHAUST, REAR
28
65825-06
EXHAUST PIPE REAR
29
65830-03
GASKET INTERCONNECT
30
65966-06
SHIELD FRONT EXHAUST (CHROME)
31
65975-99
EXHAUST BRACKET FRONT
32
72009-05
HOUSING 2-WAY PIN
33
72011-05
SEAL WIRE
34
10074
CLAMP (HDI)
35
65463-00
SHIELD MUFFLER (HDI)
36
65868-04
MUFFLER (JAP)
37
66025-06
MUFFLER (HDI, ENG, AUS)
38
66054-06
PLUG OXYGEN SENSOR (HDI)
