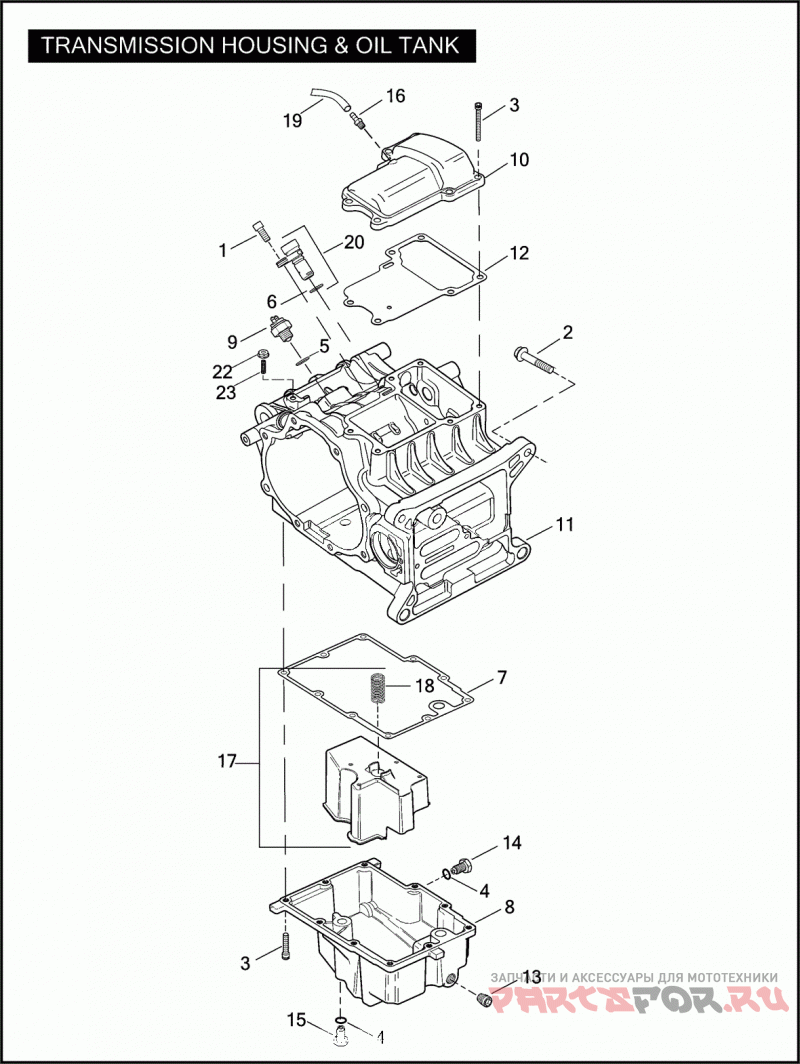

TRANSMISSION HOUSING & OIL TANK

Harley Davidson FXDCI 1GV1 DYNA SUPER GLIDE CUSTOM (2006)

Harley Davidson
#oem кодцена
1
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
2
3699D
SCREW, 3/8-16 X 2.0 hex flange hd. (Grade 8)
3
4741A
SCREW 1/4-20 X 1 SOCKET HD., W/LOCKPATCH
4
11105
Уплотнительное кольцо
5
11290
Уплотнительное кольцо
6
11289A
Уплотнительное кольцо
7
26072-99A
GASKET OIL PAN
8
26085-99A
PAN OIL, W/ 4, 13, 14, 16, 17, & 18 (SILVER)
8
33091-06A
TRANSMISSION, 6-SPD SPUR, SLVR
9
33913-06
NEUTRAL SWITCH W/ 11290
10
34469-06B
TRANSMISSION COVER, top (chrome)
11
34746-06A
TRANSMISSION HOUSING (SILVER)
12
34917-06
GASKET COVER
13
45893-99
PLUG PIPE
14
60328-98B
PLUG, magnetic w/ 11105
15
60328-98B
PLUG OIL DRAIN MAGNETIC, W/ 11105
16
62365-06
FITTING STRAIGHT
17
62826-02
BAFFLE ASSEMBLY W/ 62828-99
18
62828-99
SPRING BAFFLE
19
62367-06
HOSE VENT
20
74402-05B
SENSOR SPEEDOMETER
21
66290-06
STUD GROUNDING
22
7792
NUT 1/4-20 X 1/4 (GRADE 2)
