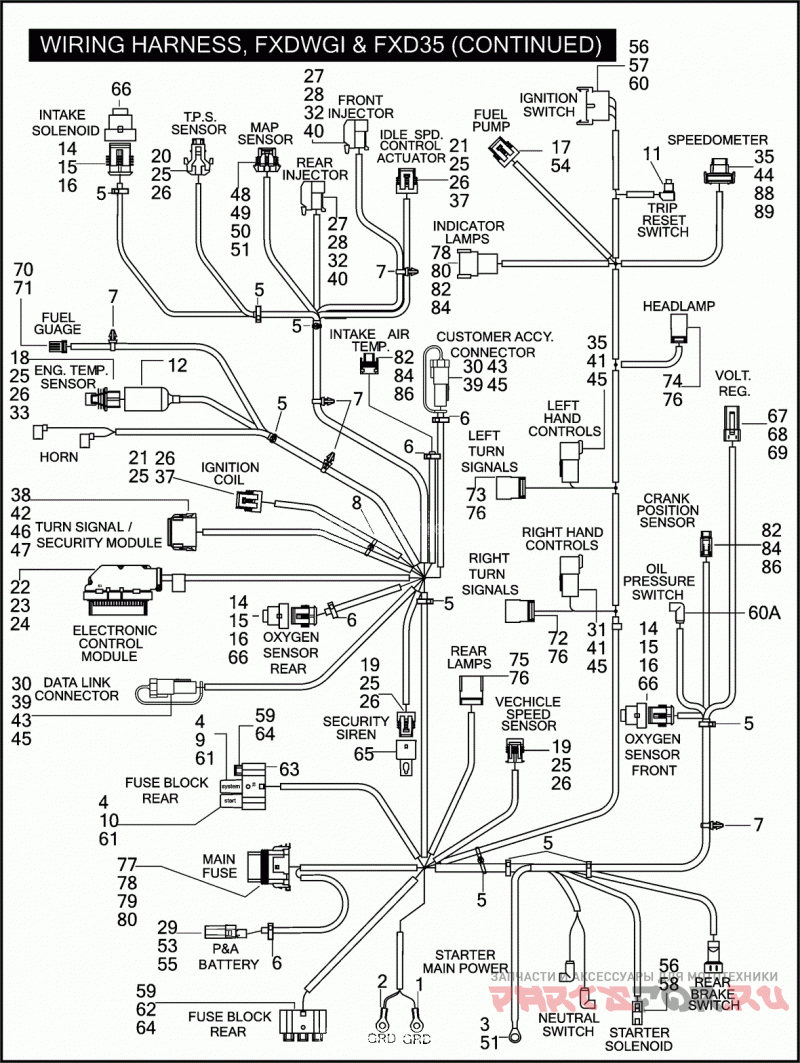

WIRING HARNESS, FXDWGI & FXD35 (CONTINUED)

Harley Davidson FXD35 1GW1 DYNA 35TH ANV SUPER GLIDE (2006)

Harley Davidson
#oem кодцена
69603-06
MAIN WIRING HARNESS (CONTINUED)
43
72164-94A
WEATHER PLUG 4-WAY PIN
44
72189-04
SEAL PIN
45
72190-94
TERMINAL PIN
46
72191-94
TERMINAL SOCKET
47
72195-94
SEAL PIN
48
72213-94
TERMINAL FEMALE, 18-21 GAUGE
49
72214-94
WIRE SEAL DARK RED
50
72230-98
SOCKET HOUSING 3-WAY
51
72231-98
LOCK SECONDARY, 3-WAY SOCKET
52
72249-94
SHRINK TUBE
53
72260-04
HOUSING FEMALE 1-WAY (GRAY)
54
72263-95
CONNECTOR 4-WAY
55
72289-04
TERMINAL FEMALE
56
72291-94
TERMINAL FEMALE, 14-16 GAUGE
57
72292-94
TERMINAL FEMALE
58
72295-94
HOUSING STARTER CONNECTION
59
72330-95
FUSE 15 AMP
60
72327-03A
CONNECTOR 3-way
60A
72405-98GN
TERMINAL PUSH ON - RIGHT ANGLE (GREEN)
61
72427-00
Терминал
62
72430-00
FUSE BLOCK
63
72432-00
FUSE BLOCK
64
72434-00
Терминал
65
72516-01
Пылезащитный колпачок
66
72533-06
DUST CAP 2-PIN CONNECTOR
67
72612-06BK
HOUSING 2-WAY SOCKET (BLACK)
68
72652-06
LOCK SECONDARY , 2-WAY SOCKET
69
72694-06
TERMINAL SOCKET
70
72914-01BK
SOCKET HOUSING 4-WAY (BLACK)
71
72991-01
TERMINAL SOCKET
72
73103-96BK
PIN HOUSING 3-PLACE
73
73103-96WE
PIN HOUSING 3-WAY
74
73104-96BK
PIN HOUSING 4-PLACE (BLACK)
75
73108-96BK
PIN HOUSING 8-PLACE (BLACK)
76
73190-96
TERMINAL PIN, 20-16 GAUGE
77
73301-04
HOUSING FEMALE, 2-WAY
78
73303-04
SECONDARY LOCK FEMALE, 2-WAY
79
73304-04
Терминал
80
73305-04
Уплотнение
81
74108-98BK
PIN HOUSING 8-WAY (BLACK)
82
74112-98BK
HOUSING 2-WAY SOCKET (BLACK)
83
74148-98
PIN LOCK SECONDARY, 8-WAY
84
74152-98
LOCK SECONDARY, 2-WAY SOCKET
85
74190-98
TERMINAL PIN
86
74191-98
TERMINAL SOCKET
87
74195-98
SEAL PIN
88
74196-04
TERMINAL SOCKET
89
74197-04
LOCK SECONDARY, 12-WAY SOCKET
90
72127-06
SECONDARY LOCK 3-WAY, FEMALE, (GREY)
