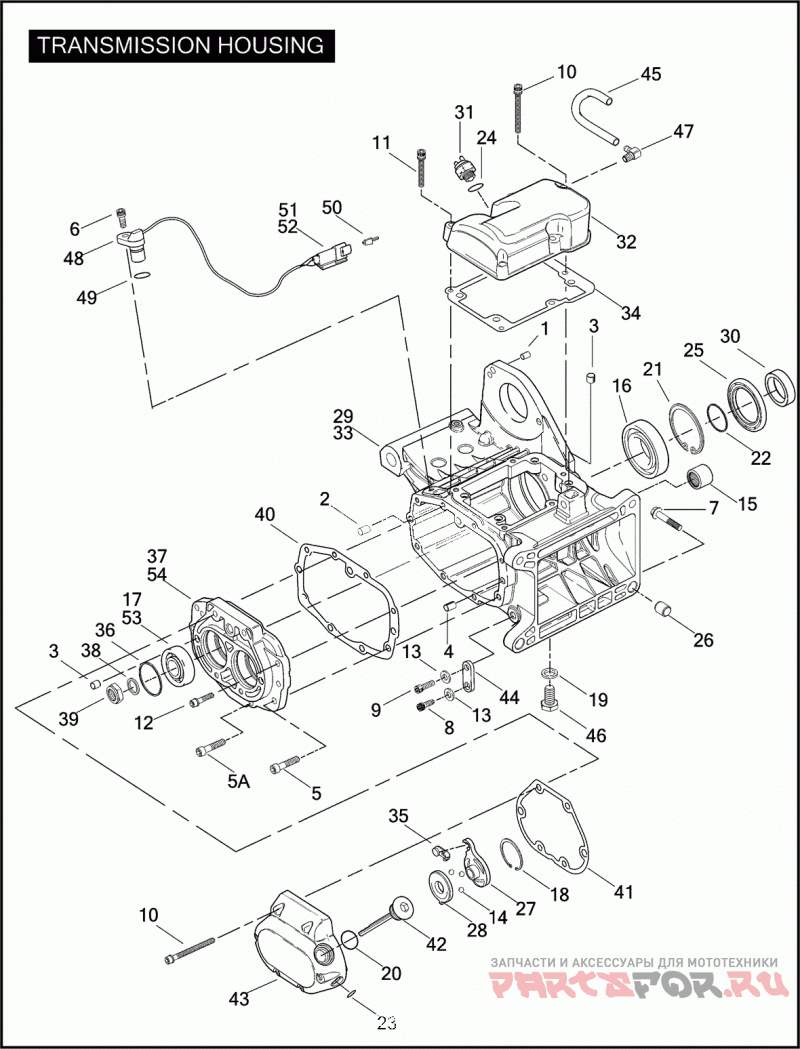

TRANSMISSION HOUSING

Harley Davidson FLSTNI 1JDB SOFTAIL DELUXE (2006)

Harley Davidson
#oem кодцена
1
337
Палец
2
375
Палец
3
609
Штифт
4
634
Штифт
5
3249
SCREW 5/16-18 X 1-3/16 SOCKET HD. (GRADE 8)
5A
3300
SCREW 5/16-18 X 1-1/2 SOCKET HD., W/LOCKPATCH (GRADE 8)
6
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
7
3699D
SCREW, 3/8-16 X 2.0 hex flange hd. (Grade 8)
8
4168A
SCREW 3/8-16 X 1 SELF-TAPPING
9
4313
SCREW 3/8-16 X 1-1/4 SOCKET HD.
10
4717A
SCREW 1/4-20 X 2-1/4 KNURLED HD., W/LOCKPATCH
11
4740A
SCREW 1/4-20 X 1-1/4 KNURLED HD., W/LOCKPATCH (GRADE 8)
12
4814A
SCREW 1/4-20 X 1-1/8 KNURLED HD., W/LOCKPATCH
13
6532
WASHER 3/8 X 3/4 X 1/8
14
8873
Шарик
15
8977
Игольчатый подшипник
16
8996A
BALL BEARING MAINSHAFT, LEFT SIDE
17
8992A
Подшипник
18
10998
Стопорное кольцо
19
11105
O-RING DRAIN PLUG
20
11132A
O-RING, push rod cover
21
11161
RETAINING RING BALL BEARING
22
11165
QUAD SEAL BALL BEARING
23
11179
O-RING CLUTCH CABLE
24
11290
Уплотнительное кольцо
25
12067B
OIL SEAL MAINSHAFT, LEFT SIDE
26
16574-99A
Шпонка
27
25604-00A
INNER RAMP
28
25605-00A
OUTER RAMP
29
33052-06A
TRANSMISSION ASSEMBLY (CHROME & BLACK)
30
33344-94
SPACER SPROCKET
31
33904-00A
SWITCH NEUTRAL INDICATOR, W/ 11290
32
34541-00
COVER UPPER (CHROME)
