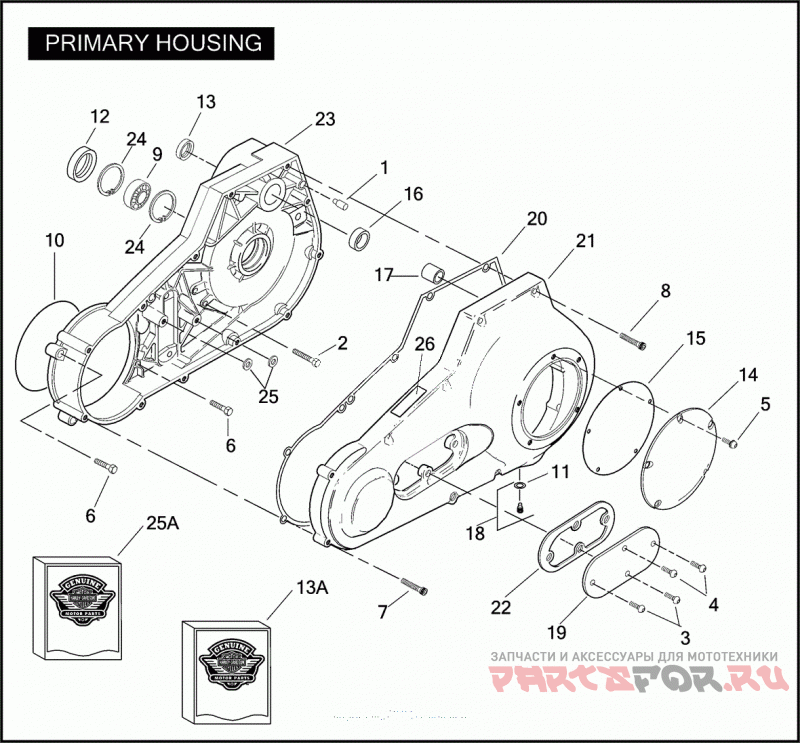

PRIMARY HOUSING

Harley Davidson FLSTI 1JFB HERITAGE SOFTAIL (2006)

Harley Davidson
#oem кодцена
1
375
Штифт
2
836
Винт
3
941
SCREW 1/4-20 X 5/8 SOCKET BUTTON HD. (GRADE 8)
4
945
SCREW 1/4-20 X 2-1/2 TORX BUTTON HD. (GRADE 8)
5
961
SCREW 1/4-20 X 1/2 TORX PAN HD., W/WASHER (GRADE 8)
6
2885
SCREW 5/16-18 X 1-3/4 SEMS HEX HD. (GRADE 5)
7
4740A
SCREW 1/4-20 X 1-1/4 KNURLED HD., W/LOCKPATCH (GRADE 8)
8
4820A
SCREW 1/4-20 X 2 SOCKET HD.
9
9135
Подшипник
10
11147B
O-RING HOUSING COVER
11
11324
O-RING MAGNETIC DRAIN PLUG
12
12052A
Сальник
13
12066A
Сальник
13A
17361-05
GASKET SERVICE KIT (FITS ALL TWIN CAMS FROM 1999-2006)
14
25414-99
COVER CLUTCH (POLISHED)
15
25416-99C
SEAL CLUTCH COVER
16
33445-94A
Втулка
17
33446-94A
Втулка
18
60391-04
PLUG ASSEMBLY MAGNETIC DRAIN, W/ 11324
19
60572-86
COVER PRIMARY CHAIN INSPECTION (CHROME)
20
60539-94B
GASKET PRIMARY COVER
21
60562-99B
COVER ASSEMBLY PRIMARY, W/ 33446-94A & 60391-04 (POLISHED)
22
60567-90C
GASKET INSPECTION COVER
23
60586-99A
PRIMARY HOUSING ASSEMBLY (SILVER PAINTED)
24
60678-85
Стопорное кольцо
25
63859-95B
Прокладка
25A
25700225
GASKET KIT INNER PRIMARY W/ 10, 11, 12, 13, 14, 15, 22, 25 AND 31430-94, 33318-85, 34906-85D, 33126-94, 37909-90
26
14270-92
DECAL SHIFT PATTERN (JAPAN)
