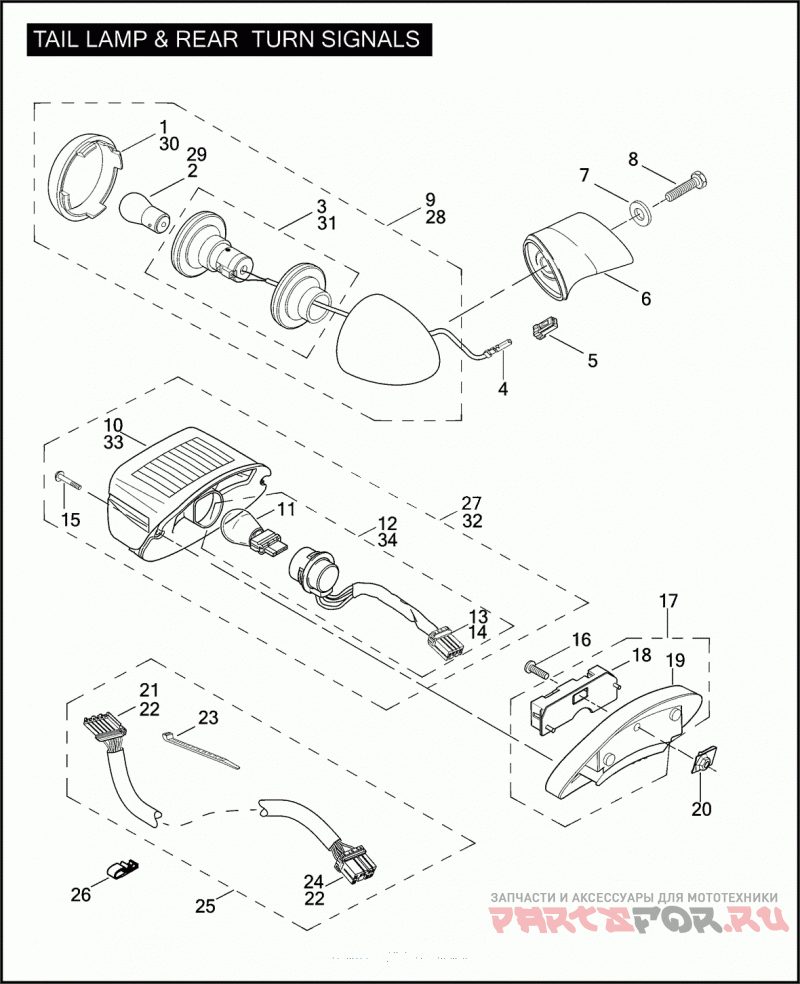

TAIL LAMP & REAR TURN SIGNALS

Harley Davidson FLSTFSE2 1PNF CVO FAT BOY (2006)

Harley Davidson
#oem кодцена
1
69325-02
LENS REAR TURN SIGNAL
2
69330-02
BULB REAR TURN SIGNAL
3
68905-00
SOCKET ASSEMBLY
4
73191-96
CONTACT SOCKET 16-20 GAUGE
5
73152-96BK
SOCKET HOUSING 2-PLACE
6
69438-06
SUPPORT REAR LAMP MOUNTING
7
6702
WASHER 5/16 X 11/16 X 1/16
8
4549
SCREW 5/16-18 X 1-3/4 TORX BUTTON HD. (GRADE 5)
9
69196-03
TURN SIGNAL REAR, W/ 68905-00, 69325-02, & 69330-02
10
68369-03
LENS TAIL LAMP, W/ 68026-99
11
68167-04
BULB TAIL LAMP, WEDGE MOUNT
12
68370-03A
BULB SOCKET ASSEMBLY TAIL LAMP, W/ 68167-04, 73154-96BK, & 73191-96
13
73154-96BK
SOCKET HOUSING 4-PLACE
14
73191-96
CONTACT SOCKET 16-20 GAUGE
15
68026-99
SCREW NO. 8-32 X 1 PHILLIPS PAN HD. (STAINLESS)
16
3022A
SCREW 1/4-20 X 5/8 SOCKET FILLISTER HD., W/LOCKPATCH
17
68066-99A
TAIL LAMP BASE ASSEMBLY
18
68830-99A
CIRCUIT BOARD & COVER
19
68296-99A
TAIL LIGHT BASE (CHROME)
20
7964
J-NUT
21
73156-96BK
SOCKET HOUSING 6-PLACE
22
73191-96
CONTACT SOCKET 16-20 GAUGE
23
10115
CABLE STRAP
24
73158-96BK
SOCKET HOUSING 8-PLACE
25
69486-06B
HARNESS REAR LAMPS, WITH 73156-96BK, 73158-96BK AND 73191-96
25
69200018
CONDUIT HARNESS
26
10183
CLIP T-STUD
27
68140-04
LIGHT ASSEMBLY TAIL LAMP, W/ 68369-03 & 68370-03A
28
68978-00
TURN SIGNAL REAR W/ 68163-84, 68907-00, & 68979-00 (HDI)
29
68163-84
BULB (HDI)
30
68973-00
LENS, turn signal (amber) (HDI, ENGLAND, JAPAN) - INTERNATIONAL MODELS ONLY
32
68141-04
LIGHT ASSEMBLY TAIL LAMP, W/ 68372-03 & 69187-03A (HDI)
33
68372-03
LENS TAIL LAMP, W/ 68026-99 (HDI)
34
69187-03A
SOCKET ASSEMBLY (HDI)
