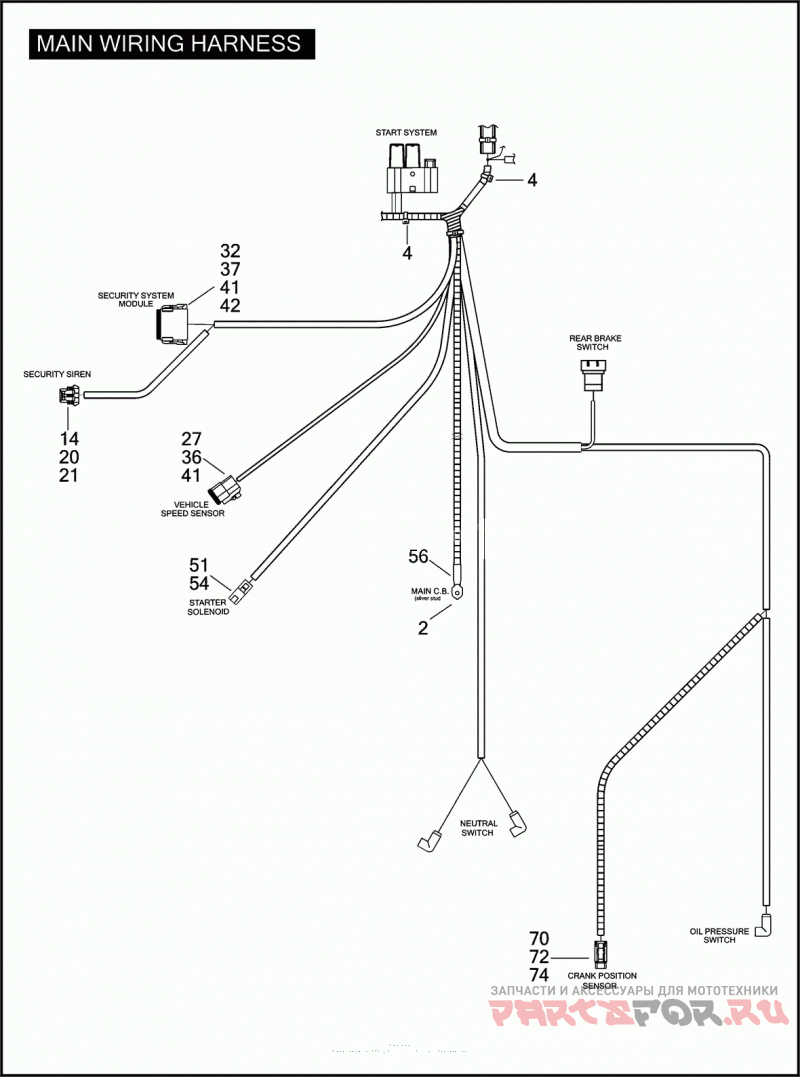

MAIN WIRING HARNESS (CONTINUED)

Harley Davidson FLSTFSE2 1PNF CVO FAT BOY (2006)

Harley Davidson
#oem кодцена
70431-06
Деталь MAIN WIRING HARNESS (CONTINUED)
48
72254-94
Деталь TERMINAL 1/4 RING
49
72260-04
Деталь HOUSING 1-WAY (GRAY)
50
72289-04
Деталь TERMINAL FEMALE
51
72291-94
Деталь TERMINAL FEMALE SPADE - 14-16 GAUGE
52
72292-94
Деталь TERMINAL FEMALE, 12 GAUGE
53
72327-03A
Деталь CONNECTOR 3-way
54
72295-94
Деталь HOUSING STARTER CONNECTION - FEMALE
55
72330-95
Деталь FUSE 15 AMP
56
72366-95
Деталь HEAT SHRINK TUBE (YELLOW)
56
72369-00
Деталь BRACKET FUSE BLOCK MOUNTING (NOT ILLUSTRATED)
57
72428-00
Деталь TERMINAL FEMALE
58
72430-00
Деталь FUSE BLOCK TYPE 0
59
72432-00
Деталь FUSE BLOCK TYPE 2
60
72434-00
Терминал
61
72914-01BK
Деталь SOCKET HOUSING 4-WAY (BLACK)
62
72990-01
Деталь SOCKET TERMINAL #14-16 WIRE
63
73104-96BK
Деталь PIN HOUSING 4-WAY (BLACK)
64
73106-96BK
Деталь PIN HOUSING 6-WAY (BLACK)
65
73108-96BK
Деталь PIN HOUSING 8-WAY (BLACK)
66
73190-96
Деталь TERMINAL PIN 20-16 GAUGE
67
73196-96
Деталь ANCHOR T-STUD
68
73202-04
Деталь CONNECTOR ANCHOR
69
74108-98BK
Деталь PIN HOUSING 8-WAY (BLACK)
70
74112-98BK
Деталь HOUSING SOCKET 2-WAY (BLACK)
71
74148-98
Деталь SECONDARY LOCK PIN - 8-WAY
72
74152-98
Деталь SECONDARY LOCK SOCKET - 2-WAY
73
74190-98
Деталь TERMINAL PIN
74
74191-98
Деталь TERMINAL SOCKET
75
74195-98
Деталь SEAL PIN PLUG
76
74196-04
Деталь TERMINAL SOCKET
77
74197-04
Деталь SECONDARY LOCK
