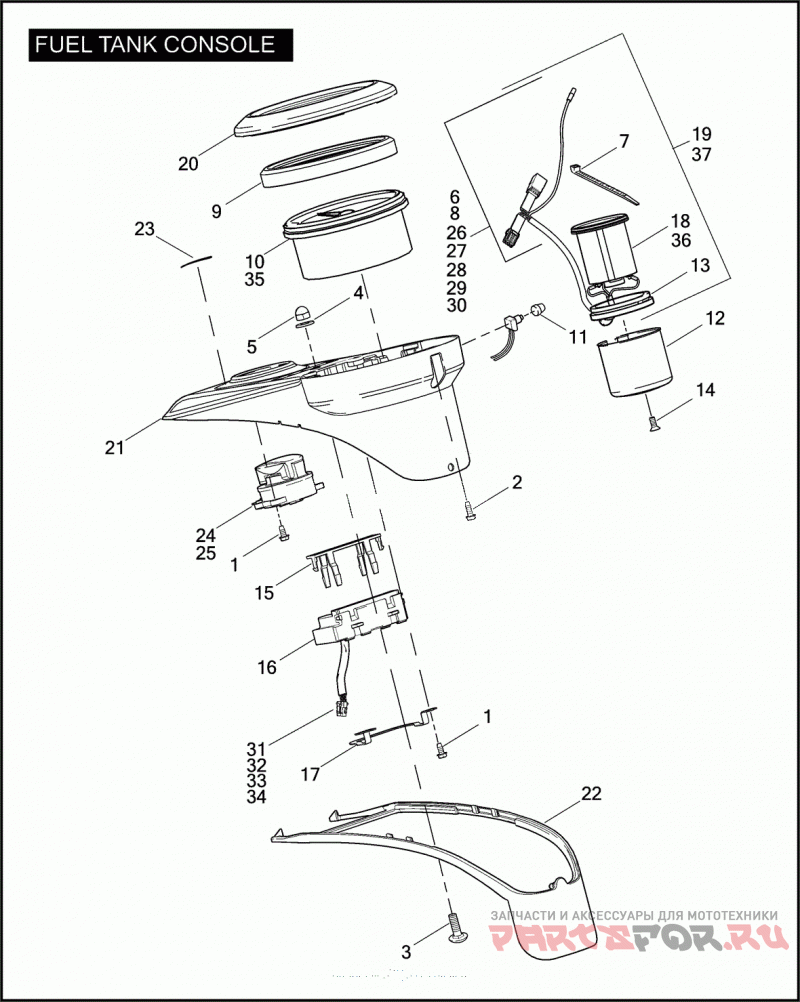

FUEL TANK CONSOLE

Harley Davidson FLSTFSE2 1PNF CVO FAT BOY (2006)

Harley Davidson
#oem кодцена
1
2501A
SCREW NO. 8-32 X 3/8 HEX HD., SELF-TAPPING
2
3058
Винт
3
5419
BOLT 5/16-18 X 1-3/4 CARRIAGE
4
6771A
WASHER 5/16 X 1/2 X 1/16
5
7549A
ACORN NUT 5/16-18 X 9/16 X 1/2
6
9856
TERMINAL RING
7
10065
CABLE STRAP
7
52425-98
BULB TACHOMETER (NOT ILLUSTRATED)
8
74196-04
TERMINAL SOCKET
9
67223-00A
SEAL SPEEDOMETER
10
67313-05A
SPEEDOMETER (MPH)
10
67315-05
SPEEDOMETER (KPH)
11
67880-94
BOOT RESET SWITCH
12
67925-04
HOUSING TACHOMETER
13
67952-96
GASKET ISOLATION
14
67956-96
SCREW 1/4-20 X 3/4 SOCKET FLAT HD.
15
68112-99A
INDICATOR BEZEL
16
68113-99C
HOUSING ASSEMBLY W/ LED LIGHTS, ELECTRICAL CONNECTOR & BEZEL
17
68170-05
BRACKET INDICATOR LIGHT MOUNTING
18
69074-04A
TACHOMETER (ALUMINUM FACE) (DOM, CAL, CAN, HDI)
20
71006-05
BEZEL SPEEDOMETER (CHROME)
21
71259-05
INSTRUMENT PANEL (CHROME)
22
71261-05
TRIM INSTRUMENT PANEL
23
71262-05
PLATE IGNITION SWITCH
24
71313-96A
IGNITION SWITCH (SPECIFY KEY CODE)
26
71757-05
WIRE HARNESS TACHOMETER, W/ 6, 7, 8, 27, 28, 29 & 30
27
73104-96BK
HOUSING PIN 4-PLACE
28
73154-96BK
HOUSING SOCKET 4-PLACE
29
73190-96
TERMINAL PIN, 20-16 GAUGE
30
73191-96
CONTACT SOCKET, 20-16 GAUGE
31
74118-98BK
SOCKET HOUSING 8-WAY (BLACK)
32
74158-98
SECONDARY LOCK 8-WAY SOCKET
33
74193-98
SOCKET TERMINAL
34
74195-98
SEAL PIN
35
67242-04C
SPEEDOMETER DUAL, MPH/KPH (ENGLAND)
36
69074-02
TACHOMETER (SILVER FACE) (ENG)
38
52425-98
BULB REPLACEMENT
