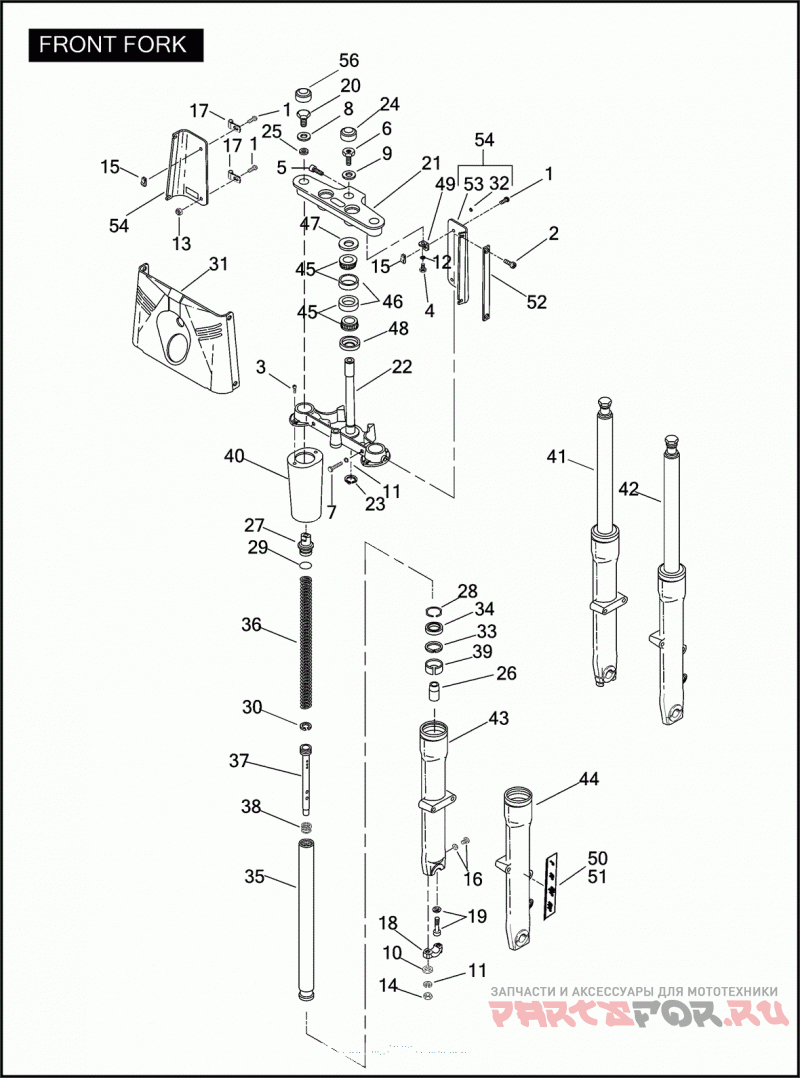

FRONT FORK (CONTINUED)

Harley Davidson FLSTFSE2 1PNF CVO FAT BOY (2006)

Harley Davidson
#oem кодцена
31
67889-91A
FRONT PANEL (CHROME)
32
90357-89
Заглушка
33
45865-84
WASHER SLIDER
34
45875-84A
Сальник
35
45930-00
SLIDER TUBE W/ 45866-84
37
46807-06
DAMPER TUBE
38
45933-86
SPRING DAMPER TUBE
39
45940-84
BUSHING SLIDER
40
45963-97
COVER SLIDER
41
46802-06
FORK SLIDER & TUBE ASSEMBLY RIGHT
42
46801-06
FORK SLIDER & TUBE ASSEMBLY LEFT
43
46484-00
SLIDER RIGHT (CHROME)
44
46483-00
SLIDER LEFT (CHROME)
45
48300-60
ROLLER BEARING W/ CUP
46
48315-60
BEARING CUP
47
48361-80
DUST SHIELD BEARING - UPPER
48
48365-48A
DUST SHIELD BEARING - LOWER
49
50991-86
BRACKET FRONT PANEL
50
59481-00
REFLECTOR AMBER - RIGHT
51
59482-00
REFLECTOR AMBER - LEFT
52
67891-99
TRIM STRIP KIT FRONT PANEL (CHROME)
53
67821-87
BACK PANEL REAR LEFT, W/ SWITCH HOLE
54
67887-91A
BACK PANEL REAR RIGHT (CHROME)
55
67888-91A
BACK PANEL REAR LEFT, W/ 67821-87 & 90357-89 (CHROME)
56
44503-03
CAP FORK BOLT
