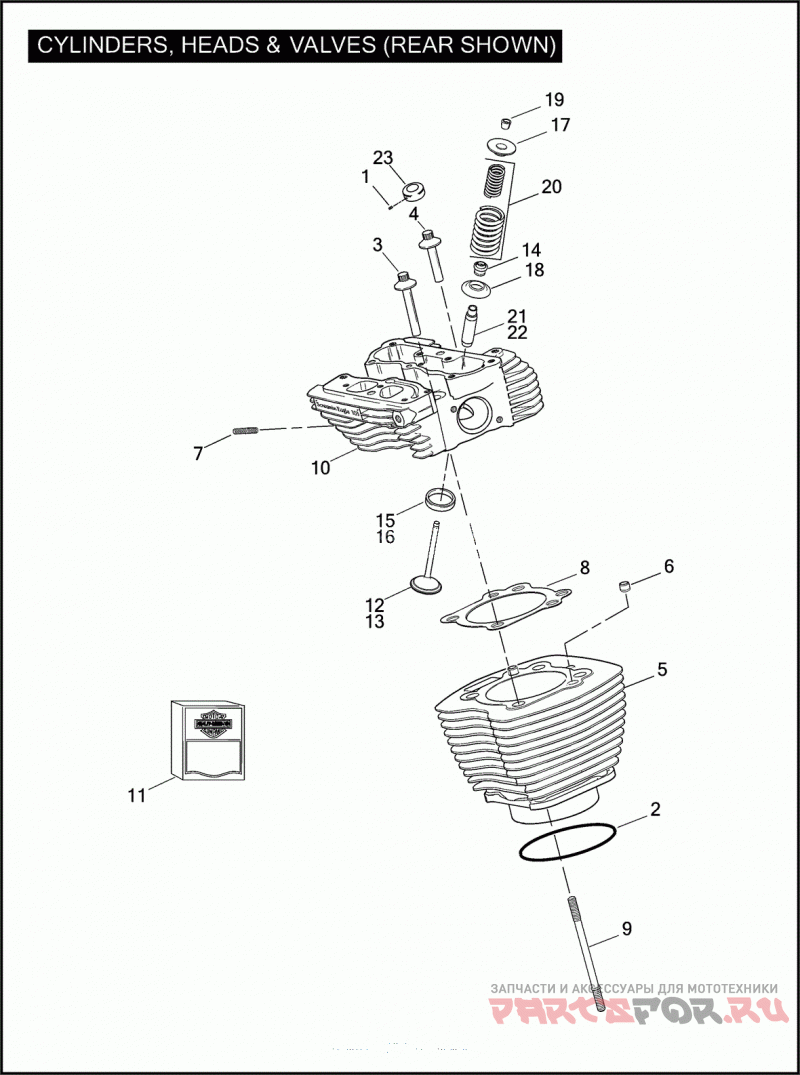

CYLINDERS, HEADS, & VALVES (REAR SHOWN)

Harley Davidson FLSTFSE2 1PNF CVO FAT BOY (2006)

Harley Davidson
#oem кодцена
1
3231B
SCREW 1/4-20 X 1/4 SOCKET HD., W/LOCKPATCH
2
11256
O-RING CYLINDER-BASE
3
16478-85A
SCREW INTERNAL-THREAD, 3-3/16 IN. LONG
4
16480-92A
SCREW INTERNAL-THREAD, 1-7/8 IN. LONG
5
16548-99A
CYLINDER ASSEMBLY W/ 16595-99A (SILVER)
6
16595-99A
DOWEL RING
7
16715-83
STUD EXHAUST-PORT
8
16787-99A
GASKET CYLINDER-HEAD
9
16834-99A
STUD CYLINDER
10
17149-06
CYLINDER HEAD ASSY, FRT, SLVR, 103
10
17151-06
CYLINDER HEAD ASSY, REAR, SLVR, 103
11
17052-99C
GASKET KIT top end
11
17053-99C
GASKET KIT engine overhaul
12
18044-98
VALVE EXHAUST
13
18045-98
VALVE INTAKE
14
18046-98
SEAL VALVE
15
18048-98A
SEAT, exhaust valve
16
18049-98A
SEAT INTAKE VALVE
17
18269-00
COLLAR UPPER, VALVE-SPRING
18
18270-00A
COLLAR, valve spring lower
19
18271-00
KEY COLLAR, VALVE-SPRING
20
18272-00
SPRING SET INNER & OUTER, VALVE
21
18643-98
GUIDE INTAKE-VALVE, 0.001 O.S.
21
18156-05
VALVE GUIDE, intake, .002 OS
21
18158-05
VALVE GUIDE, intake, .003 OS
22
18644-98
GUIDE EXHAUST-VALVE, 0.001 O.S.
22
18646-98
GUIDE EXHAUST-VALVE, 0.002 O.S.
22
18648-98
GUIDE EXHAUST-VALVE, 0.003 O.S.
23
43823-01
HEADBOLT COVER
