Задний бампер для мотоциклов Harley Davidson FLSTFSE2 1PNF CVO FAT BOY (2006) (2006)

Москва и регионы России

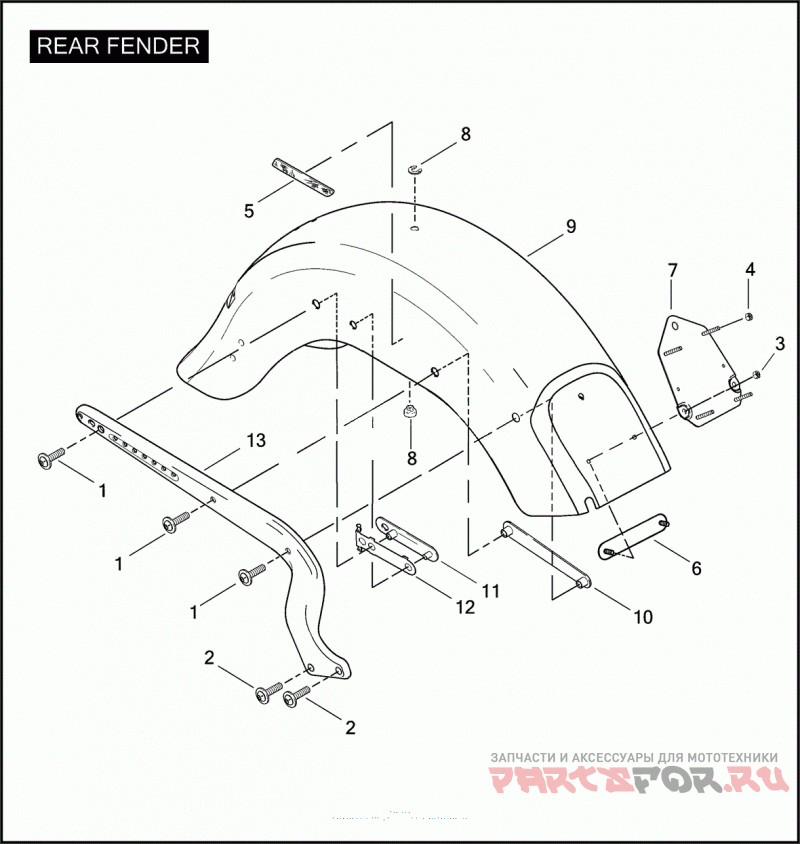

Задний бампер

Harley Davidson FLSTFSE2 1PNF CVO FAT BOY (2006)

Задний бампер

#

oem код

название

цена

PLUG REAR FENDER (NOT ILLUSTRATED)

PLUG REAR FENDER (NOT ILLUSTRATED)

1

SCREW 3/8-16 X 7/8 BUTTON HD. (GRADE 5)

SCREW 3/8-16 X 7/8 BUTTON HD. (GRADE 5)

2

SCREW 3/8-16 X 1-1/4 BUTTON HD. (GRADE 5)

SCREW 3/8-16 X 1-1/4 BUTTON HD. (GRADE 5)

3

NUT 1/4-20 X 1/4 (GRADE 2)

NUT 1/4-20 X 1/4 (GRADE 2)

4

NUT NO. 10-32 X 7/32 FLANGE LOCK

NUT NO. 10-32 X 7/32 FLANGE LOCK

5

REFLECTOR RIGHT

REFLECTOR RIGHT

5

REFLECTOR LEFT

REFLECTOR LEFT

6

BRACKET MOUNTING

BRACKET MOUNTING

7

BRACKET ECM MOUNTING

BRACKET ECM MOUNTING

8

FENDER SEAT NUT KIT

FENDER SEAT NUT KIT

9

FENDER REAR (AUTUMN HAZE/ABYSS BLUE)

FENDER REAR (AUTUMN HAZE/ABYSS BLUE)

9

FENDER REAR (NEBULA YELLOW PEARL/CANDY COBALT)

FENDER REAR (NEBULA YELLOW PEARL/CANDY COBALT)

9

FENDER REAR (CANYON COPPER/CONCORD PURPLE)

FENDER REAR (CANYON COPPER/CONCORD PURPLE)

10

BRACKET FENDER MOUNTING - FRONT

BRACKET FENDER MOUNTING - FRONT

11

BRACKET FENDER MOUNTING - REAR

BRACKET FENDER MOUNTING - REAR

12

PLATE WIRE RETAINER - REAR

PLATE WIRE RETAINER - REAR

13

SUPPORT RIGHT

SUPPORT RIGHT

13

SUPPORT LEFT

SUPPORT LEFT
