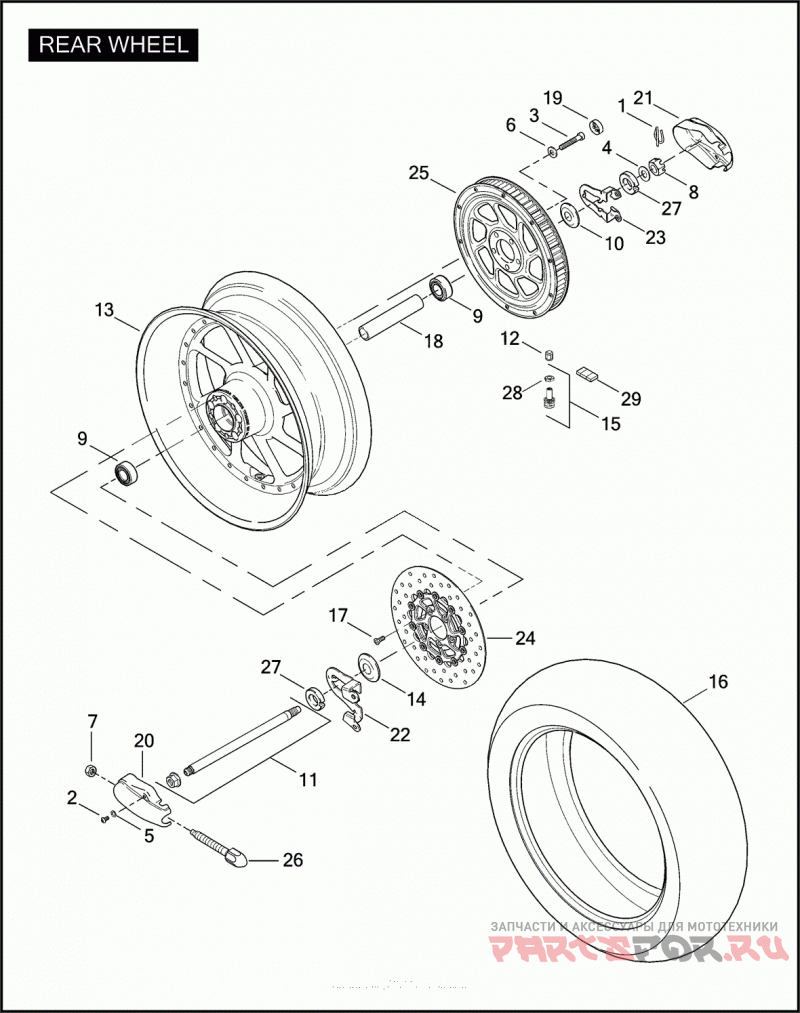

Заднее колесо

Harley Davidson FLSTFSE2 1PNF CVO FAT BOY (2006)

Harley Davidson
#oem кодцена
1
508
RETAINING PIN
2
3007
SCREW NO. 10-32 X 3/8 SOCKET HD.
3
3737A
SCREW 7/16-14 X 2-1/4 HEX HD., W/LOCKPATCH (GRADE 5)
4
5756
WASHER 21/32 X 1-5/16 X 5/8
5
6150W
WASHER 3/16 X 3/8 X 1/16
6
6516HW
WASHER 7/16 X 1-1/8 X 1/8
7
7783
NUT 3/8-16 X 5/16 X 9/16 (GRADE 2)
8
7987
NUT 5/8-18 X 15/16 SLOTTED (GRADE 8)
9
9267
SEALED BALL BEARING
10
40866-06
SPACER WHEEL, LEFT (CHROME)
11
41110-89
AXLE ASSEMBLY
12
41148-98
KIT VALVE STEM CAPS
13
41655-08
REAR WHEEL KIT, ROAD WINDER 17 X 6 IN
14
41613-03
SPACER WHEEL, RIGHT (CHROME)
15
43157-83A
VALVE STEM ASSEMBLY
16
43242-06B
TIRE 17 IN.
17
43567-92
SCREW 3/8-16 X 1 TORX PAN HD., W/LOCKPATCH
18
43618-06
Гильца
19
43991-04B
COVER BOLTS
20
44500-03B
COVER AXLE NUT, RIGHT (CHROME)
21
44501-03
COVER AXLE NUT, LEFT (CHROME)
22
44509-03
BRACKET AXLE COVER, RIGHT
23
44510-03
BRACKET AXLE COVER, LEFT
24
44706-03A
KIT-BRAKE DISC,RH/RR,RD TWISTER
25
40698-06
SPROCKET ASSEMBLY REAR, 70 T
25
41110-79A
REAR AXLE KIT
26
47579-00
ADJUSTER AXLE, RIGHT HAND
26
47627-03
ADJUSTER AXLE, LEFT HAND
27
47633-03
SPACER AXLE
28
54321-85
NUT NO. 8-32 X 1/2 X 1/8 (BRASS)
29
95595-84B
WHEEL WEIGHT 5 grams (plain)
