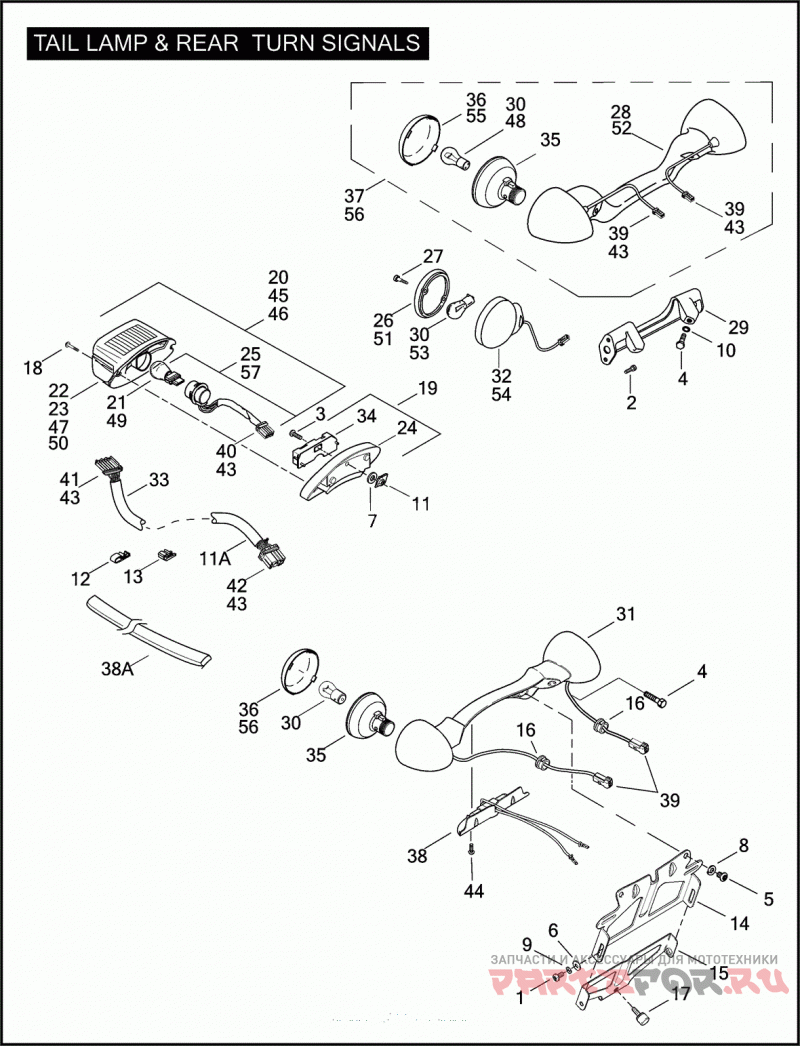

TAIL LAMP & REAR TURN SIGNALS для мотоциклов Harley Davidson FLHXI 1KBW STREET GLIDE (2006) (2006)

TAIL LAMP & REAR TURN SIGNALS

Harley Davidson FLHXI 1KBW STREET GLIDE (2006)

oem код

название

цена

2660

SCREW NO. 10-24 X 3/8 PAN HD.

3022A

SCREW 1/4-20 X 5/8 SOCKET FILLISTER HD., W/LOCKPATCH

3576

SCREW 5/16-18 X 1/2 HEX HD., W/WASHER.

3652

SCREW 1/4-20 X 3/8 BUTTON HD. (GRADE 8)

6716

WASHER NO. 10 X 1/2 X 3/64

6701

WASHER 3/8 X 13/16 X 1/16

7036

WASHER 1/4 X 31/64 X 1/16

7069

LOCKWASHER NO. 10

7964

J-NUT

11A

CABLE STRAP

CLIP T-STUD

CLIP T-STUD

BRACKET LICENSE PLATE, TOP

60090-05

BRACKET LICENSE PLATE, BOTTOM

67266-94

BUSHING NYLON

67845-05

BUMPER RUBBER

68026-99

SCREW NO. 8-32 X 1 PHILLIPS PAN HD. (STAINLESS)

68066-99A

TAIL LAMP BASE ASSEMBLY W/ 68296-99A & 68830-99A

68167-04

BULB TAIL LAMP, WEDGE MOUNT

68245-03

LENS TAIL LAMP (RED), W/ 68026-99

68296-99A

TAIL LIGHT BASE (CHROME)

68370-03A

SOCKET ASSEMBLY TAIL LAMP W/ 68167-04

68572-64B

BULB REAR TURN SIGNAL

68629-05

LIGHTBAR TURN SIGNAL

68772-06

HARNESS REAR LAMPS, W/ 70522-06A, 73156-96BK, 73158-96BK & 73191-96

68830-99A

CIRCUIT BOARD & COVER ASSEMBLY

68905-00

SOCKET ASSEMBLY REAR TURN SIGNAL (2) (KA/B DOMESTIC ONLY)

68973-00

LENS REAR TURN SIGNAL

69353-05

LAMP ASSEMBLY

38A

70522-06B

CONDUIT self-adhesive

73152-96BK

SOCKET HOUSING 2-PLACE

73154-96BK

SOCKET HOUSING 4-PLACE

73156-96BK

SOCKET HOUSING 6-PLACE

73158-96BK

SOCKET HOUSING 8-PLACE

73191-96

TERMINAL SOCKET 16-20 GAUGE

2482

SCREW, 6-32 X 5/16 socket button hd. (stainless)

68141-04

LAMP ASSEMBLY TAIL LAMP, W/ 68187-03A & 68372-03 (HDI)

68163-84

BULB TURN SIGNAL (2) (HDI)

68167-88

BULB TAIL LAMP, WEDGE MOUNT (HDI)

68372-03

LENS TAIL LAMP W/ 68026-99 (2) (HDI)

68973-00

LENS TURN SIGNAL (2) (HDI)

68997-04

LAMP ASSEMBLY REAR TURN SIGNAL, W/ 68163-84, 68508-04, 68973-00, 73152-96BK & 73191-96 (HDI)

69187-03A

SOCKET ASSEMBLY TAIL LAMP, W/ 68167-88, 73154-96BK & 73191-96 (HDI)
