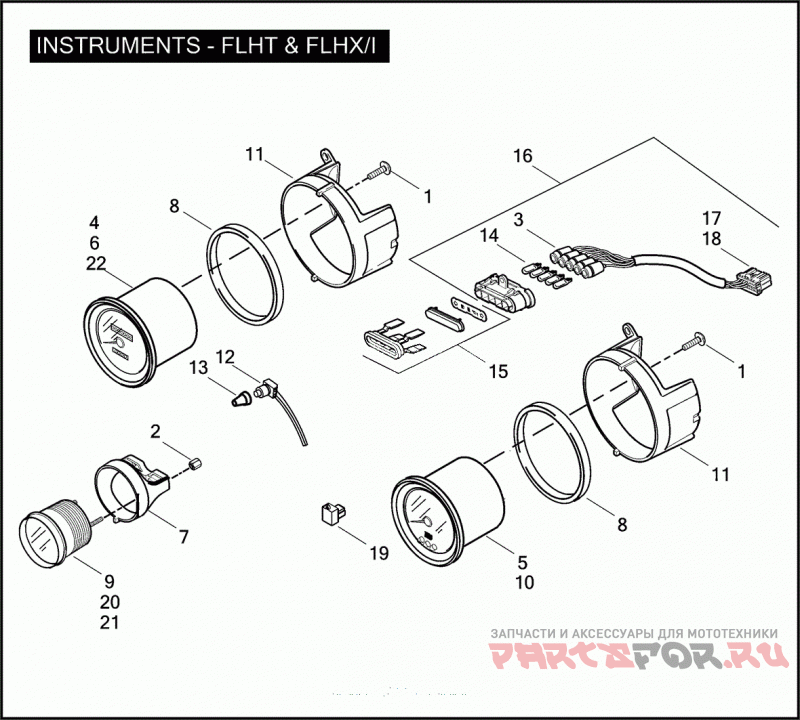

INSTRUMENTS - FLHT & FLHX/I

Harley Davidson FLHX 1KAV STREET GLIDE (2006)

Harley Davidson
#oem кодцена
1
3691
SCREW NO. 8-32 X 5/8 SOCKET BUTTON HD.
1
10073
CABLE STRAP (NOT ILLUSTRATED)
2
67043-96
Гайка
3
67184-94
SOCKET INDICATOR LAMPS
4
67261-04A
SPEEDOMETER MPH (SILVER FACE)
7
67352-96A
BACKCLAMP 2-GAUGE
8
67356-00
GASKET SPEEDOMETER/TACHOMETER
9
67445-00
BULB W/ RUBBER BOOT
10
67459-04C
TACHOMETER
11
67689-04
BACKCLAMP 4-GAUGE
12
67854-98
SWITCH ODOMETER RESET
13
67880-94
BOOT ODOMETER RESET SWITCH
14
68024-94
BULB INDICATOR LAMPS
15
68382-96
BEZEL ASSEMBLY INDICATOR LAMP
16
68789-96B
INDICATOR LAMP ASSEMBLY W/ 73160-96BK (REPLACES 68789-96)
17
73160-96BK
SOCKET HOUSING 10-PLACE
18
73191-96
TERMINAL SOCKET 16-20 GAUGE
19
74419-96A
SENSOR, air temperature w/73103-96BK
20
75165-01A
OIL PRESSURE GAUGE COLORED FACE W/ 67445-00 & 75044-96
20
75166-01A
AIR TEMPERATURE GAUGE COLORED FACE W/ 67445-00 & 75044-96
20
75167-01A
VOLTMETER COLORED FACE, W/ 67445-00 & 75044-96
20
75168-01A
FUEL GAUGE COLORED FACE, W/ 67445-00 & 75044-96
21
75044-96
Патрон
22
67281-04A
SPEEDOMETER KPH (AUSTRALIA, CANADA, HDI, JAPAN)
