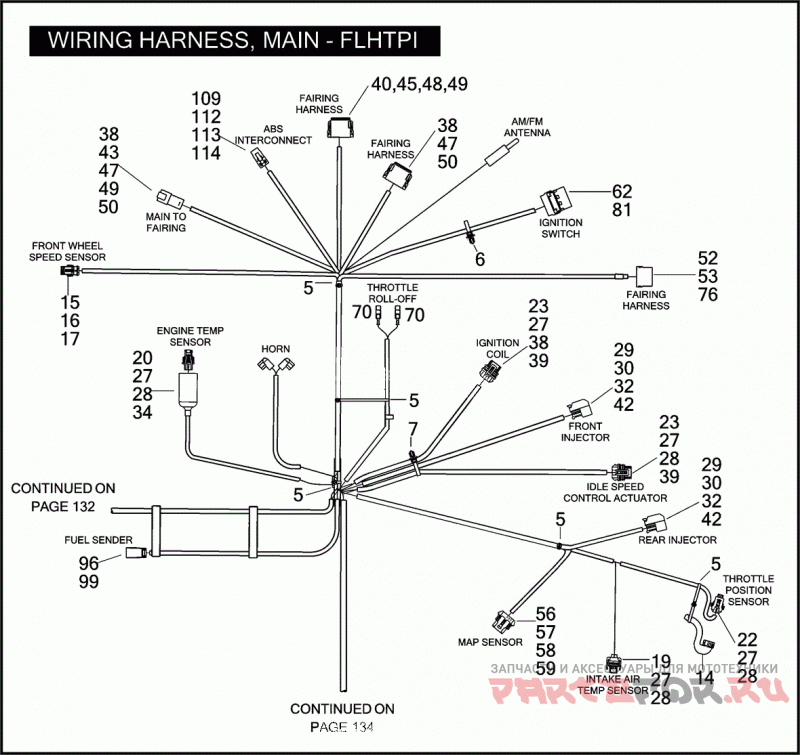

WIRING HARNESS, MAIN - FLHTPI

Harley Davidson FLHTPI 1FMW ELECTRA GLIDE STANDARD POLICE (2006)

Harley Davidson
#oem кодцена
70998-06
WIRING HARNESS MAIN - NON-ABS
70269-06
WIRING HARNESS MAIN - ABS
1
9819
TERMINAL 1/4 IN. RING, #12 AWG
2
9825
TERMINAL RING
3
9842
TERMINAL 1/4 IN. RING, #10-12 AWG
4
9937
TERMINAL FEMALE, SPADE, 1/4 IN. SLOT
5
10065
CABLE STRAP
6
10073
CABLE STRAP
7
10177
CABLE STRAP TREE MOUNT
8
10277
CLIP HARNESS
9
31504-91B
RELAY W/ DIODE
10
31511-01B
RELAY W/ DIODE
11
31586-07
RELAY
12
70598-99
BOOT ENGINE TEMPERATURE SENSOR
13
70604-06
BOOT 2-WAY DTM (BLACK)
14
70976-06
WIRE GUIDE
15
72006-05
TERMINAL SOCKET, #16-20 AWG
16
72007-05
HOUSING 2-WAY SOCKET
17
72011-05
WIRE SEAL #16-20 AWG (YELLOW)
18
72046-79
INSULATOR SPADE TERMINALS
19
72062-06
HOUSING 2-WAY SOCKET
20
72063-06
HOUSING 2-WAY SOCKET
21
72064-06
HOUSING 3-WAY SOCKET
22
72065-06A
HOUSING 3-WAY SOCKET
23
72066-06A
SOCKET HOUSING 4-way female (black)
25
72076-00
TERMINAL SOCKET #18 AWG
26
72077-00
SEAL PIN
27
72094-06
TERMINAL SOCKET #16-20 AWG
28
72096-06
WIRE SEAL #18-20 AWG (YELLOW)
29
72098-06
HOUSING 2-WAY SOCKET
30
72099-06
WIRE SEAL #16-18 AWG
31
72100-04
HOUSING MALE, 1-WAY
32
72104-94BK
RECEPTACLE 4-WAY PIN (BLACK)
33
72110-06
TERMINAL SOCKET, #16-18 AWG
34
72111-06
LOCK SECONDARY, 2-WAY SOCKET
35
72113-94BK
HOUSING 3-WAY SOCKET (BLACK)
36
72119-94BK
PLUG 12-WAY SOCKET, W/ 72179-94 (BLACK)
37
72124-94GY
HOUSING 4-WAY SOCKET (GRAY)
38
72106-94BK
RECEPTACLE, 6-way pin (black)
39
72135-06
LOCK SECONDARY, 4-WAY SOCKET
40
72139-94GY
SOCKET HOUSING SEALED, W/ 72179-94 (GRAY)
41
72144-94
PIN LOCK SECONDARY, 4-WAY
42
72145-06
LOCK SECONDARY, 2-WAY SOCKET
43
72146-94
PIN LOCK SECONDARY 6-WAY
44
72153-94
LOCK SECONDARY, 3-WAY SOCKET
45
72159-94
LOCK SECONDARY, 12-WAY SOCKET
46
72164-94A
WEATHER PLUG
47
72190-94
TERMINAL PIN
48
72191-94
TERMINAL SOCKET
49
72195-94
SEAL PIN
50
72199-94
ANCHOR CONNECTOR
