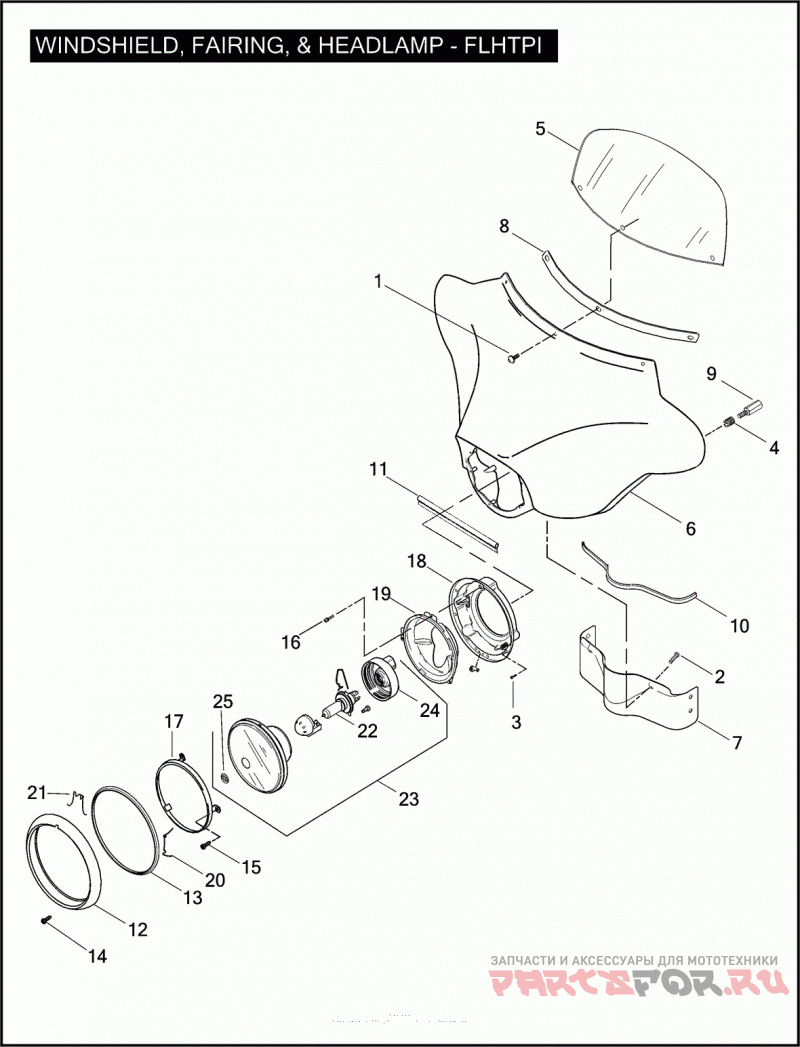

WINDSHIELD, FAIRING, & HEADLAMP - FLHTPI

Harley Davidson FLHTPI 1FMW ELECTRA GLIDE STANDARD POLICE (2006)

Harley Davidson
#oem кодцена
1
2445
SCREW 1/4-20 X 9/16 BUTTON HD.
2
2446
SCREW 1/4-20 X 5/8 TORX SOCKET BUTTON HD.
3
3639
SCREW 10-12 X 1-1/8 TORX PAN HD., SELF-TAPPING
4
16585-96
INSERT THREADED
5
58187-96
Ветровое стекло
6
58236-96
FAIRING OUTER (PRIME)
7
58208-96A
SKIRT, outer fairing
8
58247-96
CUSHION TAPE WINDSHIELD MOUNTING
9
58949-96
NUT EXTENSION
10
62786-96
TRIM STRIP SKIRT
11
62787-96
SEAL FAIRING SKIRT
12
67712-83B
DOOR chrome
13
67716-60C
GASKET headlamp door (used w/ 67702-81A)
14
67718-60A
SCREW HEADLAMP DOOR
15
67721-48
SCREW HEADLAMP RETAINING RING
16
67724-71
ADJUSTING SCREW HEADLAMP
17
67001-08
RETAINING RING KIT, headlamp, w/ 67721-48 & 67732-48 (domestic)
18
67728-02A
BUCKET ASSEMBLY, w/ 67724-71 & 67782-60A (HDI, Japan) - INTERNATIONAL MODELS ONLY
19
67001-08
RETAINING RING KIT, headlamp, w/ 67721-48 & 67732-48 (domestic)
20
67780-60A
SPRING, bottom
21
67778-60A
SPRING, top
22
68329-03
BULB
23
68342-05A
LENS ASSEMBLY 7 IN, WITH 67668-05, 68329-03 AND 68390-05 (DOMESTIC)
24
68390-05
чехол
25
67668-05
MEDALLION HEADLAMP, 7 IN
