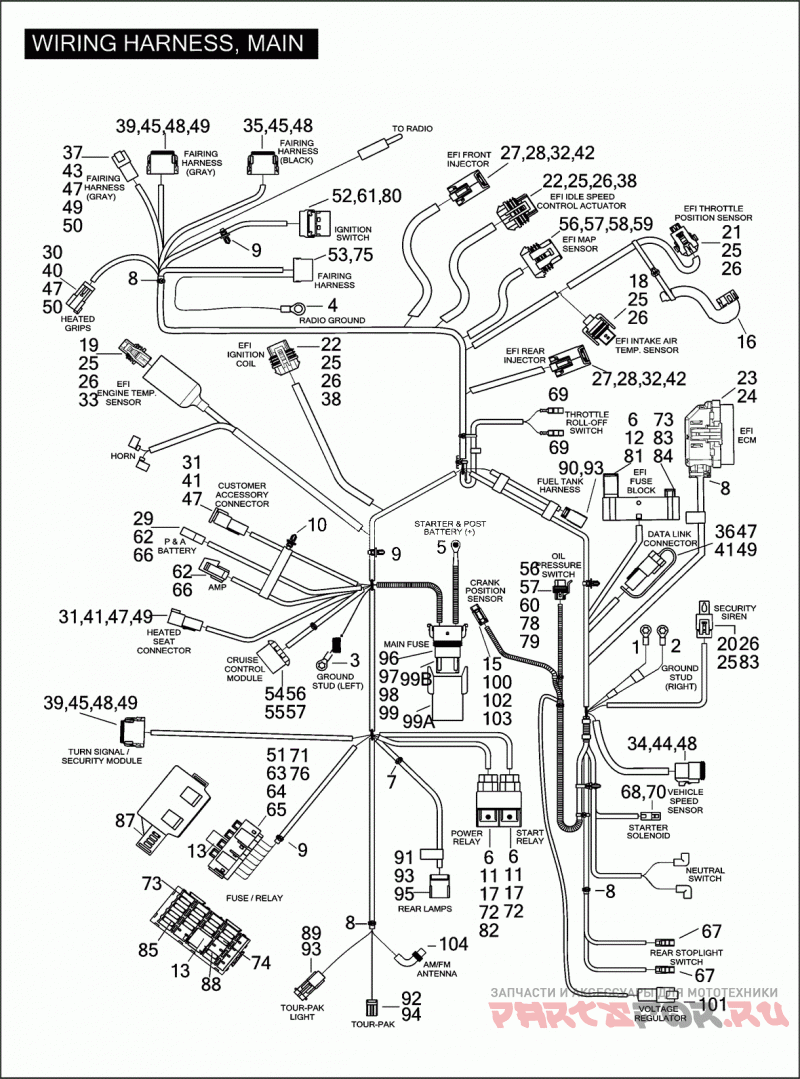

WIRING HARNESS, MAIN

Harley Davidson FLHTCUSE 1PRE CVO ULTRA CLASSIC (2006)

Harley Davidson
#oem кодцена
70992-06
WIRING HARNESS MAIN
1
9819
TERMINAL 1/4 IN. RING, #12 AWG
2
9825
TERMINAL 1/4 IN. RING
3
9838
TERMINAL 1/4 IN. RING, W/ INTERNAL STAR, #10-12 AWG
4
9840
TERMINAL 3/16 IN. RING, #12-14 AWG
5
9842
TERMINAL 1/4 IN. RING, #10-12 AWG
6
9937
TERMINAL FEMALE, SPADE, 1/4 IN. SLOT
7
10039
CABLE STRAP
8
10065
CABLE STRAP
9
10073
CABLE STRAP ROSE BUD MOUNT
10
10177
CABLE STRAP TREE MOUNT
11
31504-91B
RELAY W/ DIODE
12
31511-01B
RELAY W/ DIODE (BLACK)
13
31586-07
RELAY
14
70598-99
BOOT ENGINE TEMPERATURE SENSOR
15
70604-06
BOOT 2-WAY SOCKET (BLACK)
16
70976-06
WIRE GUIDE
17
72046-79
HOUSING 5-WAY FEMALE
18
72062-06
HOUSING 2-WAY SOCKET
19
72063-06
HOUSING 2-WAY SOCKET
20
72064-06
HOUSING 3-WAY, FEMALE
21
72065-06A
HOUSING 3-WAY SOCKET
22
72066-06A
SOCKET HOUSING 4-way female (black)
23
72076-00
TERMINAL SOCKET, #18 AWG
24
72077-00
SEAL PIN
25
72094-06
TERMINAL SOCKET, #18 AWG
26
72096-06
WIRE SEAL #18-20 AWG
27
72098-06
HOUSING SOCKET, 2-WAY
28
72099-06
WIRE SEAL #16-18 AWG
29
72100-04
HOUSING MALE, 1-WAY
30
72103-94BK
HOUSING 3-WAY PIN
31
72104-94BK
HOUSING 4-WAY PIN (BLACK)
32
72110-06
TERMINAL SOCKET, #16-20 AWG
33
72111-06
LOCK SECONDARY, 2-WAY SOCKET
34
72113-94BK
HOUSING 3-WAY SOCKET (BLACK)
35
72119-94BK
PLUG 12-WAY SOCKET, W/ 72179-94 (BLACK)
36
72124-94GY
HOUSING 4-WAY PIN (GRAY)
37
72106-94BK
RECEPTACLE, 6-way pin (black)
38
72135-06
LOCK SECONDARY, 4-WAY SOCKET
39
72139-94GY
SOCKET HOUSING SEALED, W/ 72179-94 (GRAY)
40
72143-94
LOCK SECONDARY, 3-WAY PIN
41
72144-94
PIN LOCK SECONDARY, 4-WAY
42
72145-06
LOCK SECONDARY, 2-WAY SOCKET
43
72146-94
PIN LOCK SECONDARY, 6-WAY
44
72153-94
LOCK SECONDARY, 3-WAY SOCKET
45
72159-94
SOCKET LOCK SECONDARY, 12-WAY
46
72164-94A
WEATHER PLUG, 4-WAY PIN
47
72190-94
TERMINAL PIN
48
72191-94
TERMINAL SOCKET
49
72195-94
SEAL PIN
50
72199-94
CONNECTOR ANCHOR
