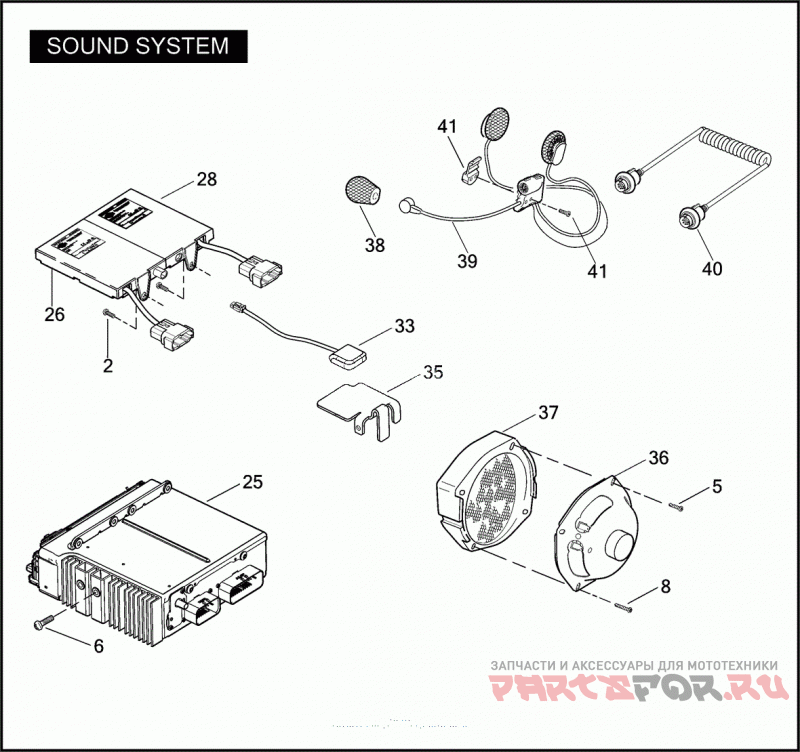

SOUND SYSTEM

Harley Davidson FLHTCUSE 1PRE CVO ULTRA CLASSIC (2006)

Harley Davidson
#oem кодцена
1
2563
SCREW NO. 10-24 X 5/8 TORX BUTTON HD.
2
2625
SCREW NO. 8-32 X 5/8 POZIDRIV PAN HD. (GRADE 2)
3
2881W
SCREW 1/4-20 X 2 HEX HD. (GRADE 5)
4
2963
SCREW NO. 6-32 X 1-1/4 TORX PAN HD.
5
2965
SCREW NO. 10 X 2 PAN HD., SELF-TAPPING
6
3061
SCREW 1/4-20 X 5/8 SEMS HEX HD.
7
3248
SCREW M4 X 0.7 X 3MM
8
3387
SCREW NO. 10-16 X 1.0 TORX PAN HD., SELF-TAPPING
9
3612
SCREW NO. 10-16 X 1/2 TORX PAN HD., SELF-TAPPING
10
5210
WELLNUT
11
5211
JACK NUT
12
6703
WASHER 1/4 X 5/8 X 1/16
13
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
14
7838
NUT NO. 10-24 KEPS
15
9809
TRIM RING,PRE-INSULT
16
9892
RING TERMINAL
16
10006
CABLE STRAP (NOT ILLUSTRATED)
16
10181
CABLE STRAP (NOT ILLUSTRATED)
17
58010-98
BUSHING OPEN/CLOSED
18
70465-86A
GROUND CABLE
19
71814-98
SWITCH KNOB VOLUME
19
71823-98
SWITCH KNOB MODE SELECT
20
71834-98
SWITCH REAR CONTROLS, W/ 10181 & 74191-98
21
74191-98
SOCKET TERMINAL
