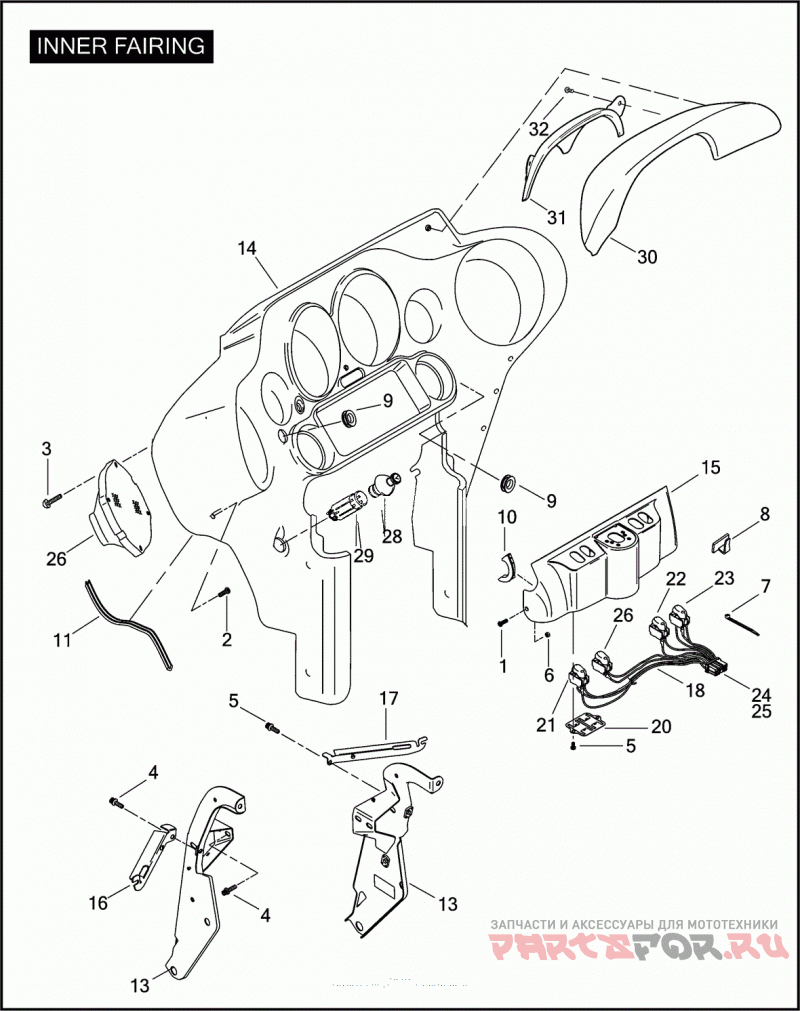

INNER FAIRING

Harley Davidson FLHTCUSE 1PRE CVO ULTRA CLASSIC (2006)

Harley Davidson
#oem кодцена
1
2445
SCREW 1/4-20 X 9/16 BUTTON HD.
2
2446
SCREW 1/4-20 X 5/8 TORX SOCKET BUTTON HD.
3
2965
SCREW NO. 10 X 2 PAN HD., SELF-TAPPING
3
3387
SCREW NO. 10-16 X 1.0 TORX PAN HD., SELF-TAPPING
4
2941
SCREW 1/4-20 X 35/64 SOCKET HD., SELF-TAPPING (GRADE 5)
5
3612
SCREW NO. 10-16 X 1/2 TORX PAN HD., SELF-TAPPING
6
7688
NUT 1/4-20 X 7/32 X 7/16 (GRADE 2)
7
10065
CABLE STRAP
8
10103
CLIP ADHESIVE BACKED
9
11445
GROMMET THROTTLE & CLUTCH CABLES
10
11488
GROMMET HANDLEBAR, RIGHT
10
11492
GROMMET HANDLEBAR, LEFT
11
58317-04
TRIM SEAL INNER FAIRING, 29 IN. LENGTH
12
58478-96B
BRACKET fairing support, left
13
58479-96B
BRACKET fairing support, right
14
58546-06BYS
INNER FAIRING ASSEMBLY (BLACK EMERALD)
14
58546-06BYW
INNER FAIRING ASSEMBLY (AUTUMN HAZE)
14
58546-06BYY
INNER FAIRING ASSEMBLY (BLACK CANDY CRIMSON)
15
58545-06BYS
CAP INNER FAIRING (BLACK EMERALD)
15
58545-06BYW
CAP INNER FAIRING (AUTUMN HAZE)
15
58545-06BYY
CAP INNER FAIRING (BLACK CANDY CRIMSON)
16
58938-96C
SUPPORT inner fairing, left
17
58939-96C
SUPPORT inner fairing, right
18
70271-98
WIRE HARNESS ASSEMBLY INNER FAIRING CAP
19
70585-93
CONNECTOR RED
20
71434-96A
BRACKET SWITCH
21
71505-96
SWITCH SPOT LAMP, W/ 73191-96
22
71513-98
SWITCH CRUISE CONTROL, W/ 70585-93 & 73191-96
23
71535-96
SWITCH ACCESSORY, W/ 73191-96
24
73162-96BK
SOCKET HOUSING 12-PLACE (BLACK)
25
73191-96
SOCKET CONTACT #16-20 GAUGE
26
77029-06
SPEAKER
26
77047-98
ADAPTER & GRILL SPEAKER
27
77092-98
SWITCH SPEAKER, W/ 70585-93 & 73191-96
28
91808-89
ELEMENT CIGARETTE LIGHTER
29
91812-89A
SOCKET, cigarette lighter
30
57860-06
DASH PAD LEATHER WRAPPED
31
57842-06
TRIM DASH PAD
32
4569
SCREW NO. 10-32 X 1/4 HEX SOCKET HD. CAP
32
15339-98
DECAL FOG LAMP SWITCH (HDI) (NOT ILLUSTRATED)
