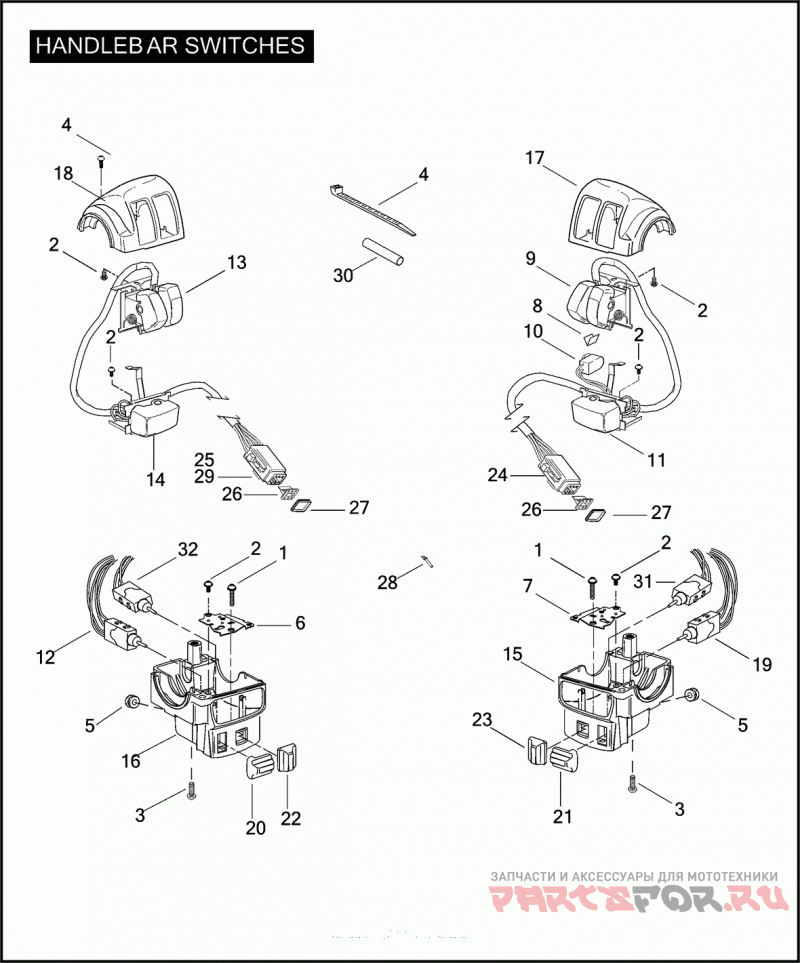

HANDLEBAR SWITCHES

Harley Davidson FLHTCUSE 1PRE CVO ULTRA CLASSIC (2006)

Harley Davidson
#oem кодцена
1
2559
SCREW NO. 6-32 X 3/4 PHILLIPS PAN HD., W/LOCKWASHER
2
2955
SCREW NO. 6-32 X 1/4 PHILLIPS PAN HD., W/LOCKWASHER
3
4292
SCREW NO. 10-24 X 1/2 TORX BUTTON HD.
4
10006
STRAP CABLE
4
10181
STRAP CABLE
5
11402
GROMMET 3/16 IN. I.D.
6
70373-96
BRACKET SWITCH, LOWER LEFT
7
70375-96
BRACKET SWITCH, LOWER RIGHT
10
71621-08
STOPLAMP SWITCH KIT w/ 10181 & 72266-94
12
71642-08
SWITCH KIT volume, w/ 10181 & 72266-94
15
71612-96
HOUSING LOWER RIGHT, (CHROME)
16
56866-06A
HOUSING LOWER LEFT, (CHROME)
17
71614-96
HOUSING UPPER RIGHT
18
71615-96
HOUSING UPPER LEFT
19
71787-08
SWITCH KIT mode select, w/ 10181 & 72266-94
20
71820-98
KNOB +/- AUDIO
21
71822-98
KNOB MODE SELECT, UP/DOWN
22
71824-98
KNOB SWITCH, PTT/SQ -/+
23
71825-96A
KNOB CRUISE CONTROL, SET/RESUME
24
72119-94BK
HOUSING SOCKET, 12-WAY (BLACK)
25
72139-94GY
HOUSING SOCKET, 12-WAY (GRAY)
26
72159-94
LOCK SECONDARY, SOCKET HOUSING, 12-WAY
27
72179-94
SEAL FRONT, SOCKET HOUSING, 12-WAY
28
72191-94
TERMINAL SOCKET, FORMED
29
72195-94
PLUG SEAL
30
72266-94
TUBE HEAT SHRINK, DUAL WALL, 0.3 X 2 INCH (BLACK)
31
71735-08
SWITCH KIT PTT/SQ -/+, w/ 10181 & 72266-94
32
71788-08
SWITCH KIT cruise control, set/resume, w/ 10181 & 72266-94, FB/FF/KB/KH with cruise
