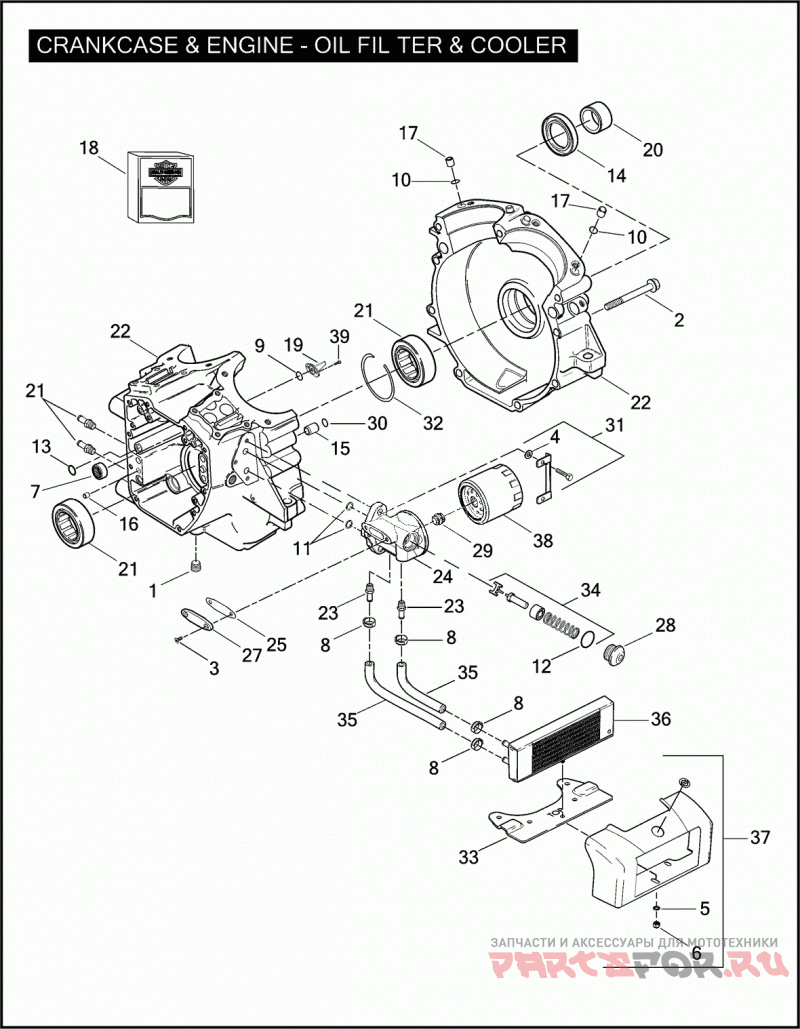

CRANKCASE & ENGINE - OIL FILTER & COOLER

Harley Davidson FLHTCUSE 1PRE CVO ULTRA CLASSIC (2006)

Harley Davidson
#oem кодцена
1
765
Заглушка
2
895
SCREW 5/16-18 X 3.0 HEX FLANGE HD. (GRADE 5)
3
3793A
SCREW 1/4-20 X 5/8 TORX HD. (GRADE 8)
4
6099
WASHER 1/4 X 7/16 X 1/16
5
6703
WASHER 1/4 X 5/8 X 1/16
6
7671
LOCKNUT 1/4-20 NYLON
7
9198
BEARING NEEDLE, LEFT SIDE, CAMSHAFT
8
10198
Зажим
9
11140
Уплотнительное кольцо
10
11273
Уплотнительное кольцо
11
11293
Уплотнительное кольцо
12
11296
Уплотнительное кольцо
13
11301
Уплотнительное кольцо
14
12068
SEAL OIL
15
16574-99A
DOWEL RING
16
16589-99A
DOWEL RING
17
16595-99A
DOWEL RING
18
17045-99D
GASKET KIT cam service
18
17052-99C
GASKET KIT top end
18
17053-99C
GASKET KIT engine overhaul
19
22307-99
JET COOLING, PISTON, W/ 11140
19
24004-03B
BEARING KIT LEFT SIDE W/ 8972, 24605-07 & 35114-02
20
24008-03
SPACER SPROCKET SHAFT
22
24596-99C
CRANKCASE SET W/ 765, 895, 16574-99A, 16589-99A, 16595-99A, 22307-99, & 24604-00C (SILVER)
23
25259-93A
FITTING STRAIGHT, BARBED (BRASS)
24
26013-03
MOUNT KIT OIL-FILTER, W/ 3793A, 25259-93A, 26021-03, 26330-03, 26339-03, 26352-95A, 35071-99A, & 62898-03 (SILVER)
25
26021-03
GASKET BYPASS COVER
26
26314-99
FITTING STRAIGHT
27
26330-03
COVER BYPASS
28
26029-03
CAP END, OIL FILTER MOUNT
29
26352-95A
ADAPTOR OIL-FILTER
30
26432-76A
Уплотнительное кольцо
31
35071-99A
LOCK TAB KIT OIL-FILTER MOUNT, W/ 6099, 11293, & HARDWARE
32
35114-02
RING RETAINING, INTERNAL
33
62108-03
BRACKET MOUNTING, OIL-COOLER
34
62898-03
THERMOSTAT KIT OIL-FILTER MOUNT, W/ 11296, SPRING, VALVE, & SUPPORT
35
62899-03B
HOSE KIT OIL COOLER, WITH UPPER & LOWER HOSE
36
62994-04
OIL COOLER (BLACK)
37
62995-04
COVER KIT OIL COOLER, W/ 6703, 7671, & COVER (CHROME)
38
63798-99A
FILTER OIL (CHROME)
39
68042-99
SCREW NO. 8-32 X 3/8 TORX HD.
