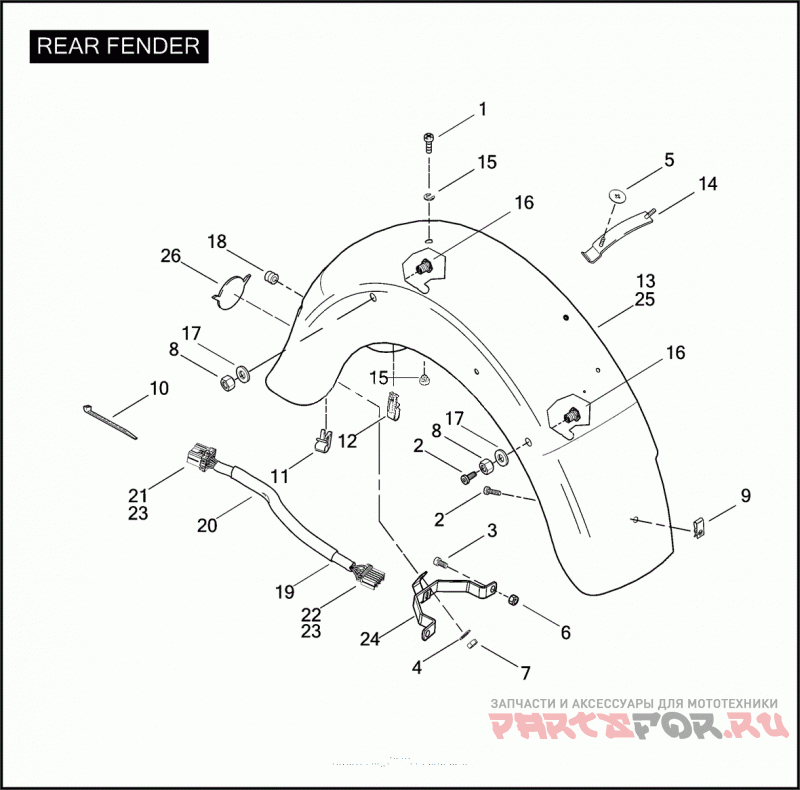

Задний бампер

Harley Davidson FLHTCUSE 1PRE CVO ULTRA CLASSIC (2006)

Harley Davidson
#oem кодцена
1
2952A
SCREW 1/4-20 X 1/2 SEMS TRUSS HD.
2
3676
SCREW 5/16-18 X 5/8 TORX PAN HD.
3
3684
SCREW 5/16-18 X 1 TORX PAN HD.
4
6036
WASHER 17/64 X 1 X 1/16
5
7434
WASHER 1/4 X 1-29/64 X 1/16 NYLON
6
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
7
7683
LOCKNUT 1/4-28 X 5/16 X 7/16
8
7880
NUT 1/2-13 X 7/16 X 3/4 (GRADE 2)
9
8144
NUT CLIP
10
10006
CABLE STRAP LIGHTING HARNESS
11
10083
CLIP T-STUD
12
10084
CLIP T-STUD
13
58702-06
FENDER REAR (PRIME)
13
59583-06BYS
FENDER REAR (BLACK EMERALD)
13
59583-06BYW
FENDER REAR (AUTUMN HAZE)
13
59583-06BYY
FENDER REAR (BLACK CANDY CRIMSON)
14
59174-99
PLATE STUD
14
59699-06
PROTECT TAPE REAR FENDER (NOT ILLUSTRATED)
15
59768-97
FENDER SEAT NUT KIT
16
59786-01
BOSS FENDER MOUNTING, INNER
17
59788-01
Шайба
18
67266-94
GROMMET 1/2 IN. I.D. (NYLON)
19
68772-06
LIGHTING HARNESS CONDUIT, SELF-ADHESIVE
20
70522-06B
CONDUIT self-adhesive
21
73156-96BK
HOUSING SOCKET 6-PLACE
22
73158-96BK
HOUSING SOCKET 8-PLACE
23
73191-96
SOCKET TERMINAL #16-20 AWG
24
91140-04
BRACKET FENDER TO SADDLEBAG SUPPORT
25
59579-06
FENDER REAR (PRIME) (HDI)
25
59661-06BYS
FENDER REAR (BLACK EMERALD) (HDI)
25
59661-06BYW
FENDER REAR (AUTUMN HAZE) (HDI)
25
59661-06BYY
FENDER REAR (BLACK CANDY CRIMSON) (HDI)
26
59423-03
CLOISONN'E REAR FENDER
