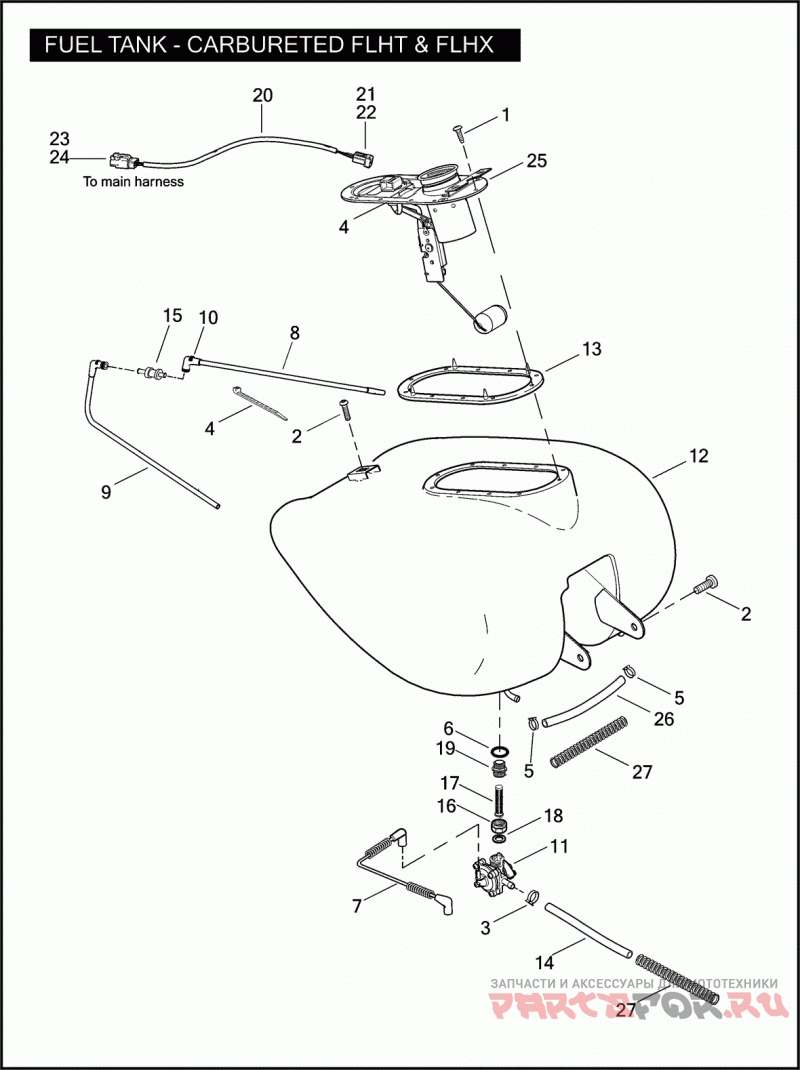

FUEL TANK - CARBURETED FLHT & FLHX

Harley Davidson FLHT 1DDV ELECTRA GLIDE STANDARD (2006)

Harley Davidson
#oem кодцена
1
1311D
SCREW NO. 8-32 X 1/2 PHILLIPS TRUSS HD., SELF-SEALING
2
3634
SCREW 5/16-18 X 1.0 SELF-TAPPING
3
10014
Зажим
4
10065
CABLE STRAP
5
10038A
Зажим
6
11323A
Уплотнительное кольцо
7
26574-99
VACUUM HOSE
8
27201-97A
TUBE TANK TO VALVE, W/ 48469-00
9
27291-97A
TUBE VALVE TO ATMOSPHERE
10
48469-00
Фитинг
11
61338-02
FUEL VALVE BODY
12
61356-03
FUEL TANK (PRIME)
13
61402-02
GASKET SENDING UNIT
14
61911-01
HOSE FUEL, PREFORMED
15
62150-85
VAPOR VALVE
16
62161-02
NUT FUEL VALVE
17
62170-02
FILTER FUEL VALVE
18
62172-02
GASKET FUEL VALVE
19
62842-00
ADAPTER FUEL VALVE
20
70369-06
HARNESS FUEL TANK
21
72033-93
TERMINAL SOCKET #16-20 AWG
22
72263-95
SOCKET HOUSING 4-WAY
23
73154-96BK
SOCKET HOUSING 4-WAY (BLACK)
24
73191-96
TERMINAL SOCKET #16-20 AWG
25
75040-06
MODULE FUEL SENDER, W/ 10065
26
63521-95A
HOSE 5/16 IN. I.D. X 5/8 IN. O.D., RUBBER, 25' LENGTH
27
62555-95
INSULATOR 5/8 IN. I.D., NYLON, 8' LENGTH
