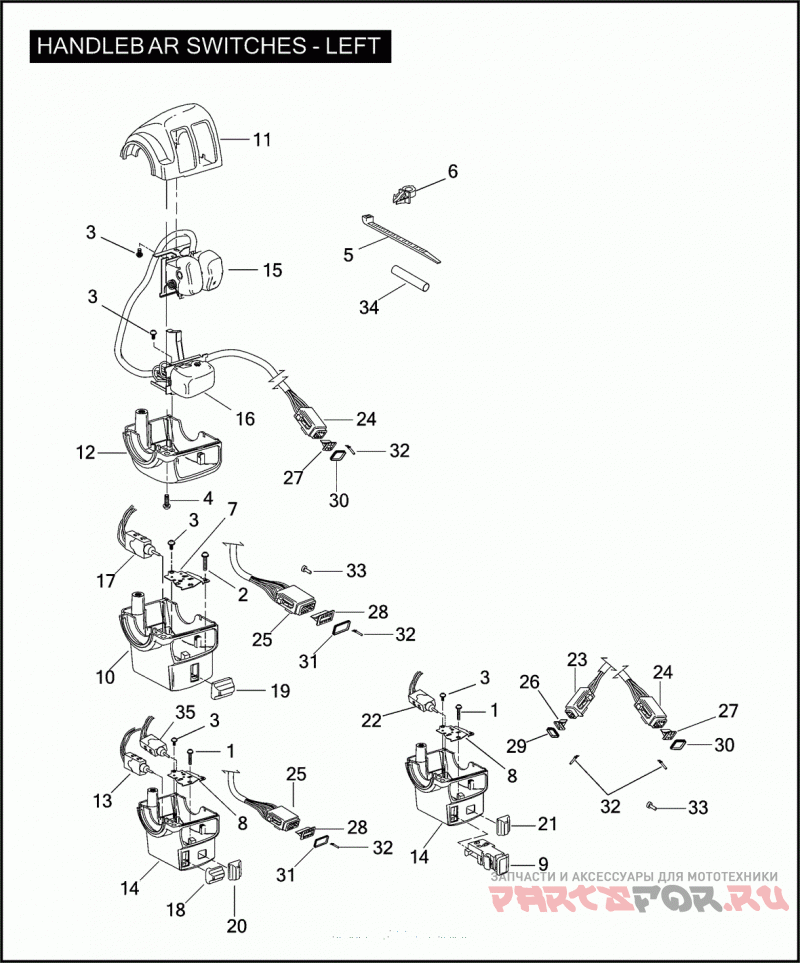

HANDLEBAR SWITCHES - LEFT

Harley Davidson FLHRSI 1FYW ROAD KING CUSTOM (2006)

Harley Davidson
#oem кодцена
3
2955
SCREW NO. 6-32 X 1/4 PHILLIPS PAN HD., W/LOCKWASHER
4
3658
SCREW NO. 10-24 X 1/2 TORX HD. (GRADE 5)
5
10181
CABLE STRAP
8
70373-96
BRACKET SWITCH, LOWER LEFT
9
71184-04
LENS LEFT
11
71567-96
HOUSING UPPER LEFT
12
71568-96A
HOUSING LOWER LEFT
15
71682-06A
SWITCH ASSEMBLY, headlamp high/low & horn, w/ 10181 & 72266-94
16
71685-06A
SWITCH ASSEMBLY, left turn signal, w/ 10181 & 72266-94
24
72116-94BK
SOCKET HOUSING SEALED 6-WAY (BLACK) (REPLACES GRAY CONNECTOR)
27
72156-94
SOCKET LOCK SECONDARY, 6-WAY
30
72176-94
FRONT SEAL 6-WAY PLUG
32
72191-94
TERMINAL SOCKET
34
72266-94
HEAT SHRINK TUBE DUAL WALL, .3 IN. X 2 IN.
