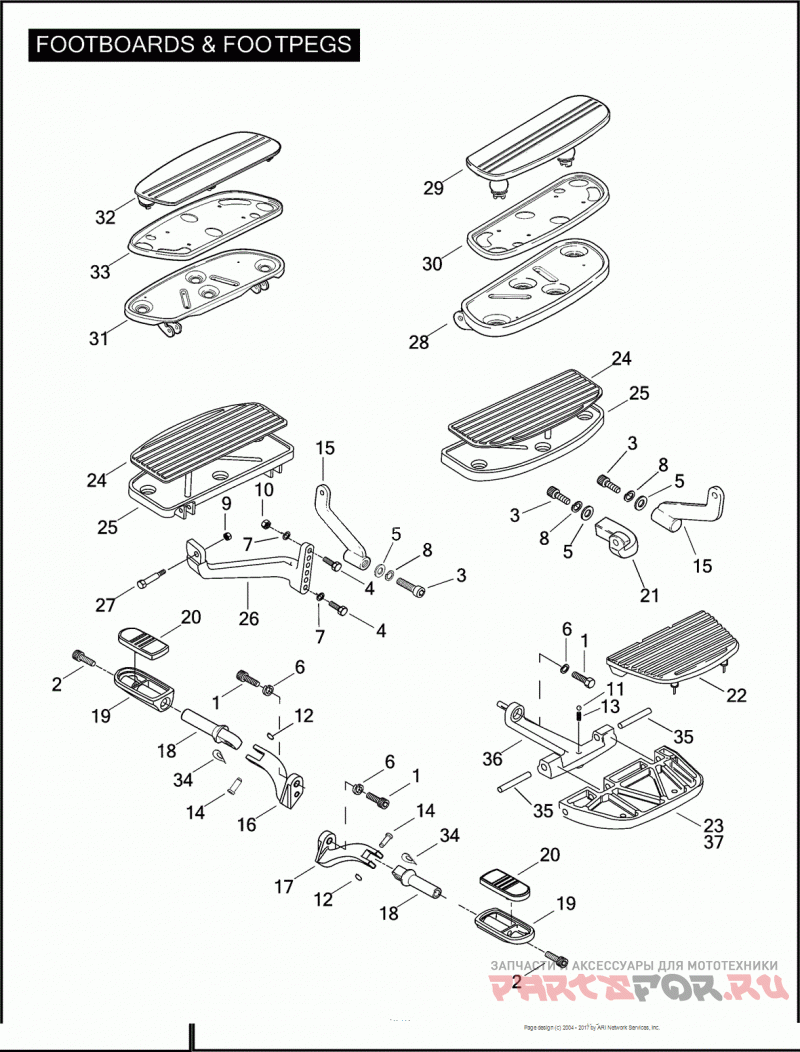

FOOTBOARDS & FOOTPEGS

Harley Davidson FLHRSI 1FYW ROAD KING CUSTOM (2006)

Harley Davidson
#oem кодцена
2
2708A
SCREW 5/16-18 X 1 SOCKET HD.
3
3599
SCREW 1/2-13 X 1-1/8 KNURLED HD. (GRADE 8)
4
4017
BOLT 5/16-18 X 1 HEX HD. (GRADE 5)
4
4279
SCREW NO. 8-32 X 1/4 TORX HD. (GRADE 8)
5
6738
WASHER 17/32 X 7/8 X 7/64
7
7041
LOCKWASHER 5/16
8
7068
LOCKWASHER 1/2
9
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
10
7748W
NUT 5/16-18 X 1/4 X 1/2 (GRADE 2)
12
11304
RING RETAINING, PASSENGER FOOTPEG SUPPORT
13
33085-74
Пружина
14
45041-01A
CLEVIS PIN PASSENGER FOOTPEG SUPPORT
15
47365-83C
BRACKET FRONT FOOTBOARD, W/ 3599
16
49015-04A
SUPPORT RIGHT PASSENGER FOOTPEG (CHROME)
17
49036-04A
SUPPORT LEFT PASSENGER FOOTPEG (CHROME)
18
50208-04
MOUNT PASSENGER FOOTPEG
19
50345-04
FOOTPEG PASSENGER
20
50350-04
PAD PASSENGER FOOTPEG
21
50518-83B
BRACKET KIT RIGHT REAR, W/ 3599
23
50613-91A
FOOTREST PASSENGER
26
50622-83C
BRACKET MOUNTING KIT LEFT-REAR, W/ 4017
26
50631-04
FOOTBOARD KIT RIDER (LEFT & RIGHT-HAND) ASSEMBLIES (NOT ILLUSTRATED), W/ 7716 & 50635-82
27
50635-82A
SHOULDER BOLT FOOTBOARD
28
50683-04
FOOTBOARD BOTTOM ASSEMBLY (RIGHT-HAND)
29
50684-04
RUBBER PAD FOOTBOARD (RIGHT-HAND)
30
50685-04
TOP PLATE FOOTBOARD (RIGHT-HAND)
31
50688-04
FOOTBOARD BOTTOM ASSEMBLY (LEFT-HAND)
32
50689-04
RUBBER PAD FOOTBOARD (LEFT-HAND)
33
50690-04
TOP PLATE FOOTBOARD (LEFT-HAND)
34
50912-72
SPRING WASHER PASSENGER FOOTPEG
