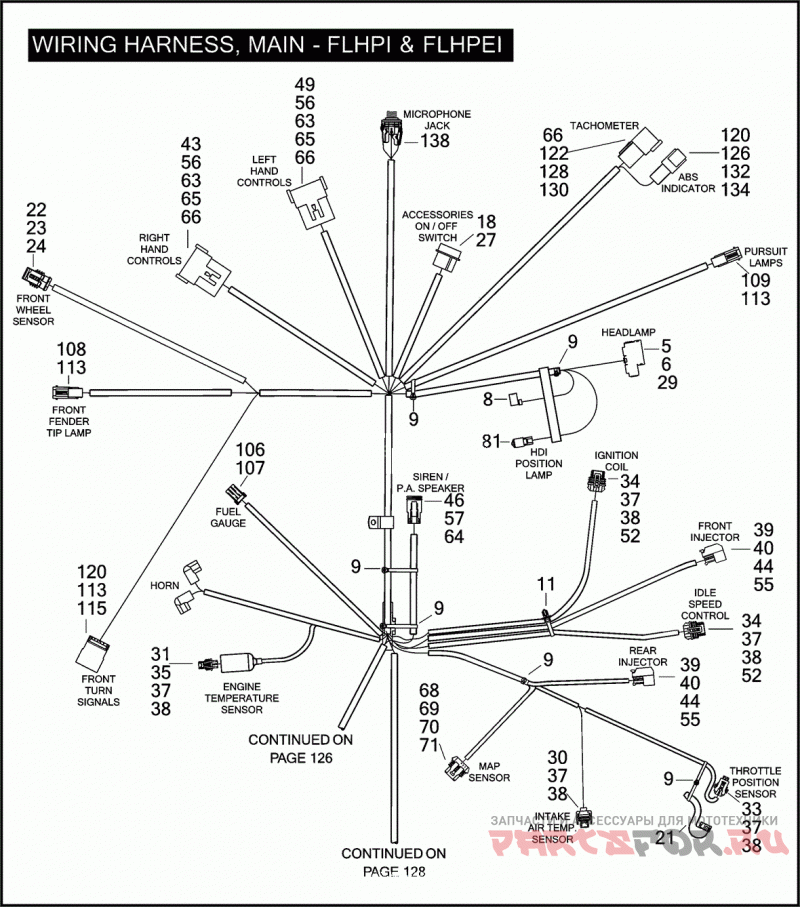

WIRING HARNESS, MAIN - FLHPI & FLHPEI

Harley Davidson FLHPI 1FHW ROAD KING POLICE (2006)

Harley Davidson
#oem кодцена
70260-06
WIRING HARNESS MAIN - NON-ABS
70268-06
WIRING HARNESS MAIN - ABS
1
9819
TERMINAL 1/4 IN. RING, #12 AWG
2
9825
TERMINAL 1/4 IN. RING, #14-18 AWG
3
9838
TERMINAL 1/4 IN. RING, #10-12 AWG
4
9842
TERMINAL 5/16 IN. RING, #10-12 AWG
5
9847
WIRE TERMINAL FEMALE SPADE, RIGHT
6
9848
WIRE TERMINAL FEMALE SPADE, LEFT
7
9937
TERMINAL 1/4 IN. FEMALE SPADE, #14-16 AWG
8
9898
TERMINAL 1/4 IN. RIGHT ANGLE, #14-16 AWG
9
10065
CABLE STRAP
10
10073
CABLE STRAP
11
10177
CABLE STRAP
12
10277
CLIP HARNESS
13
31504-91B
RELAY W/ DIODE
14
31511-01B
RELAY W/ DIODE
15
31586-07
RELAY
16
67488-04
SWITCH ASSEMBLY RESET
17
68563-04A
FLASHER pursuit
18
70291-89
HOUSING 4-PIN
19
70598-99
BOOT ENGINE TEMPERATURE SENSOR
20
70604-06
BOOT 2-WAY DTM (BLACK)
21
70976-06
WIRE GUIDE
22
72006-05
TERMINAL SOCKET, #16-20 AWG
23
72007-05
HOUSING 2-WAY SOCKET
24
72011-05
SEAL WIRE, #16-20 AWG
25
72032-93
SEAL PIN
26
72033-93
TERMINAL SOCKET
27
72039-71A
PIN SINGLE SOCKET
28
72046-79
CONNECTOR SPADE TERMINALS
29
72056-92
HOUSING FEMALE 3-PLACE
30
72062-06
HOUSING 2-WAY SOCKET
31
72063-06
HOUSING 2-WAY SOCKET
32
72064-06
HOUSING 3-WAY SOCKET
33
72065-06A
HOUSING 3-WAY SOCKET
34
72066-06A
SOCKET HOUSING 4-way female (black)
35
72076-00
TERMINAL SOCKET, #18 AWG
36
72077-00
SEAL PIN
37
72094-06
TERMINAL SOCKET, #16-20 AWG
38
72096-06
WIRE SEAL #18-20 AWG (YELLOW)
39
72098-06
HOUSING 2-WAY SOCKET
40
72099-06
WIRE SEAL #16-18 AWG (BLUE)
41
72100-04
HOUSING 1-WAY
42
72104-94BK
RECEPTACLE 4-WAY PIN (BLACK)
43
72109-94BK
RECEPTACLE 12-WAY PIN (BLACK)
44
72110-06
TERMINAL SOCKET, #16-18 AWG
45
72111-06
LOCK SECONDARY, 2-WAY SOCKET
46
72112-94BK
PLUG 2-WAY SOCKET (2) (BLACK)
47
72113-94BK
HOUSING 3-WAY SOCKET (BLACK)
48
72124-94GY
HOUSING 4-WAY PIN (GRAY)
49
72129-94GY
PLUG 12-WAY PIN (GRAY)
50
72130-04
HOUSING ASSEMBLY
