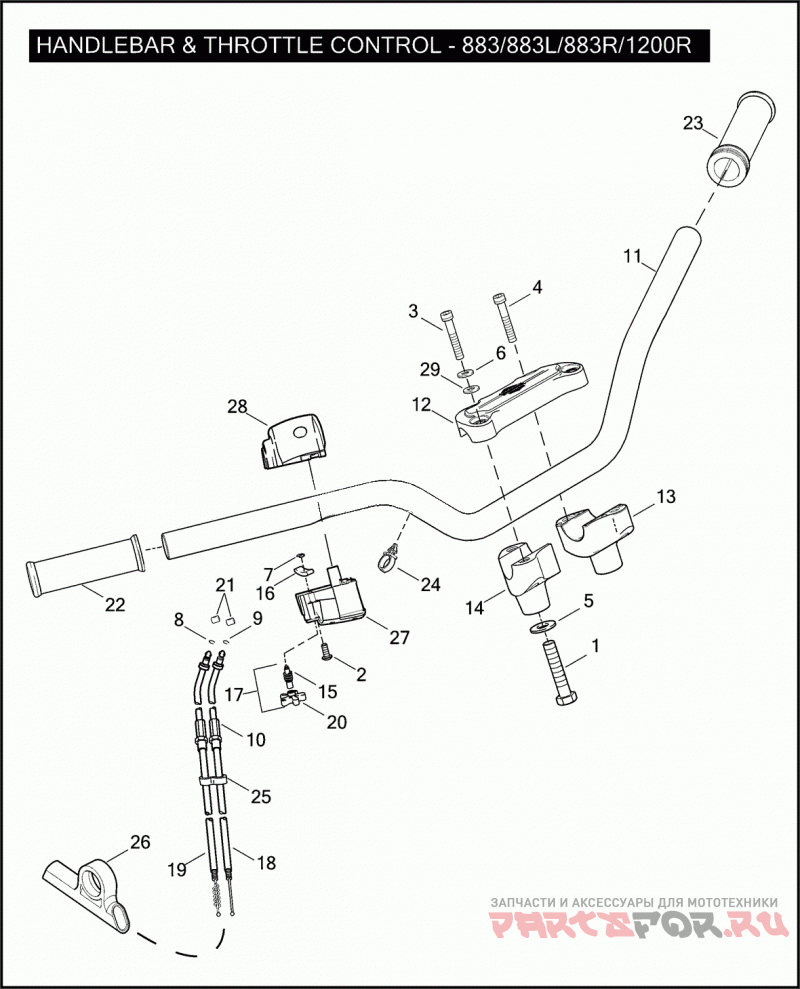

HANDLEBAR & THROTTLE CONTROL - 883/883L/883R/1200R

Harley Davidson XL883R 4CKM SPORTSTER 883R (2005)

Harley Davidson
#oem кодцена
1
3605
BOLT 1/2-13 X 2-1/2 HEX HD. (GRADE 5)
2
3658
SCREW NO. 10-24 X 1/2 TORX HD. (GRADE 5)
3
4326A
SCREW 5/16-18 X 2 SOCKET HD.
4
4816A
SCREW 5/16-18 X 1-1/2 SOCKET HD.
5
6590HW
WASHER 1/2 X 1-1/8 X 3/32
6
6702
WASHER 5/16 X 11/16 X 1/16
7
11155
Стопорное кольцо
8
11271
RING RETAINER - IDLE
9
11272
RING RETAINER - THROTTLE
10
38653-01
BOOT CABLE, THROTTLE
11
56085-83A
Руль
12
56115-95
CLAMP HANDLEBAR - UPPER (BLACK)
13
56116-82A
CLAMP HANDLEBAR - LOWER LEFT
14
56117-82A
CLAMP HANDLEBAR - LOWER RIGHT
15
56394-74
SPRING ADJUSTING SCREW
16
56396-74A
FRICTION SPRING THROTTLE GRIP
17
56397-74C
KIT THROTTLE ADJUSTING SCREW, W/ 11155, 56394-74 & 56402-83A
18
56400-96
THROTTLE CONTROL ASSEMBLY
19
56401-96
IDLE CONTROL ASSEMBLY
20
56402-83A
ADJUSTING SCREW THROTTLE
21
56508-76
FERRULE
22
56666-04
GRIP AND SLEEVE THROTTLE
23
56667-04
HANDLEBAR GRIP
24
70345-84
RETAINER WIRE HARNESS
25
70504-81
CLIP THROTTLE CABLES
26
70518-04
GUIDE THROTTLE CABLE
27
71563-96
HOUSING SWITCHES & THROTTLE CONTROL - LOWER
28
71564-96
HOUSING SWITCHES & THROTTLE CONTROL - UPPER
