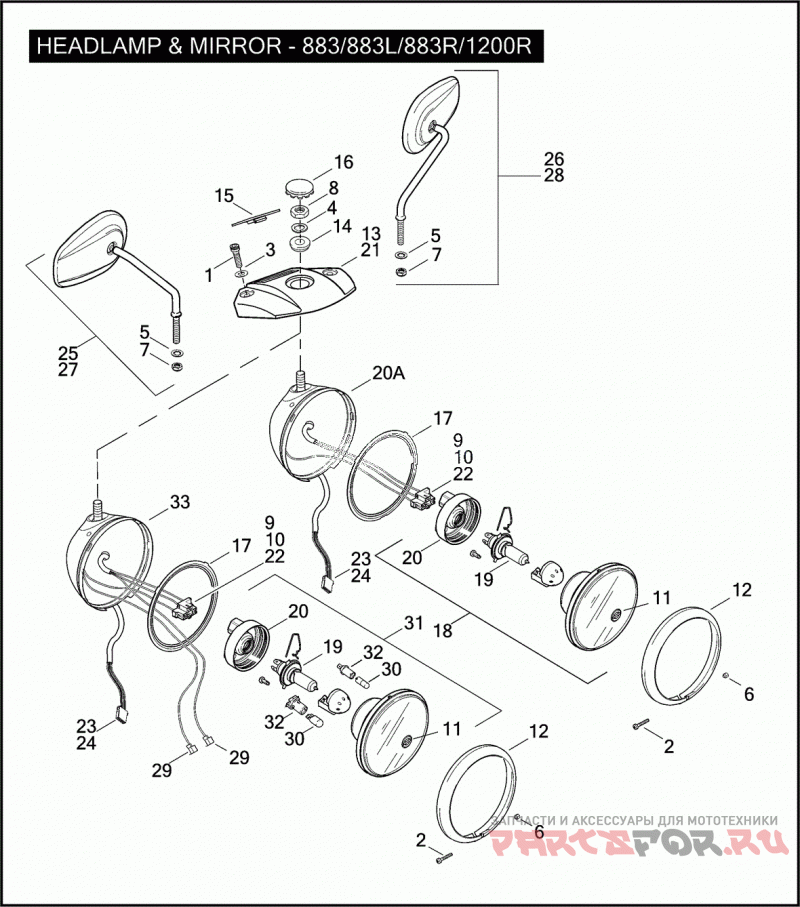

HEADLAMP & MIRROR - 883/883L/883R/1200R

Harley Davidson XL883 4CAM SPORTSTER 883 (2005)

Harley Davidson
#oem кодцена
1
2708A
SCREW 5/16-18 X 1 SOCKET HD.
2
3514
SCREW NO. 8-32 X 1 FILLISTER HD. (GRADE 5)
3
6702
WASHER 5/16 X 11/16 X 1/16
4
7068
LOCKWASHER 1/2
5
7127
LOCKWASHER 5/16 INTERNAL TOOTH
6
7606
LOCKNUT NO. 8-32 X 1/4 X 1/4 HEX (CHROME)
7
7727
LOCKNUT 5/16-24 X 1/4 X 1/2
8
7880
NUT 1/2-13 X 7/16 X 3/4 (GRADE 2)
9
9847
CONNECTOR RIGHT
10
9848
CONNECTOR LEFT
11
67667-05
MEDALLION HEADLAMP, 5-3/4
12
67790-93A
BEZEL
13
67805-92
BRACKET HEADLAMP
14
67815-59A
WASHER HEADLAMP
15
67834-83
TRIM HEADLAMP BRACKET
16
67865-89
Заглушка
17
67883-04A
ADAPTER RING
18
68297-05A
LAMP ASSEMBLY WITH 15, 21, 22
19
68329-03
BULB
20
68380-05
BOOT HEADLAMP CONNECTOR
20A
69619-02A
HEADLAMP SHELL ASSEMBLY 5-3/4, W/ 9, 10, 22, 23, 24, 29
22
72056-92
HOUSING FEMALE
23
73154-96BK
HOUSING SOCKET, 4-PLACE
24
73191-96
SOCKET #16-20 GAUGE
27
91846-03B
MIRROR KIT RIGHT, LONG (CHROME)
28
91848-03B
MIRROR KIT LEFT, LONG (CHROME)
29
9898
TERMINAL FLAG
30
53438-92
BULB
30
53436-97
BULB WEDGE BASE
31
68335-05A
LAMP ASSEMBLY WITH 14, 15, 21, 22, 23 (LEFT) (AUSTRALIA, ENGLAND, JAPAN)
31
68341-05A
LAMP ASSEMBLY WITH 14, 15, 21, 22, 23 (RIGHT) (HDI, ASIA-PACIFIC)
32
68650-92
SOCKET BULB (2 SPADE)
32
68653-05
SOCKET BULB (WEDGE BASE)
33
69619-02A
HEADLAMP SHELL ASSEMBLY 5-3/4, W/ 9, 10, 22, 23, 24, 29
