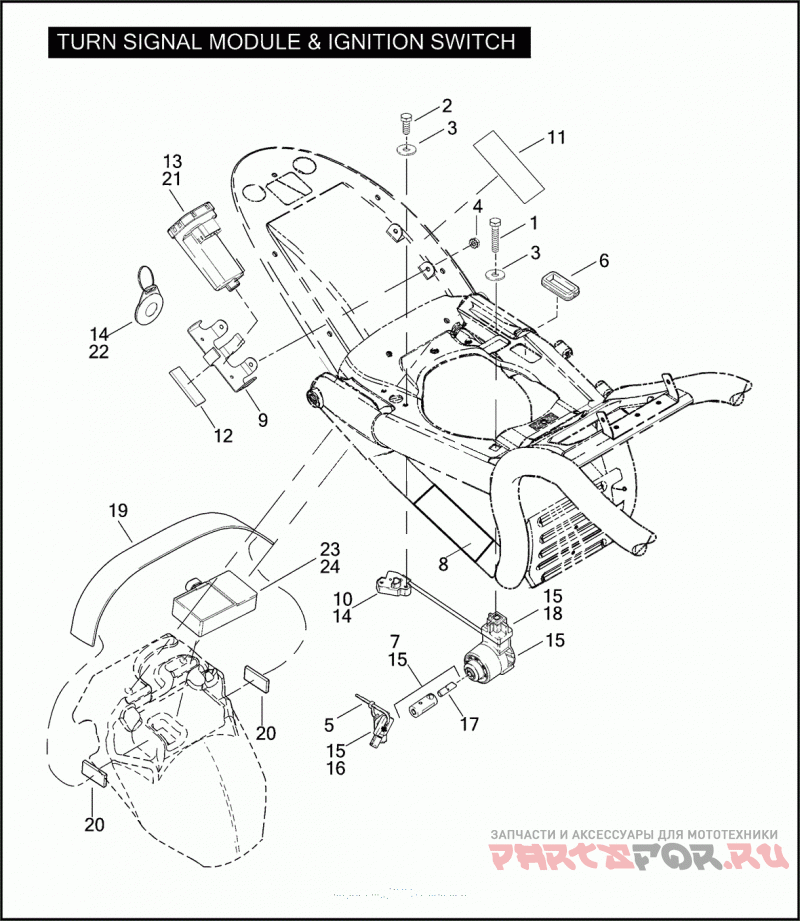

TURN SIGNAL MODULE & IGNITION SWITCH

Harley Davidson VRSCSE 1PMG CVO V-ROD (2005)

Harley Davidson
#oem кодцена
1
3708M
SCREW M6 X 1.0 X30 HEX HD.
2
3711M
SCREW M6 X 1.0 X 16 HEX HD.
3
6837M
WASHER M6 REGULAR
4
7629
NUT NO. 10-32 X 3/8 KEPS
5
10065
CABLE STRAP
6
11548
Уплотнитель резиновый
7
45804-01A
FORK LOCK WITH O-RING, BEARING AND 71578-01A (SPECIFY KEY NUMBER)
8
48493-01
TAPE PROTECTIVE
9
48096-00
BRACKET MODULE
10
52385-01
LOCK ASSEMBLY
11
59283-01
ADHESIVE STRIP
12
66494-01
Подушка изолирующая
13
68920-01D
MODULE TURN SIGNAL CANCELLER (DOMESTIC, HDI)
13
68922-00D
MODULE SECURITY SYSTEM
14
68926-00
REMOTE CONTROL FOB
15
71403-01
IGNITION SWITCH (SPECIFY KEY CODE), W/ 5, 10, 16 & 18
16
61081-92
COVER KEY HEAD SET (NOT ILLUSTRATED)
16
71031-04
KEY DECO CVO MARK
17
71578-01A
Плунжер
18
71702-01
Адаптер
19
59274-01
STRAP SIREN (HDI, AUSTRALIA, ENGLAND)
20
59275-01
FASTENER (HDI)
21
68924-00D
MODULE SECURITY SYSTEM (HDI, AUSTRALIA, ENGLAND)
22
68927-00
REMOTE CONTROL FOB (HDI, AUSTRALIA, ENGLAND)
23
68958-07C
SIREN (DOMESTIC, HDI, AUSTRALIA, ENGLAND)
24
69309-10
BATTERY SIREN (HDI)
