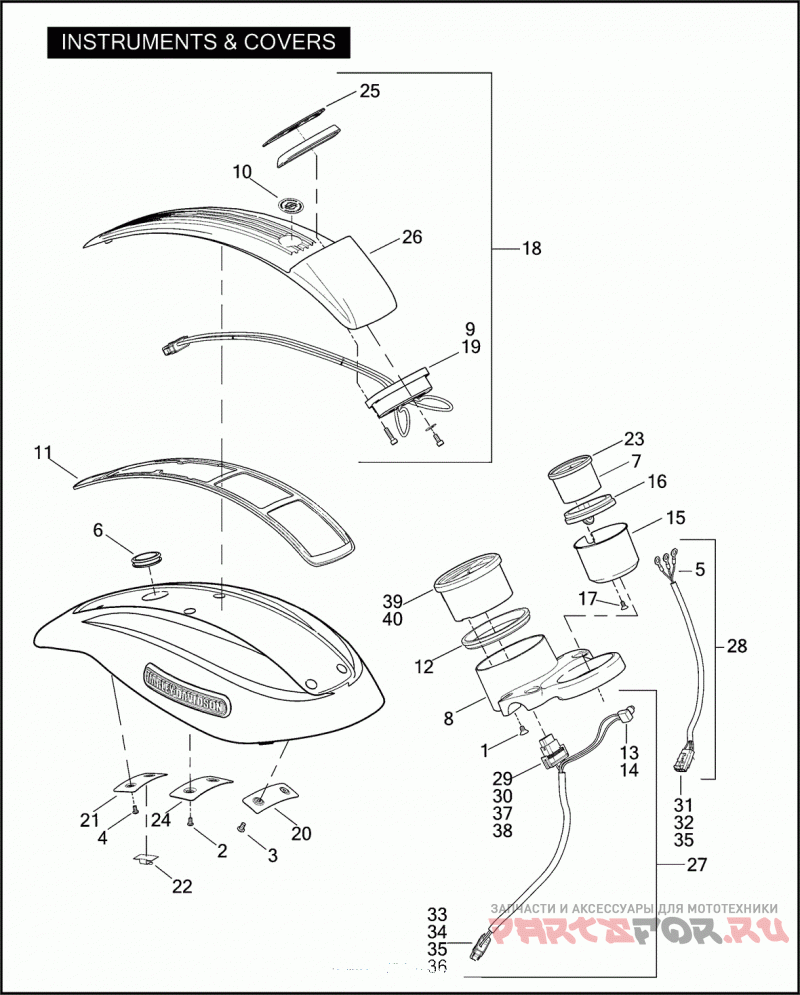

INSTRUMENTS & COVERS

Harley Davidson VRSCSE 1PMG CVO V-ROD (2005)

Harley Davidson
#oem кодцена
1
2548
SCREW NO.8-32 X 3/4 SOCKET HD., W/LOCKPATCH
2
4404M
SCREW M5 X 0.8 X 8 BUTTON SOCKET HD.
3
4488M
SCREW M5 X 0.8 X 10 HEX BUTTON HD.
4
4489M
SCREW M5 X 0.8 X 6 HEX BUTTON HD.
5
9856
Терминал
6
11571
Уплотнитель резиновый
7
52425-98
BULB TACHOMETER, REPLACEMENT
8
56505-05
BRACKET SPEEDOMETER/TACHOMETER
10
62256-05
MEDALLION
11
66171-05
Прокладка
12
67121-95A
CUSHION SPEEDOMETER
13
67488-04
SWITCH RESET
14
67880-94
BOOT RESET SWITCH
15
67925-04
CAN HOUSING TACHOMETER
16
67952-96
GASKET TACHOMETER
17
67956-96
SCREW 1/4-20 X 3/4 SOCKET FLAT HD.
18
69238-05A
CONSOLE ASSEMBLY W/ 69239-05, 69275-05
19
69239-05A
CONSOLE DISPLAY LED W/ 61412-05
20
69242-05
BRACKET FRONT
21
69243-05
BRACKET REAR
22
10103
Зажим
23
69245-05
TACHOMETER
24
69266-05
BRACKET MIDDLE
25
69275-05
Линза
26
71321-05
CONSOLE AIRBOX
27
71771-05
WIRE HARNESS SPEEDOMETER
28
71776-05
WIRE HARNESS TACHOMETER
29
72130-04
HOUSING SOCKET 12-WAY (BLACK)
30
72189-04
SEAL PIN
31
74113-98BK
HOUSING SOCKET (BLACK)
32
74153-98
SECONDARY LOCK 3-WAY
33
74158-98
SECONDARY LOCK 8-WAY
34
74118-98BK
HOUSING SOCKET 8-WAY (BLACK)
35
74191-98
TERMINAL SOCKET
36
74195-98
SEAL PIN
37
74196-04
TERMINAL SOCKET
38
74197-04
SECONDARY LOCK 12-WAY
39
74480-05
SPEEDOMETER (CALIFORNIA, 49 STATE)
40
70900320
SPEEDO, CALIBRATED, KPH/VRSCSE
40
67580-05
SPEEDOMETER (UNITED KINGDOM, HDI, DUAL-RANGE)
