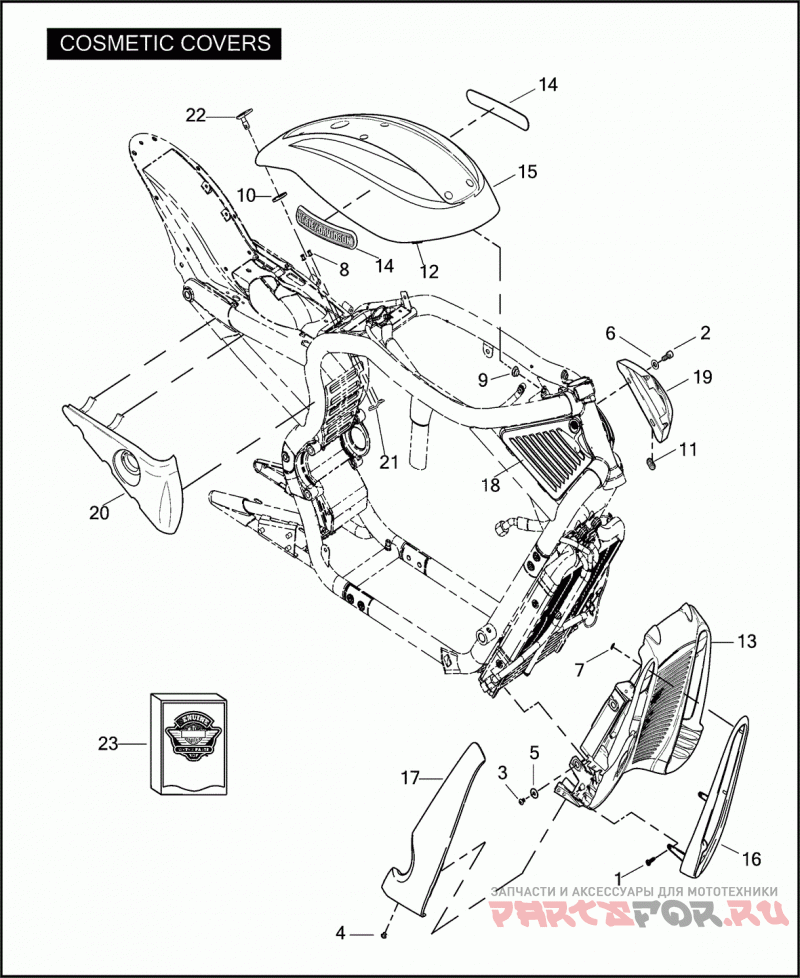

COSMETIC COVERS

Harley Davidson VRSCSE 1PMG CVO V-ROD (2005)

Harley Davidson
#oem кодцена
1
3612
SCREW NO. 10-16 X 1/2 TORX PAN HD., SELF-TAPPING
2
3707M
SCREW M6 X 1.0 X 10 SOCKET HD.
3
3716M
SCREW M6 X 1.0 X 12 BUTTON SOCKET HD.
4
3731M
SCREW M6 X 1.0 X 12 SOCKET BUTTON HD., W/LOCKPATCH
5
6837M
WASHER M6 REGULAR
6
6872M
WASHER M6 SPECIAL
7
8130
SPEED NUT
8
8235
заклёпка
9
11519
Втулка
10
11523
Шайба
11
11524A
Резиновое Крепление
12
11558
BUMPER AIR BOX
13
26788-01A
COVER RADIATOR
13
48403-03
PROTECTIVE TAPE (NOT ILLUSTRATED)
14
62255-05
MEDALLION
15
66097-05BPK
COVER ASSEMBLY AIRBOX (CANDY BLUE)
15
66097-05BPL
COVER ASSEMBLY AIRBOX (ORANGE PEARL)
15
66097-05BPM
COVER ASSEMBLY AIRBOX (CANDY CHERRY)
16
66115-01
BEZEL INLET RADIATOR, RIGHT
16
66116-01
BEZEL INLET RADIATOR, LEFT
17
66172-05CFZ
RADIATOR TRIM COVER, LEFT (ELECTRIC ORANGE)
17
66172-05BPH
RADIATOR TRIM COVER, LEFT (CANDY BLUE)
17
66172-05BPJ
RADIATOR TRIM COVER, LEFT (CANDY CHERRY)
17
66173-05CFZ
RADIATOR TRIM COVER, RIGHT (ELECTRIC ORANGE)
17
66173-05BPH
RADIATOR TRIM COVER, RIGHT (CANDY BLUE)
17
66173-05BPJ
RADIATOR TRIM COVER, RIGHT (CANDY CHERRY)
18
66337-05
SIDECOVER FRONT , RIGHT
19
66338-05
SIDECOVER FRONT , LEFT
20
66339-05
SIDE COVER FUEL CELL RIGHT
20
66342-05
SIDE COVER FUEL CELL LEFT
21
66712-01
S-SPRING
22
66713-01
STUD BAIL HEAD
23
91691-05
COVER MOTORCYCLE
