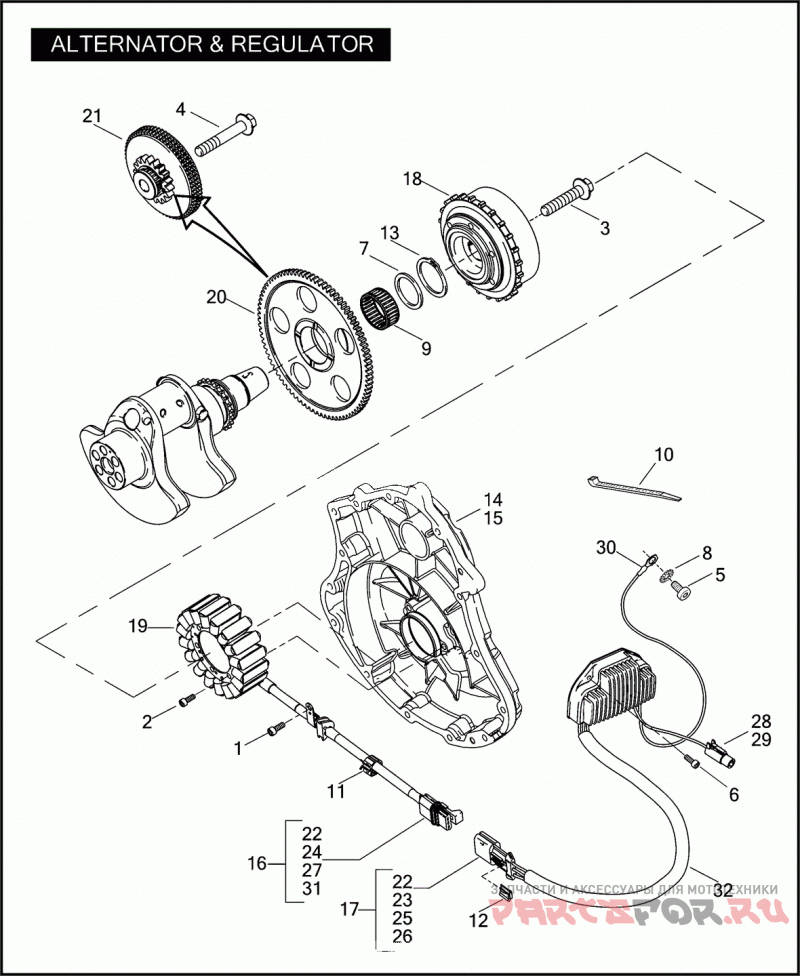

ALTERNATOR & REGULATOR

Harley Davidson VRSCB 1HBZ VRSCB V-ROD (2005)

Harley Davidson
#oem кодцена
1
965M
SCREW M6 X 1.0 X 12 SOCKET HD.
2
978M
SCREW M6 X 1.0 X 40 SOCKET HD.
3
1035M
SCREW M14 X 1.5 X 70 HEX FLANGE HD.
4
1027M
SCREW M10 X 1.5 X 60 HEX FLANGE HD.
5
3701M
SCREW M10 X 1.5 X 25 SOCKET HD.
6
3729M
SCREW M6 X 1.0 X 16 SOCKET HD.
7
6176MA
WASHER 37 X 47 X 2.5
8
6839M
WASHER M10 NARROW
9
8002K
NEEDLE ROLLER AND CAGE ASSEMBLY
10
10006
CABLE STRAP
11
10108
Зажим
13
11328M
RETAINING CLIP
14
25881-01KA
COVER KIT/STATOR W/ 1, 2, 15, 19, 24 & 27 (CHROME)
15
25895-04K
ALTERNATOR COVER (CHROME)
16
25918-04K
STATOR CONNECTOR KIT W/ 22, 24, 27 & 31
17
25919-04K
REGULATOR CONNECTOR KIT W/ 22, 23, 25 & 26
18
30731-01K
ROTOR ASSEMBLY W/ BALL CATCH ASSEMBLY
19
30734-04K
STATOR ASSEMBLY W/ PLUG ASSEMBLY STATOR
20
31301-01K
GEAR BALL CLUTCH
21
31303-01K
LIMITER ASSEMBLY
22
72087-04
SEAL CABLE
23
72088-04
TERMINAL PIN
24
72089-04
SOCKET HOUSING 3-WAY FEMALE (BLACK)
25
72090-04
PIN HOUSING 3-WAY MALE (BLACK)
26
72091-04
LOCK SECONDARY 3-WAY
27
72092-04
LOCK SECONDARY 3-WAY
28
72171-01
SOCKET TERMINAL 8-10 AWG
29
72183-01
SOCKET HOUSING 1-WAY (BLACK)
30
72249-94
SHRINK TUBE (BLACK)
31
72308-97
TERMINAL FEMALE
32
74440-01
VOLTAGE REGULATOR W/ 12, 22, 23, 25, 26, 28, 29 & 30
