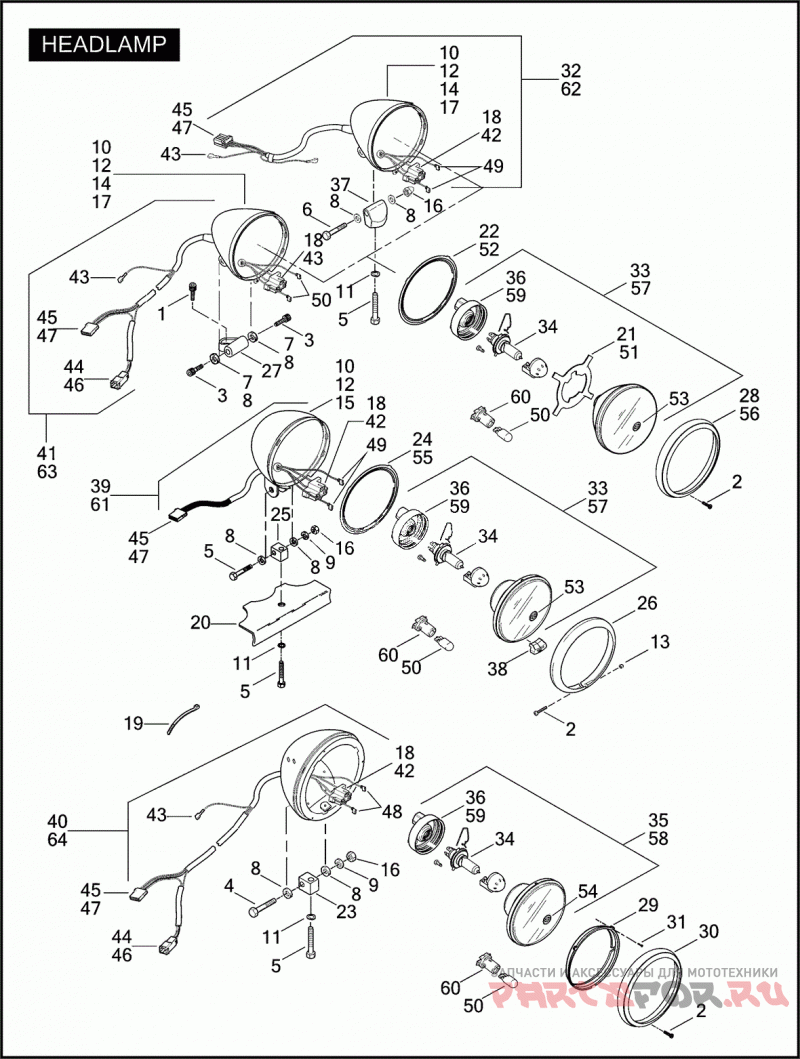

Фара

Harley Davidson FXSTDI 1JBB SOFTAIL DEUCE (2005)

Harley Davidson
#oem кодцена
2
3615
SCREW NO. 8-32 X 1, PAN HD., THREAD-CUTTING
5
3775
SCREW 3/8-16 X 2 HEX HD. (GRADE 5)
6
3509
BOLT 3/8-16 X 2-3/4 HEX HD. (GRADE 8)
8
6474
WASHER 3/8 X 5/16 X 3/16 HARDENED
10
7073
LOCKWASHER 1/4 EXTERNAL TOOTH
11
7130W
LOCKWASHER 3/8 INTERNAL TOOTH
12
7230
LOCKWASHER 1/4 EXTERNAL TOOTH
14
7689W
JAMNUT 1/4-20 X 5/32 X 7/16 (GRADE 2)
16
7862
ACORN NUT 3/8-16 (CHROME)
17
8625
заклёпка
18
9847
WIRE TERMINAL FEMALE SPADE - R.H.
18
9848
WIRE TERMINAL FEMALE SPADE - L.H.
19
10065
CABLE STRAP
21
67601-94A
GASKET HEADLAMP
22
67603-94A
ADAPTER RING
28
67894-93A
TRIM RING CHROME
32
69715-05A
HEADLAMP SHELL ASSEMBLY 5-3/4 INCH
33
68297-05A
LAMP ASSEMBLY WITH 15, 21, 22
34
68329-03
BULB - HB2/H4
36
68380-05
чехол
37
69163-00
MOUNTING BLOCK
42
72056-92
INSULATOR SPADE TERMINAL (3-WAY)
43
72249-94
SHRINK TUBE
45
73154-96BK
SOCKET HOUSING 4-PLACE
47
73191-96
SOCKET CONTACT 16-20 GA.
49
9898
TERMINAL FEMALE FLAG (HDI)
50
53436-97
BULB POSITION LAMP (HDI)
51
67601-94A
GASKET HEADLAMP (HDI)
52
67603-94A
ADAPTER RING (HDI)
53
67667-05
MEDALLION HEADLAMP 5-3/4 INCH
54
67668-05
MEDALLION HEADLAMP 7 INCH
56
67894-93A
TRIM RING (HDI)
57
68335-05A
LAMP ASSEMBLY WITH 14, 15, 21, 22, 23 (LEFT) (AUSTRALIA, ENGLAND, JAPAN)
57
68341-05A
LAMP ASSEMBLY WITH 14, 15, 21, 22, 23 (RIGHT) (HDI, ASIA-PACIFIC)
59
68380-05
BOOT (HDI)
60
68653-05
SOCKET POSITION LAMP (HDI)
62
69715-05A
HEADLAMP SHELL ASSEMBLY (HDI) 5-3/4 INCH
