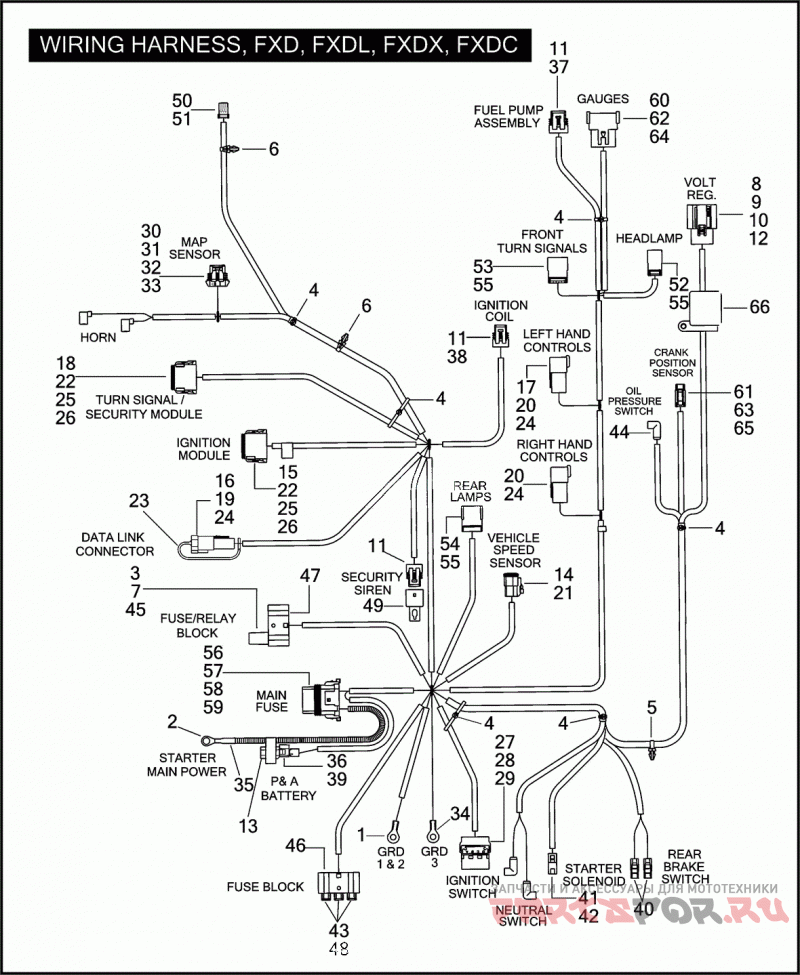

WIRING HARNESS, FXD, FXDL, FXDX, FXDC

Harley Davidson FXDC 1GTV DYNA SUPER GLIDE CUSTOM (2005)

Harley Davidson
#oem кодцена
69558-04A
MAIN WIRING HARNESS
1
9825
TERMINAL RING TYPE
2
9842
TERMINAL RING TYPE
3
9937
Терминал
4
10065
CABLE STRAP
5
10177
CABLE STRAP
6
10270
CABLE STRAP
7
31522-00C
RELAY W/ DIODE (STARTER)
8
70202-97
TERMINAL SOCKET
9
72030-97
SOCKET HOUSING
10
72031-97
TERMINAL SOCKET
11
72033-93
TERMINAL SOCKET
12
72069-97
SEAL CABLE
12
72093-04
SEAL PIN (NOT ILLUSTRATED)
13
72100-04
TERMINAL HOUSING
14
72113-94BK
SOCKET HOUSING 3-WAY (BLACK)
15
72119-94BK
SOCKET HOUSING 12-WAY (BLACK)
16
72124-94GY
PIN HOUSING 4-PLACE (GRAY)
17
72106-94BK
PIN HOUSING 6-PIN (BLACK)
18
72139-94GY
SOCKET HOUSING 12-WAY W/ 72179-94 (GRAY)
19
72144-94
PIN LOCK 4-WAY
20
72146-94
PIN LOCK SECONDARY, 6-WAY
21
72153-94
SOCKET LOCK 12-WAY
22
72159-94
SOCKET LOCK 12-WAY
23
72164-94A
WEATHER PLUG 4-WAY PIN
24
72190-94
TERMINAL PIN
25
72191-94
TERMINAL SOCKET
26
72195-94
SEAL PIN
27
72205-94
CONNECTOR PLUG 4-WAY
28
72208-94
TERMINAL MALE, 12 GAUGE
29
72210-94
TERMINAL MALE, 14 GAUGE
30
72213-94
TERMINAL FEMALE, 18-21 GAUGE
31
72214-94
CABLE SEAL
32
72230-98
SOCKET HOUSING 3-WAY
32
69558-04A
MAIN WIRING HARNESS (CONTINUED)
33
72231-98
SOCKET LOCK SECONDARY 3-WAY
34
72242-94
TERMINAL RING
35
72249-94
HEAT SHRINK
36
72260-04
HOUSING 1-WAY
37
72263-95
CONNECTOR 4-WAY
38
72280-95
SOCKET HOUSING 3-WAY
39
72289-04
TERMINAL FEMALE, 10-12 AWG
40
72290-94
TERMINAL FEMALE, 18-20 GAUGE
41
72291-94
TERMINAL FEMALE, 14-16 GAUGE
42
72295-94
HOUSING STARTER CONNECTION
43
72330-95
FUSE 15 AMP.
44
72405-98GN
WIRE ASSEMBLY PUSH ON CONNECTOR, RIGHT ANGLE.
45
72427-00
Терминал
46
72430-00
FUSE BLOCK
47
72432-00
FUSE BLOCK
48
72434-00
TERMINAL #14-16 AWG
49
72516-01
Пылезащитный колпачок
50
72914-01BK
SOCKET HOUSING 4-WAY (BLACK)
51
72991-01
TERMINAL SOCKET
52
73104-96BK
PIN HOUSING 4-PLACE (BLACK)
53
73106-96BK
PIN HOUSING 6-PLACE (BLACK)
54
73108-96BK
PIN HOUSING 8-PLACE (BLACK)
55
73190-96
TERMINAL PIN 20-16 GAUGE
56
73301-04
HOUSING FEMALE 2-WAY
57
73303-04
SECONDARY LOCK FEMALE, 2-WAY
58
73304-04
Терминал
59
73305-04
Уплотнение
60
74109-98BK
HOUSING 12-WAY
61
74112-98BK
HOUSING 2-WAY SOCKET (BLACK)
62
74149-98
PIN LOCK 12-WAY
63
74152-98
SECONDARY LOCK 2-WAY SOCKET
64
74190-98
TERMINAL PIN
65
74191-98
TERMINAL SOCKET
