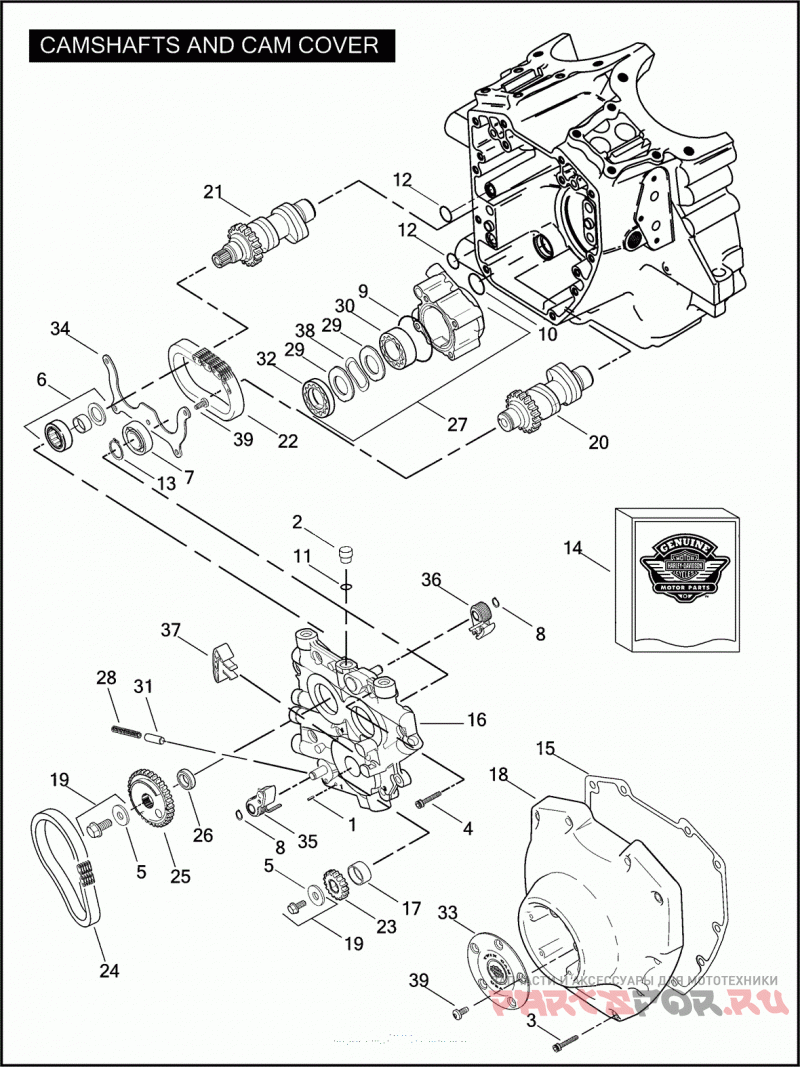

CAMSHAFTS AND CAM COVER - TWIN CAM 88 ™

Harley Davidson FXD 1GHV DYNA SUPER GLIDE (2005)

Harley Davidson
#oem кодцена
1
601
Палец
2
3290
Деталь PLUG CAM SUPPORT PLATE
3
4740A
Деталь SCREW 1/4-20 X 1-1/4 KNURLED HD., W/LOCKPATCH (GRADE 8)
4
4741A
Деталь SCREW 1/4-20 X 1 SOCKET HD., W/LOCKPATCH
5
6294
Деталь WASHER 3/8 X 1-1/8 X 7/32
6
8983
Деталь BEARING ASSEMBLY W/ BEARING ASSEMBLY, INNER RACE, WASHER BEARING & O-RING
7
8990A
Подшипник
8
11031
Стопорное кольцо
9
11286
Уплотнительное кольцо
10
11157
Уплотнительное кольцо
11
11298
Деталь O-RING VITON
12
11301
Уплотнительное кольцо
13
11494
Стопорное кольцо
14
17045-99D
Деталь GASKET KIT CAM SERVICE
14
25284-11
Деталь KIT-CAM PLATE,HYBRID,W/HI-VOL OILPMP
15
25244-99A
Деталь GASKET CAM COVER
16
25284-11
Деталь KIT-CAM PLATE,HYBRID,W/HI-VOL OILPMP
17
25344-99
Деталь BUSHING CRANKSHAFT
18
25367-01B
Деталь CAM COVER (SILVER)
19
25533-99A
Деталь CAM DRIVE SPROCKET RETENSION KIT W/ 6294 & SCREWS
20
25534-99
Деталь CAMSHAFT FRONT (STAMPED A)
21
25544-00
Деталь CAMSHAFT REAR (STAMPED A)
22
25607-99
Деталь CHAIN SECONDARY CAM DRIVE
23
25609-99
Деталь SPROCKET CAM DRIVE ON CRANKSHAFT,17-TOOTH
24
25610-99
Деталь CHAIN PRIMARY CAM DRIVE
25
25716-99
Деталь SPROCKET CAM DRIVE, 34-TOOTH
26
25938-00
Деталь SPACER KIT
26
25717-00
Деталь SPACER CAM DRIVE SPROCKET ALIGNMENT 0.327 INCH THICK (USE AS REQUIRED)
26
25719-00
Деталь SPACER CAM DRIVE SPROCKET ALIGNMENT 0.317 INCH THICK (USE AS REQUIRED)
26
25721-00
Деталь SPACER CAM DRIVE SPROCKET ALIGNMENT 0.307 INCH THICK (USE AS REQUIRED)
26
25722-00
Деталь SPACER CAM DRIVE SPROCKET ALIGNMENT 0.287 INCH THICK (USE AS REQUIRED)
26
25723-00
Деталь SPACER CAM DRIVE SPROCKET ALIGNMENT 0.297 INCH THICK (USE AS REQUIRED)
26
25725-00
Деталь SPACER CAM DRIVE SPROCKET ALIGNMENT 0.337 INCH THICK (USE AS REQUIRED)
27
26035-99B
Деталь OIL PUMP ASSEMBLY W/ BODY, BOTH GEROTOR ASSEMBLY AND SEPARATOR PLATE
28
26210-99
Деталь SPRING RELIEF VALVE
29
26248-00
Деталь SEPARATOR PLATE GEROTOR
30
26255-00
Деталь GEROTOR ASSEMBLY SCAVENGE
31
26400-82B
Деталь RELIEF VALVE OIL PUMP
32
26464-99
Деталь GEROTOR ASSEMBLY PRESSURE
33
32543-99
Деталь COVER TIMER COVER
34
35060-00
Деталь PLATE BEARING RETAINING
35
39954-99A
Деталь CHAIN TENSIONER PRIMARY CAM DRIVE CHAIN
36
39964-99A
Деталь CHAIN TENSIONER SECONDARY CAM DRIVE CHAIN
37
39965-99
Направляющая цепи
38
40323-00
Деталь SPRING SEPARATOR
39
68042-99
Деталь SCREW NO. 8-32 X 3/8 TORX HD.
