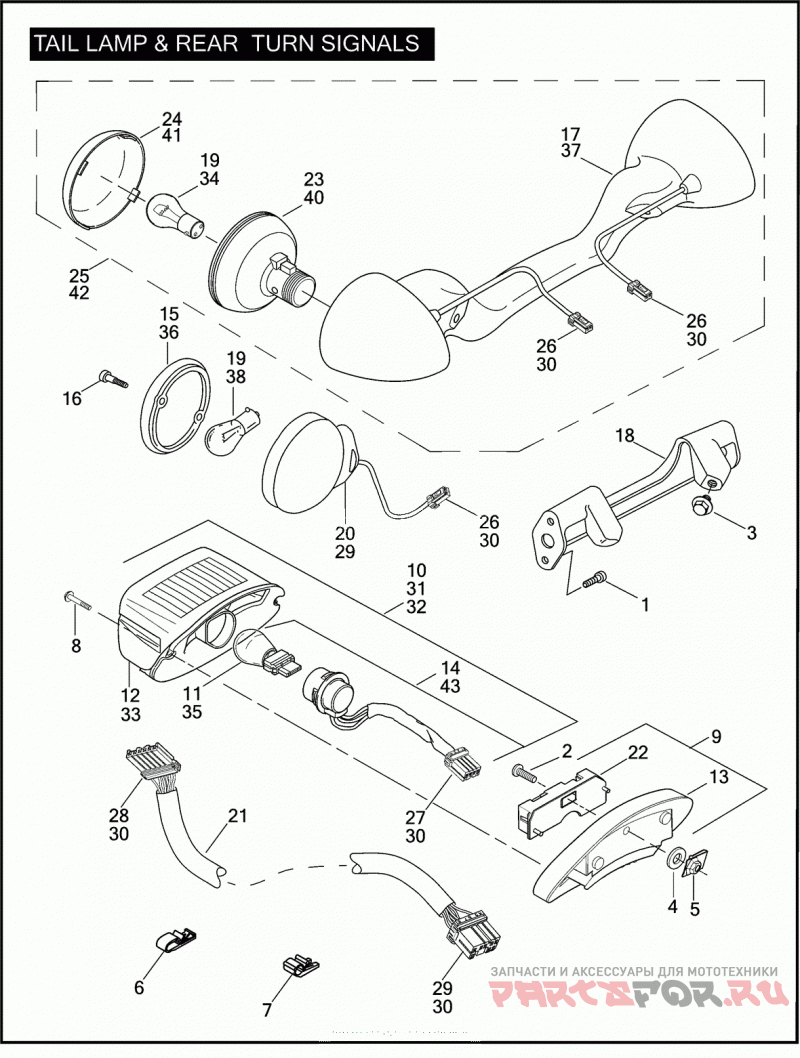

TAIL LAMP & REAR TURN SIGNALS

Harley Davidson FLTRI 1FSW ROAD GLIDE (2005)

Harley Davidson
#oem кодцена
2
3022A
SCREW 1/4-20 X 5/8 SOCKET FILLISTER HD., W/LOCKPATCH
4
6701
WASHER 3/8 X 13/16 X 1/16
5
7964
J-NUT
6
10183
CLIP T-STUD
7
10184
CLIP T-STUD
8
68026-99
SCREW NO. 8-32 X 1 PHILLIPS PAN HD. (STAINLESS)
9
68066-99A
TAIL LAMP BASE ASSEMBLY W/ 68296-99A & 68830-99A
10
68140-04
LIGHT ASSEMBLY TAIL LAMP, W/ 68369-03 & 68370-03
11
68167-04
BULB TAIL LAMP, WEDGE MOUNT
12
68369-03
LENS TAIL LAMP, W/ 68026-99
13
68296-99A
TAIL LIGHT BASE (CHROME)
14
68370-03A
SOCKET ASSEMBLY BULB, TAIL LAMP, W/ 68167-04, 73154-96BK & 73191-96
17
68508-04
BRACKET REAR TURN SIGNAL BAR
19
68572-64B
BULB REAR TURN SIGNAL
21
68772-99
HARNESS REAR LAMPS
22
68830-99A
CIRCUIT BOARD & COVER
23
68905-00
SOCKET ASSEMBLY REAR TURN SIGNAL
24
68973-00
LENS REAR TURN SIGNAL
25
69197-04
LAMP ASSEMBLY REAR TURN SIGNAL, W/ 68508-04, 68572-64B, 68905-00, 68973-00, 73152-96BK & 73191-96
26
73152-96BK
SOCKET HOUSING 2-PLACE
27
73154-96BK
SOCKET HOUSING 4-PLACE
28
73156-96BK
SOCKET HOUSING 6-PLACE
29
73158-96BK
SOCKET HOUSING 8-PLACE
30
73191-96
CONTACT SOCKET 16-20 GAUGE
31
68141-04
LAMP ASSEMBLY TAIL LAMP, W/ 68372-03 & 68187-03A (HDI)
33
68558-03
LENS TAIL LAMP, W/ 68026-99 (HDI)
34
68163-84
BULB TURN SIGNAL (HDI)
35
68167-88
BULB TAIL LAMP, WEDGE MOUNT (HDI)
37
68508-04
BRACKET REAR TURN SIGNAL BAR (HDI)
41
68973-00
LENS TURN SIGNAL (HDI)
42
68997-04
LAMP ASSEMBLY REAR TURN SIGNAL, W/ 68163-84, 68508-04, 68907-00, 68973-00, 73152-96BK & 73191-96 (HDI)
43
69187-03A
SOCKET ASSEMBLY BULB, TAIL LAMP, W/ 68167-88, 73154-96BK & 73191-96 (HDI)
