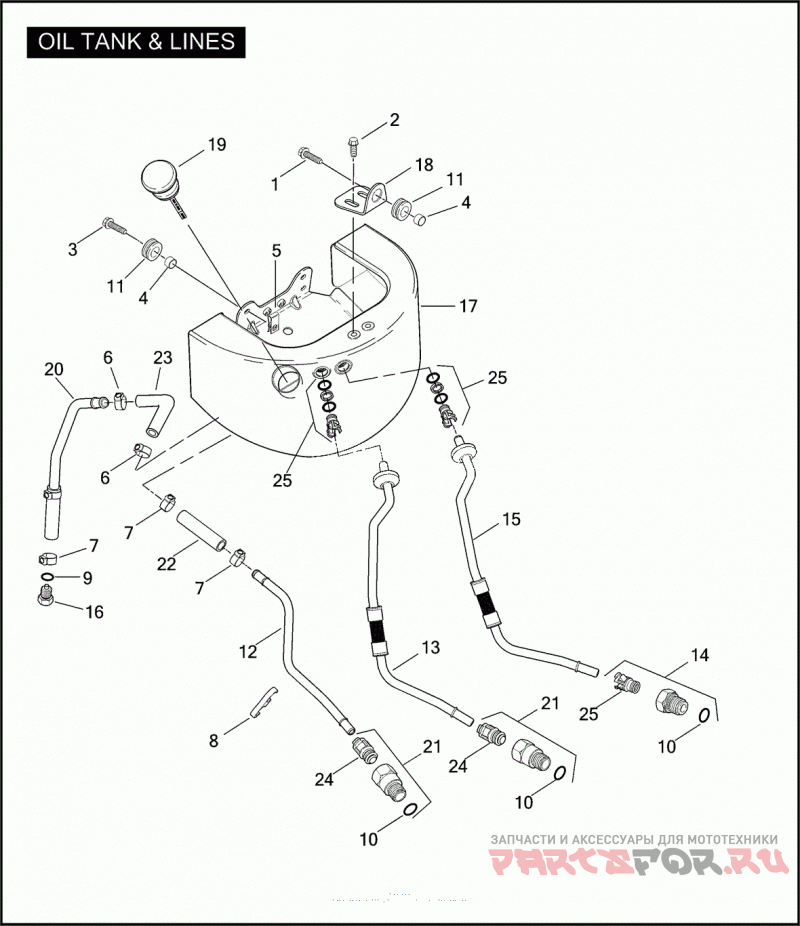

OIL TANK & LINE

Harley Davidson FLSTFSE 1PLF CVO FAT BOY (2005)

Harley Davidson
#oem кодцена
1
4206
SCREW 3/16-18 X 1 HEX HD.
2
4216
SCREW 5/16-18 X 7/8 HEX FLANGE HD. (GRADE 5)
3
4217
SCREW 5/16-18 X 1.0 HEX FLANGE HD. (GRADE 5)
4
5775
WASHER 11/32 X 1/2 X 31/64
5
8102
SPEEDNUT 5/16-18
6
10080
CLAMP DRAIN HOSE
7
10208
Зажим
8
10216
CLIP OIL LINES
9
11105
Уплотнительное кольцо
10
11326
Уплотнительное кольцо
11
11447
Уплотнитель резиновый
12
33525-00
OIL LINE FEED
13
33531-00
OIL LINE RETURN
14
45468-00
CONNECTOR ASSEMBLY VENT
15
45806-07
OIL LINE VENT
16
60348-65B
DRAIN PLUG KIT W/ O-RING
17
62498-00A
OIL TANK W/ 8102 (CHROME)
18
62769-00A
BRACKET OIL TANK TOP
19
62845-00A
FILLER CAP W/ DIPSTICK
20
63553-00B
HOSE OIL TANK DRAIN
21
63601-00
CONNECTOR ASSEMBLY OIL LINE
22
63611-00
HOSE OIL FEED
23
63628-00
ELBOW OIL DRAIN
24
63632-00
OIL LINE RETAINER ASSEMBLY
25
63783-00
OIL LINE RETAINER ASSEMBLY
