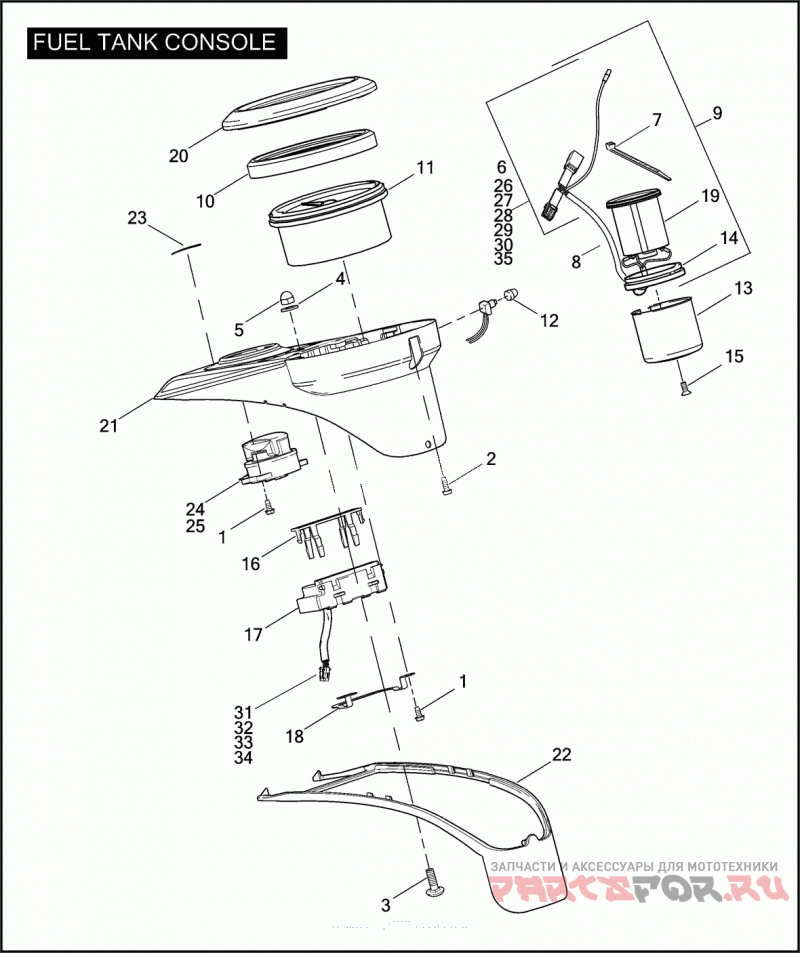

FUEL TANK CONSOLE

Harley Davidson FLSTFSE 1PLF CVO FAT BOY (2005)

Harley Davidson
#oem кодцена
1
2501A
SCREW NO. 8-32 X 3/8 HEX HD., SELF-TAPPING
2
2523
SCREW NO. 8-32 X 1/2 HEX HD., SELF-TAPPING
3
5419
BOLT 5/16-18 X 1-3/4 CARRIAGE
4
6771A
WASHER 5/16 X 1/2 X 1/16
5
7549A
ACORN NUT 5/16-18 X 9/16 X 1/2
6
9856
TERMINAL RING
7
10065
CABLE STRAP
8
52425-98
BULB REPLACEMENT
9
67201-04A
TACHOMETER ASSEMBLY (METAL FACE)
10
67223-00A
SEAL SPEEDOMETER
11
67313-05A
SPEEDOMETER (MPH)
11
67315-05
SPEEDOMETER (KPH)
12
67880-94
BOOT RESET SWITCH
13
67925-04
HOUSING TACHOMETER
14
67952-96
GASKET ISOLATION
15
67956-96
SCREW 1/4-20 X 3/4 SOCKET FLAT HD.
16
68112-99A
BEZEL INDICATOR LIGHT
17
68113-99C
HOUSING ASSEMBLY W/ LED LIGHTS, ELECTRICAL CONNECTOR & BEZEL
18
68170-05
BRACKET INDICATOR LIGHT MOUNTING
19
69074-04A
TACHOMETER (ALUMINUM FACE)
20
71006-05
BEZEL SPEEDOMETER (CHROME)
21
71259-05
INSTRUMENT PANEL (CHROME)
22
71261-05
TRIM INSTRUMENT PANEL
23
71262-05
PLATE IGNITION SWITCH
24
71313-96A
IGNITION SWITCH (SPECIFY KEY CODE)
25
71450-04
LOCKSET COMPLETE W/ KEYS, IGNITION SWITCH AND FORK LOCK
26
71757-05
WIRE HARNESS TACHOMETER W/ 6, 7, 27, 28, 29, 30 & 35
27
73104-96BK
HOUSING PIN 4-WAY (BLACK)
28
73154-96BK
HOUSING SOCKET 4-WAY (BLACK)
29
73190-96
TERMINAL PIN #16-20 AWG
30
73191-96
TERMINAL SOCKET #16-20 AWG
31
74118-98BK
SOCKET HOUSING 8-WAY (BLACK)
32
74158-98
SECONDARY LOCK 8-WAY SOCKET
33
74193-98
SOCKET TERMINAL
34
74195-98
SEAL PIN
35
74196-04
TERMINAL SOCKET
