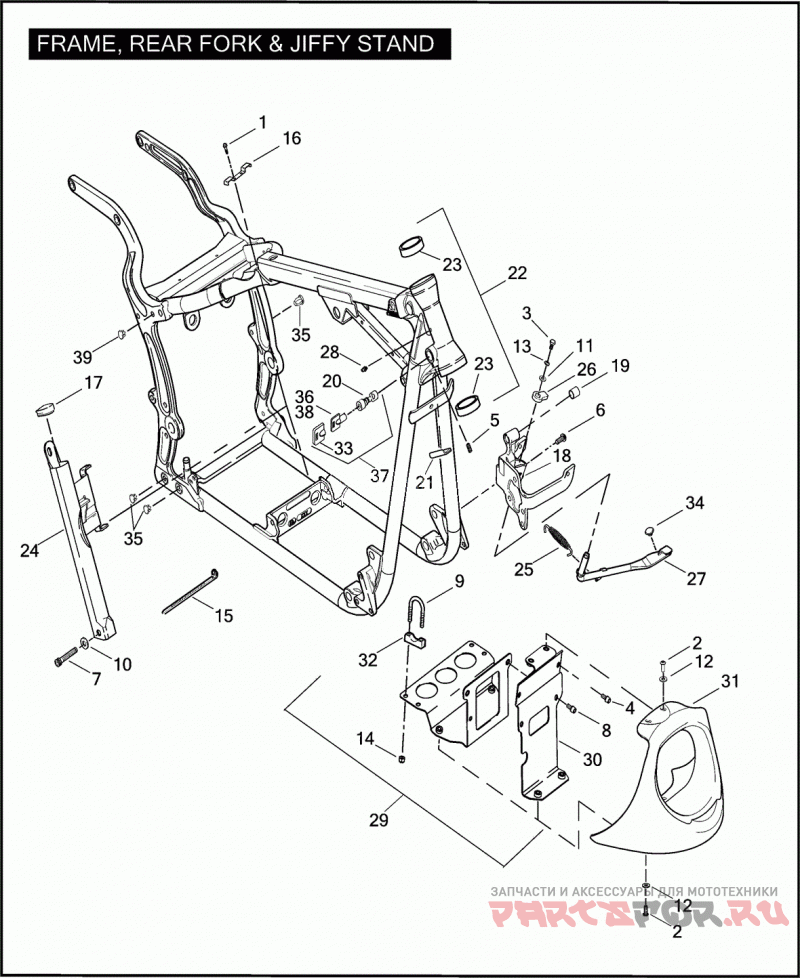

FRAME, REAR FORK & JIFFY STAND

Harley Davidson FLSTFSE 1PLF CVO FAT BOY (2005)

Harley Davidson
#oem кодцена
1
939
SCREW 1/4-20 X 1 SELF-TAPPING, W/WASHER (GRADE 2)
2
940
SCREW 1/4-20 X 3/4 TORX BUTTON HD.
3
2882W
SCREW 5/16-18 X 5/8 HEX HD. (GRADE 5)
4
2941
SCREW 1/4-20 X 35/64 SOCKET HD., SELF-TAPPING (GRADE 5)
5
3233
SCREW 1/4-28 X 1/4 SOCKET HD.
6
4266A
SCREW 3/8-16 X 7/8 BUTTON HD. (GRADE 5)
7
4311
SCREW 3/8-16 X 1-5/8 SOCKET HD.
8
4740A
SCREW 1/4-20 X 1-1/4 KNURLED HD., W/LOCKPATCH (GRADE 8)
9
5228
Болт
10
6400HB
WASHER 5/16 X 13/16 X 3/32
11
6702
WASHER 5/16 X 11/16 X 1/16
12
6703
WASHER 1/4 X 5/8 X 1/16
13
7041
LOCKWASHER 5/16
14
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
15
10006
CABLE STRAP
15
10065
CABLE STRAP KEYS
16
10193
WIRE CLAMP
17
31741-00
PLUG SEAT POST
18
33670-03A
MOUNT ASSEMBLY JIFFY STAND, SHIFT LEVER & FOOTREST (CHROME)
19
33708-94
BEARING SLEEVE
20
45680-90
FORKLOCK (SPECIFY KEY CODE)
21
46288-04A
PROTECTOR STEERING HEAD
22
47173-05BGO
FRAME W/ 48315-60 (LEAFY ALUMINUM)
22
47173-05BKO
FRAME W/ 48315-60 (CANDY COBALT)
22
47173-05BSL
FRAME W/ 48315-60 (ELECTRIC CHERRY)
23
48315-60
BEARING CUP
24
48895-04BKO
POST ASSEMBLY SEAT (CANDY COBALT)
25
50005-85A
SPRING JIFFY STAND LEG
26
50015-74A
LEG STOP
27
50087-89B
LEG JIFFY STAND (CHROME)
28
83459-09
FITTING lubrication
29
57041-01A
KIT-SPOILER MOUNTING W/ 4740A, 5228, 7686, 57043-01, 58445-00 & FAIRING BRACKET
30
57043-01
BRACKET REGULATOR MOUNT
31
57101-01
FAIRING CHIN (CHROME)
32
58445-00
BLOCK MOUNTING
33
61081-92
COVER KEY HEAD SET
34
62123-66A
Амортизатор ударов
35
68446-00
Заглушка
36
71031-04
KEY KIT DECO
37
71450-04
LOCKSET
39
90469-94
PLUG FRAME
39
91625-04
COVER KIT MOTORCYCLE (NOT ILLUSTRATED)
