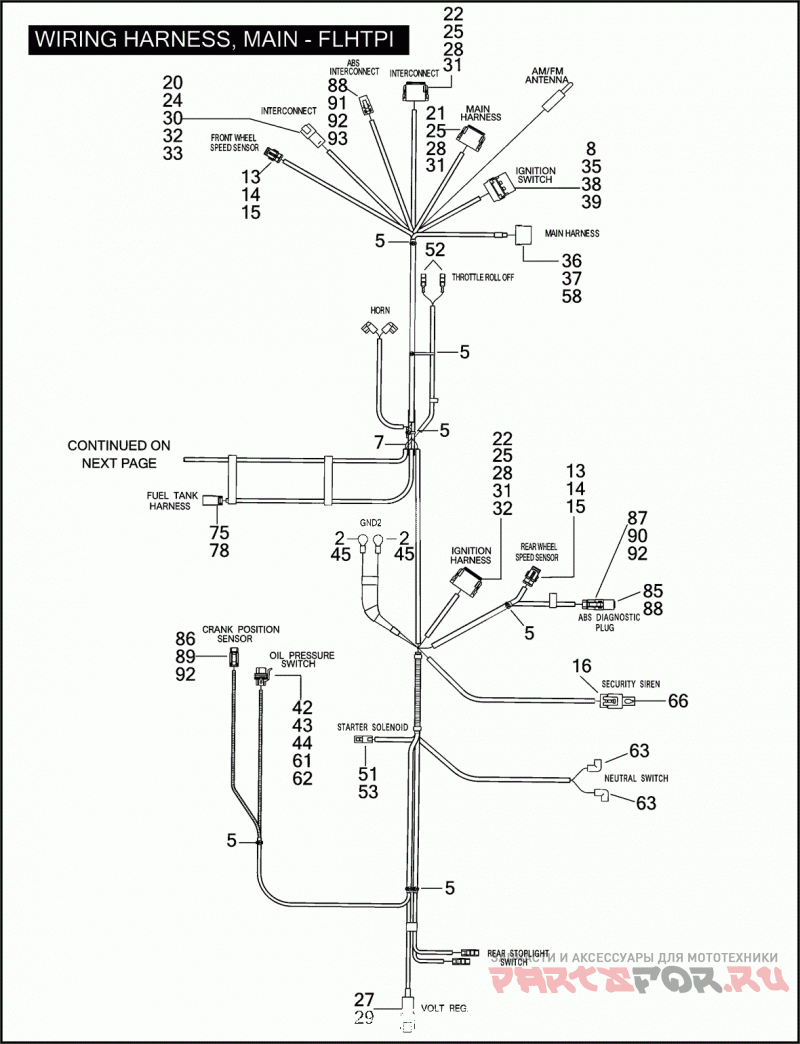

WIRING HARNESS, MAIN - FLHTPI

Harley Davidson FLHTPI 1FMW ELECTRA GLIDE STANDARD POLICE (2005)

Harley Davidson
#oem кодцена
70985-05
MAIN WIRING HARNESS (NON-ABS)
70269-05
MAIN WIRING HARNESS (ABS)
1
9819
TERMINAL RING 1/4 INCH (ABS)
2
9825
TERMINAL RING
3
9842
TERMINAL 1/4 INCH RING, #10-12 GAUGE
4
9937
TERMINAL FEMALE, SPADE 1/4 INCH SLOT
5
10065
CABLE STRAP (NON-ABS)
6
10073
CABLE STRAP
7
10136
ANCHOR T-STUD
8
10147
CLIP CONNECTOR
9
10177
CABLE STRAP TREE MOUNT
10
10277
CLIP HARNESS MOUNT (ABS)
11
31504-91B
RELAY WITH DIODE
12
31586-07
RELAY
13
72006-05
TERMINAL SOCKET, #16-20 GAUGE (ABS)
14
72007-05
SOCKET HOUSING 2-WAY (ABS)
15
72011-05
WIRE SEAL #16-20 GAUGE (ABS)
16
72033-93
TERMINAL SOCKET, #16-20 GAUGE
17
72046-79
INSULATOR SPADE TERMINALS
18
72100-04
HOUSING MALE, 1-WAY
19
72104-94BK
RECEPTACLE 4-WAY PIN (BLACK)
20
72106-94BK
PIN HOUSING 6-WAY (BLACK) (REPLACES GRAY CONNECTOR)
21
72119-94BK
PLUG 12-WAY SOCKET, W/ 72179-94 (BLACK)
22
72139-94GY
SOCKET HOUSING 12- WAY, SEALED, W/ 72179-94 (GRAY)
23
72144-94
PIN LOCK SECONDARY, 4-WAY
24
72146-94
PIN LOCK SECONDARY 6-WAY
25
72159-94
SOCKET LOCK SECONDARY, 12-WAY
26
72164-94A
WEATHER PLUG
27
72170-01
TERMINAL PIN, #8-10 GAUGE
28
72179-94
SEAL INTERNAL
29
72182-01
PIN HOUSING 1-WAY
30
72190-94
TERMINAL PIN
31
72191-94
TERMINAL SOCKET
32
72195-94
SEAL PIN
33
72199-94
ANCHOR CONNECTOR
34
72204-04
FUSE BLOCK
35
72205-94
CONNECTOR PLUG, 4-WAY
36
72206-94
CONNECTOR RECEPTACLE, 4-WAY
37
72207-94
TERMINAL FEMALE, #14 GAUGE
38
72208-94
TERMINAL MALE, #12 GAUGE
39
72210-94
TERMINAL MALE, #14-16 GAUGE
40
72211-94
CONNECTOR 10-WAY
41
72212-94
SOCKET LOCK SECONDARY
42
72213-94
TERMINAL FEMALE, #18-20 GAUGE
43
72214-94
SEAL CABLE
44
72232-96
PLUG SEAL (RED)
45
72249-94
HEAT SHRINK TUBE (NON-ABS)
46
72260-04
HOUSING FEMALE, 1-WAY (GRAY)
47
72265-04
SECONDARY LOCK
48
72279-04
TERMINAL FEMALE
