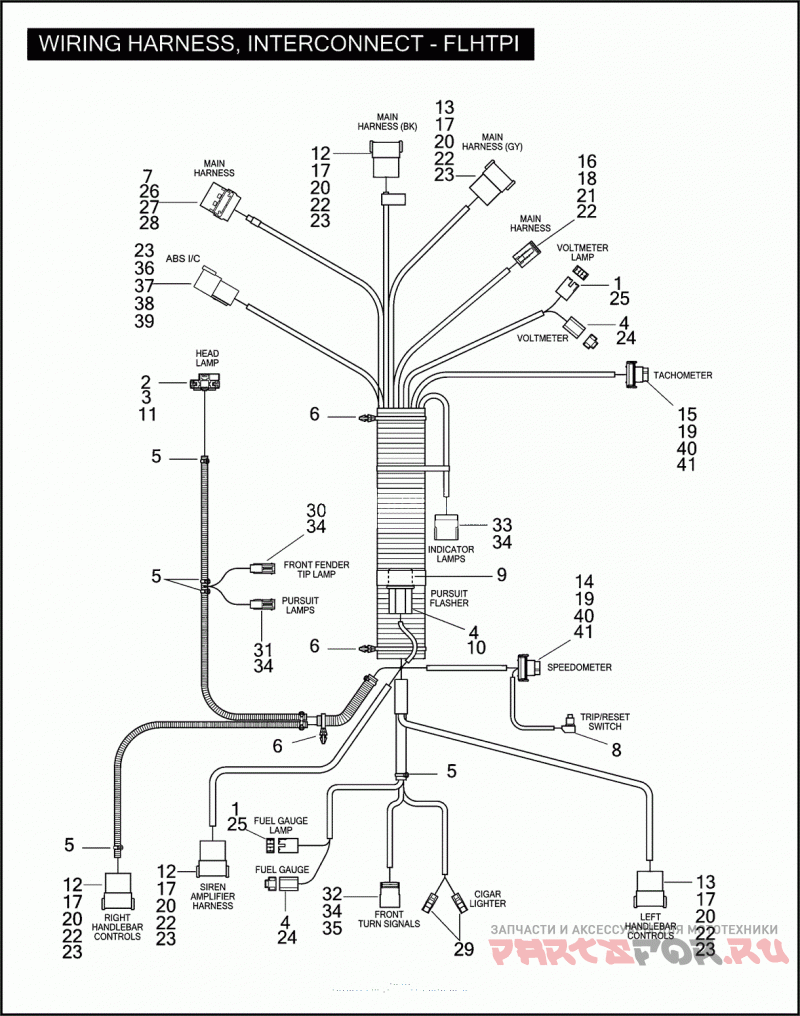

WIRING HARNESS, INTERCONNECT - FLHTPI

Harley Davidson FLHTPI 1FMW ELECTRA GLIDE STANDARD POLICE (2005)

Harley Davidson
#oem кодцена
69552-05
WIRING HARNESS INTERCONNECT
1
9839
TERMINAL POSITIVE LOCK
2
9847
TERMINAL FEMALE SPADE
3
9848
TERMINAL FEMALE SPADE
4
9937
TERMINAL FEMALE SPADE, 1/4 INCH SLOT
5
10065
CABLE STRAP
6
10073
CABLE STRAP
7
10147
CLIP MOUNTING, ROSEBUD
8
67854-98
SWITCH ASSEMBLY TRIP/RESET
9
68563-04A
RELAY/FLASHER
10
72046-79
INSULATOR SPADE TERMINALS
11
72056-92
CONNECTOR SPADE TERMINAL, 3-WAY
12
72109-94BK
PIN HOUSING 12-WAY (BLACK)
13
72129-94GY
PIN HOUSING 12-WAY (GRAY)
14
72130-04
SOCKET HOUSING 12-WAY (BLACK)
15
72131-04
SOCKET HOUSING 12-WAY (GRAY)
16
72116-94BK
SOCKET HOUSING 6-WAY (BLACK) (REPLACES GRAY CONNECTOR)
17
72149-94
PIN LOCK SECONDARY, 12-WAY
18
72156-94
SOCKET LOCK SECONDARY 6-WAY
19
72189-04
SEAL PLUG
20
72190-94
TERMINAL PIN
21
72191-94
TERMINAL SOCKET, #16-18 GAUGE
22
72195-94
SEAL PIN
23
72199-94
ATTACHMENT CLIP
24
72200-94A
CONNECTOR 3-WAY
25
72203-96
CONNECTOR 2-WAY
26
72205-94
CONNECTOR PLUG, 4-WAY
27
72208-94
TERMINAL MALE, #12 GAUGE
28
72210-94
TERMINAL MALE, #14-16 GAUGE
29
72290-94
TERMINAL 1/4 INCH FEMALE
30
73102-96BK
PIN HOUSING 2-WAY (BLACK)
31
73102-96WE
PIN HOUSING 2-WAY (WHITE)
32
73106-96BK
PIN HOUSING 6-PLACE (BLACK)
33
73110-96BK
PIN HOUSING 10-PLACE (BLACK)
34
73190-96
TERMINAL PIN #20-16 GAUGE
35
73196-96
ANCHOR T-STUD
36
74106-98BK
PIN HOUSING 6-WAY (BLACK)
37
74146-98
SECONDARY LOCK 6-WAY
38
74190-98
TERMINAL PIN
39
74195-98
SEAL PIN
40
74196-04
TERMINAL SOCKET #20 GAUGE
41
74197-04
SECONDARY LOCK 12-WAY SOCKET
